ADSS Fiber Optic Cable

Name: ADSS Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 795352495
Availability: InStock
Rating: 4.3 (94 reviews)

Price:	US $ 0.55-0.65/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ADSS
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	Fiber Optic Cable
Brand:	OEM or Geyida

Product Description

Description

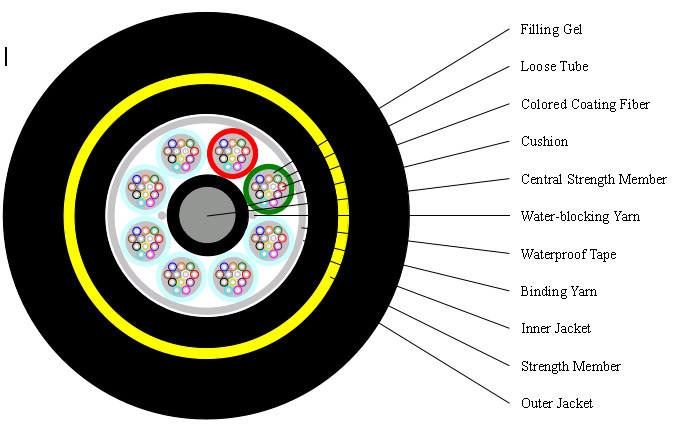

ADSS cable is loose tube stranded. Fibers, 250 um, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes(and fillers) are stranded around a FRP(Fiber Reinforce Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE(polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT(anti-tracking) outer sheath.

Features
Can be installed without shutting off the power
Excellent AT performance. The maximum inductive at the operating point of AT sheath can reach 25KV
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props
Large span lengths and the largest span is over 1000m
Good performance of tensile strength and temperature
The design life span is 30 years

Options:
Fiber Type:G.652, G.655 or 6.657 single-mode fiber. A1a or A1b, OM3 or OM4 mufti-mode fiber, or other types of fiber;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1 km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.

Items	Unite	Specifications
Max. Tension Load	N	Installation:6300
Crush Resistance	N/10cm	1000
() Min. Bend Radius(Dynamic)	mm	20D
() Min. Bend Radius(Static)	mm	10D
Installation Temperature		-30~+60
Operating Temperature		-40~+85
Storage Temperature		-40~+85

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
