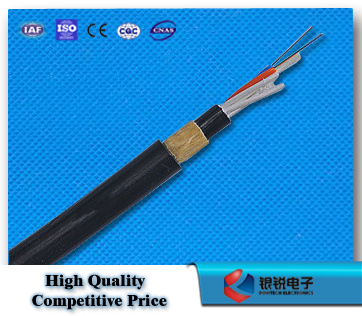

ADSS Fiber Optical Cable 48 Core
| Price: |
US $ 0.5/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ADSS-48B1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Span: |
100m |
| Rts: |
4kn |
| Application: |
Communication |
| Certification: |
CCC |
| Brand: |
Optelec |
| Sheath Material: |
PE |
Product Description
ADSS fiber optical cable 48 Core
Description:ADSS cable is the short form for All-dielectric Self-supporting Optical Cable. ADSS fiber optic cable is loose tube stranded;

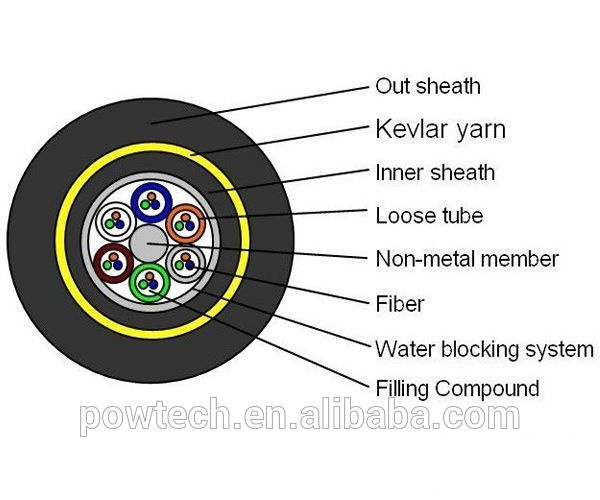

Structure:
1. Optical fiber cable
2. Fiber jelly
3. PBT loose tube
4. Filling compound
5. Central strength member FRP
6. Filling rope
7. PE inner sheath
8. Aramid yarn
9. Outer sheath
Notes: The use of power corrosion resistant sheaht is depended on power of ADSS optical fiber cable
PE shealth is used when power is less than or equal to 12KV;
Power corrosion resistant sheath (AT sheath) is used when power is more than 12KV.
ADSS Cable laying mode: Self supporting overhead
ADSS Cable operation temperature: -40C~ +65 degreeC

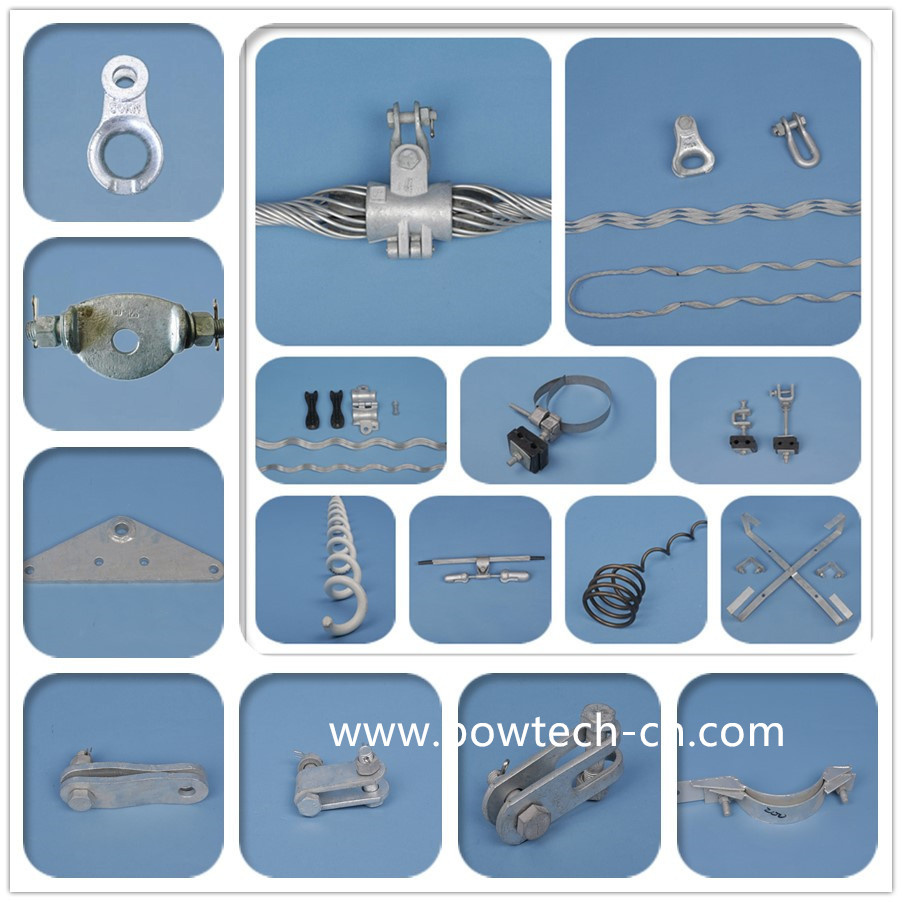

Related Product:

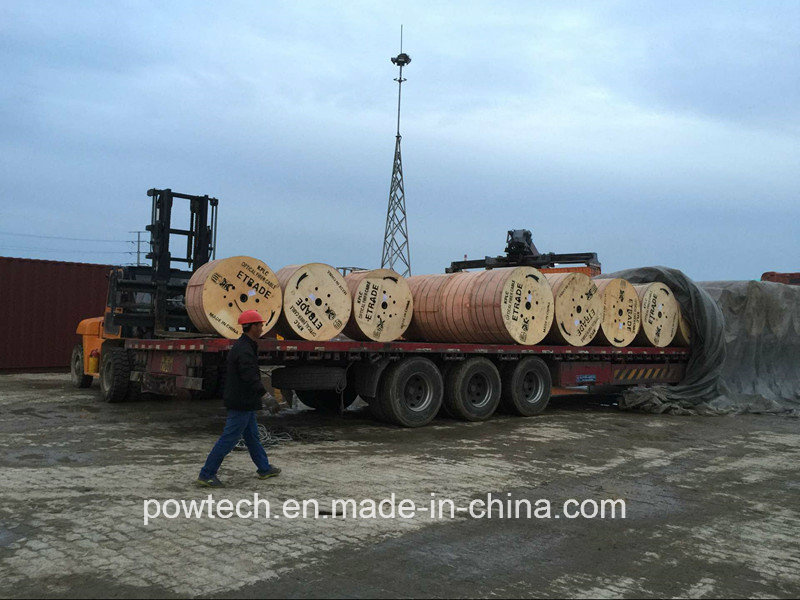

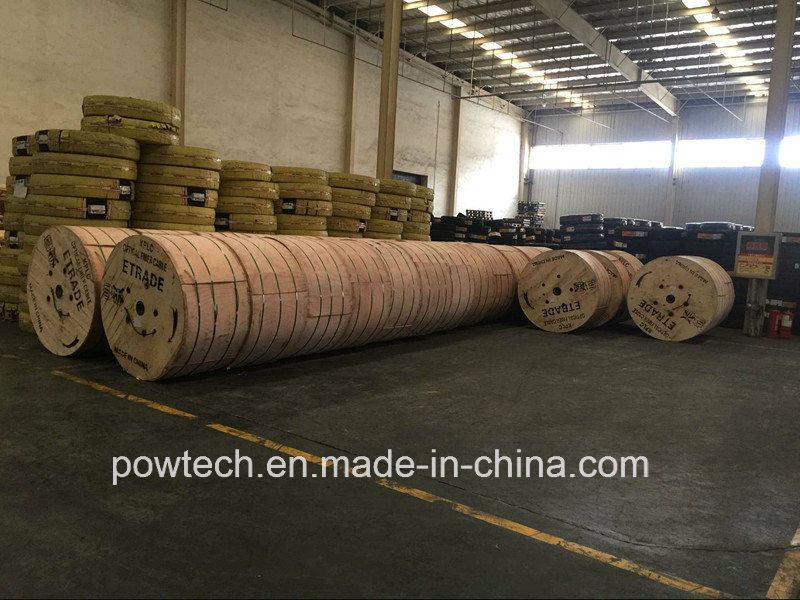

Package&Shipment:
Main Application:Used mainly in areas with high electrical field strength in power communication transmission system, or areas suffered from frequent lightning.

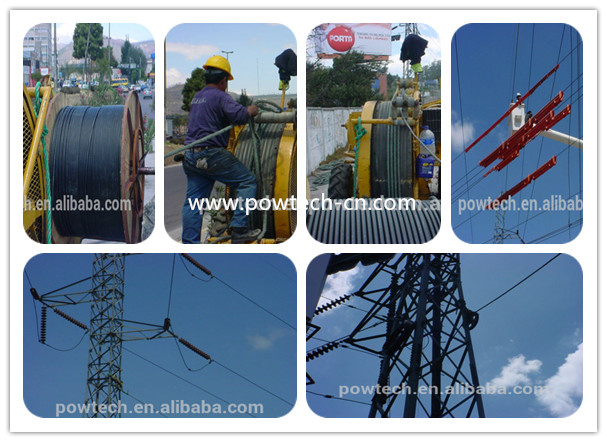

Installation Guide:
Feature:1. Low attenuation, low dispersion Proper design and precise excess length control make the cable have outstanding
2. Mechanical and environmental performance.
3. Non-metallic construction makes the cable resist the electromagnetic interference well.
4. High strength aramid yarn as strength member ensures high tensile resistance, small diameter and light weight of the cable, fitting for different weather conditions and different installation spans.
5. Special AT outer sheath (optional) offers good electro-erosion resisting performance.
Technical data sheet:| Designation | Diameter (mm) | RTS(N) | MAT(N) | EDS(N) | Kg/km |
| 2~24 core | | | | | |
| ADSS-AT(PE)xx -4KN | 12.2 | 9698 | 3879 | 2425 | 121 |
| ADSS-AT(PE)xx -6KN | 12.5 | 14108 | 5643 | 3527 | 126 |
| ADSS-AT(PE)xx -9KN | 12.9 | 22928 | 9171 | 5732 | 135 |
| ADSS-AT(PE)xx -12KN | 13.3 | 30645 | 12258 | 7661 | 143 |
| ADSS-AT(PE)xx -15KN | 13.6 | 37260 | 14904 | 9315 | 149 |
| ADSS-AT(PE)xx -18KN | 13.9 | 44978 | 17996 | 11245 | 157 |
| ADSS-AT(PE)xx -21KN | 14.3 | 52695 | 21078 | 13174 | 164 |
| ADSS-AT(PE)xx -24KN | 14.6 | 60413 | 24165 | 15103 | 172 |
| ADSS-AT(PE)xx -26KN | 14.8 | 65925 | 26370 | 16481 | 177 |
| 26~36 core | | | | | |
| ADSS-AT(PE)xx -4KN | 12.8 | 9698 | 3879 | 2425 | 133 |
| ADSS-AT(PE)xx -6KN | 13.0 | 14108 | 5643 | 3527 | 138 |
| ADSS-AT(PE)xx -9KN | 13.4 | 22928 | 9171 | 5732 | 146 |
| ADSS-AT(PE)xx -12KN | 13.8 | 30645 | 12258 | 7661 | 154 |
| ADSS-AT(PE)xx -15KN | 14.1 | 37260 | 14904 | 9315 | 161 |
| ADSS-AT(PE)xx -18KN | 14.4 | 44978 | 17996 | 11245 | 168 |
| ADSS-AT(PE)xx -21KN | 14.7 | 52695 | 21078 | 13174 | 175 |
| ADSS-AT(PE)xx -24KN | 15.1 | 60413 | 24165 | 15103 | 183 |
| ADSS-AT(PE)xx -26KN | 15.3 | 65925 | 26370 | 16481 | 18 |
