Advanced HASL 0.5oz Double Sided Circuit Board
| Price: |
US $ 0.29-0.45/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Type: |
Combining Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
HB |
Product Description
Advanced HASL 0.5oz Double Sided Circuit Board
Products Description| Layer Count | 1 to 22 layer |
| Material Type | FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers.etc. |
| Board Thickness | 0.21mm to 7.0mm |
| Copper Thickness | 0.5 oz to 7.0 oz |
| Min. Line Width&Space | 3/3 mil |
| Min. Mechnical Hole | 0.15mm(0.8mm for Alu PCB) |
| Min.Solder Mask Dam | 0.075mm |
| Max.Aspect Ratio | 10:01 |
| PTH Size Tolerance | +/- 0.05mm |
| Impedance Control Tolerance | +/- 8% |
| Routing Tolerance | +/- 0.1mm |
| Electric Strength | >103KV/mm |
| Current Breakdown | 10A |
| Solder Mask Abrasion | >6H |
| Solder Mask Color | Green/Black/White/Red/Blue/Matt Blue/Matt Black |
| Silkscreen Color | Yellow/Black/White/ Orange/Grey |
| Surface Finishing | HASL / HASL lead free,OSP,
Tin Plating, Silver Plating
Immersion Silver/Tin, ENIG, Hard Gold plating |
| PCB Packing | Inner Packing :Vacuum Packing /Plastic bag
Outer Packing :Standard carton packing |
Double Sided Circuit Board Manufacturing CapabilitiesOur double sided circuit board manufacturing capabilities can meet almost 95% demand of customer requirements and actually we concentrated on this field for decades, so plant facilities have been advanced to high level and your intelligent manufacturing could be well handled here| Total Pad Size | Standard | Advanced |
| Capture Pad | Drill + 0.008 | Drill + 0.006 |
| Landing Pad | Drill + 0.008 | Drill + 0.006 |
| BC Mechanical Drill (Type III) | 0.008 | 0.006 |
| Laser Drill Size | 0.004-0.010 | 0.0025 |
| Material Thickness | 0.0035 | 0.0025 |
| Stacked Via | Yes | Yes |
| Type I Capabilities single & Double Deep | Yes | Yes |
| Type II Capabilities Buried Vias with Microvias | Yes | Yes |
| Type III Capabilities | Yes | Yes |
| Copper Filled Microvia | Yes | Yes |
| Smallest Copper Filled Microvia | 0.004 | 0.0025 |
| Copper Filled Microvia Aspect Ratio | 0.75:1 | 1:01 |
| Smallest Laser Microvia Hole Size | 0.004 | 0.0025 |
| Laser Via Aspect Ratio (Depth:Diameter) | 0.75:1 | c |

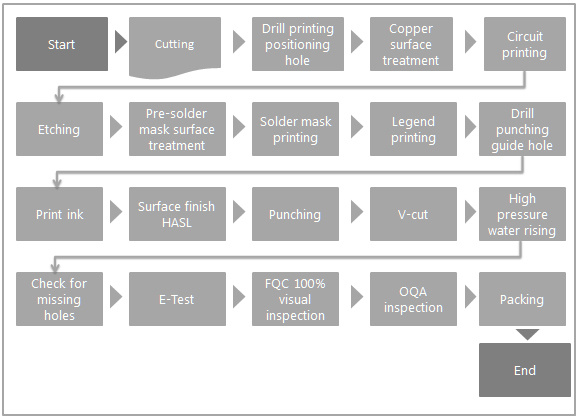

Double Sided Circuit Board Manufacturing Process
