Price: US $ 0.32-0.45/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Type: Combining Rigid Circuit Board
Dielectric: FR-4
Material: Fiberglass Epoxy Resin + Polyimide Resin
Flame Retardant Properties: HB

Product Description

First-class Reliable PCB Manufacturer China

Products Description
Layer Count1 to 22 layer
Material TypeFR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers.etc.
Board Thickness0.21mm to 7.0mm
Copper Thickness0.5 oz to 7.0 oz
Min. Line Width&Space3/3 mil
Min. Mechnical Hole0.15mm(0.8mm for Alu PCB)
Min.Solder Mask Dam0.075mm
Max.Aspect Ratio10:01
PTH Size Tolerance+/- 0.05mm
Impedance Control Tolerance+/- 8%
Routing Tolerance+/- 0.1mm
Electric Strength>103KV/mm
Current Breakdown10A
Solder Mask Abrasion>6H
Solder Mask ColorGreen/Black/White/Red/Blue/Matt Blue/Matt Black
Silkscreen ColorYellow/Black/White/ Orange/Grey
Surface FinishingHASL / HASL lead free,OSP,
Tin Plating, Silver Plating
Immersion Silver/Tin, ENIG, Hard Gold plating
PCB PackingInner Packing :Vacuum Packing /Plastic bag
Outer Packing :Standard carton packing

To Be the Best PCB Manufacturer in China, The Following Table is Our Manufacturing Capabilities
Total Pad SizeStandardAdvanced
Capture PadDrill + 0.008Drill + 0.006
Landing PadDrill + 0.008Drill + 0.006
BC Mechanical Drill (Type III)0.0080.006
Laser Drill Size0.004-0.0100.0025
Material Thickness0.00350.0025
Stacked ViaYesYes
Type I Capabilities single & Double DeepYesYes
Type II Capabilities Buried Vias with MicroviasYesYes
Type III CapabilitiesYesYes
Copper Filled MicroviaYesYes
Smallest Copper Filled Microvia0.0040.0025
Copper Filled Microvia Aspect Ratio0.75:11:01
Smallest Laser Microvia Hole Size0.0040.0025
Laser Via Aspect Ratio (Depth:Diameter)0.75:1c

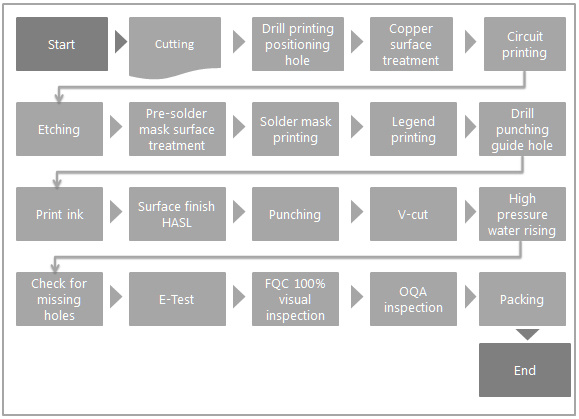

Our PCB Manufacturing Process as Following


About Us
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.
We are the leading PCB Manufacturer of the following big customers from all over the world.


NOD is ready to be the best PCB manufacturer in China, Just trust us and contact with us !!

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.

So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
