Adz-10gw21-1b Short Hinge Roller Lever Type Micro Switch with Certificate

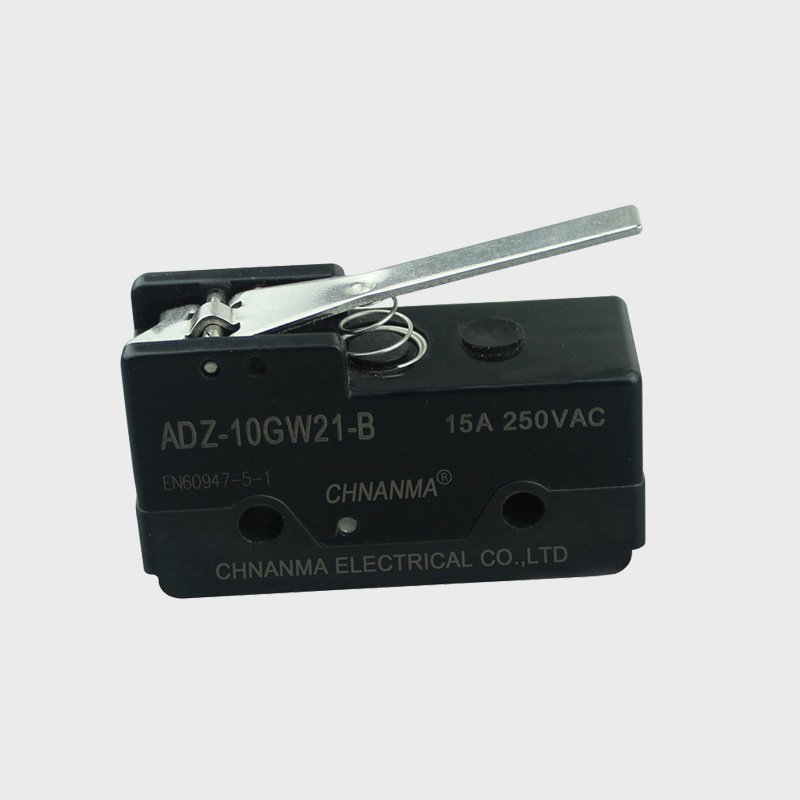

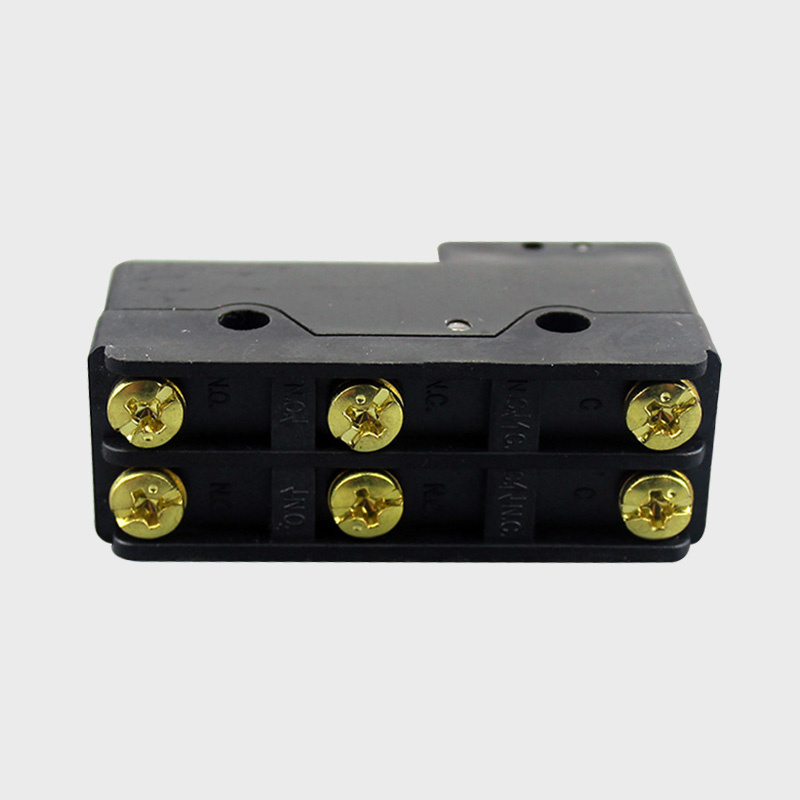

Name: Adz-10gw21-1b Short Hinge Roller Lever Type Micro Switch with Certificate
Brand: all-electronics-online.com
SKU: 727765432
Availability: InStock
Rating: 4.7 (28 reviews)

Price:	US $ 0.5-0.54/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ADZ-10GW21-1B
Pressing Type:	Lever Roller
Protection:	Dust-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Electronic Equipment
Brand:	Chnanma

Product Description

High switch on and off capacity(15A);
High accuracy;
Wide range of operation speed;
OP accuracy up to±0.4mm

Characterstics

Operation speed
Action frequency	Mechanical:240times/min
	Electrical:20times/min
Contact resistance	Under 15Ω(initial)
Insulation resistance	100mΩ above(500vdc)
Withstand voltage	Non-contact end:1000VAC,50/60HZ mintute
	Current parts and noncurrent parts and connect position:1,500VAC,50/60HZ for one mintue
Vibration	10 to 50HZ;1.5mm
Hitting	Machine:1,000m/sec2(about 100g,s)
	misoperation:300m/sec2(about 30g,s
Ambient temperature	-25ºC to +80ºC
Humidity	35%-85%RH
Life	Mechanical:1,000,000times above
	Electrical:500,000times above
Weight	about 30-50g
Protection structure	IP00 IEC Specification

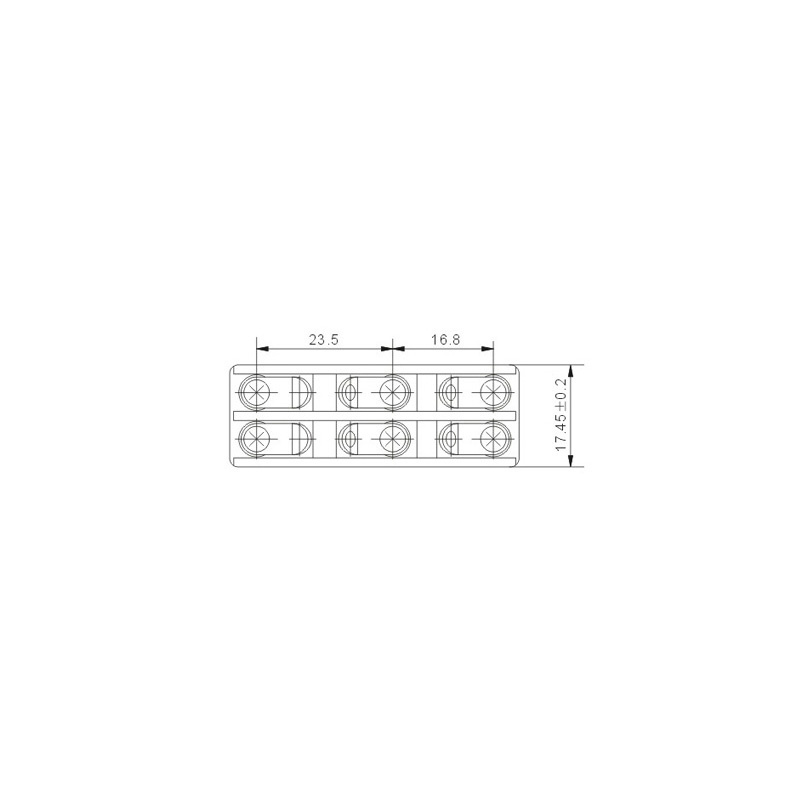

Dimensions/Operating Characteristics

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
