Ae3s Series IP65 Diffuse Sn 10cm Type Rectangular Photoelectric Sensor

Name: Ae3s Series IP65 Diffuse Sn 10cm Type Rectangular Photoelectric Sensor
Brand: all-electronics-online.com
SKU: 840374455
Availability: InStock
Rating: 4.4 (39 reviews)

Price:	US $ 2-15piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AE3S

Product Description

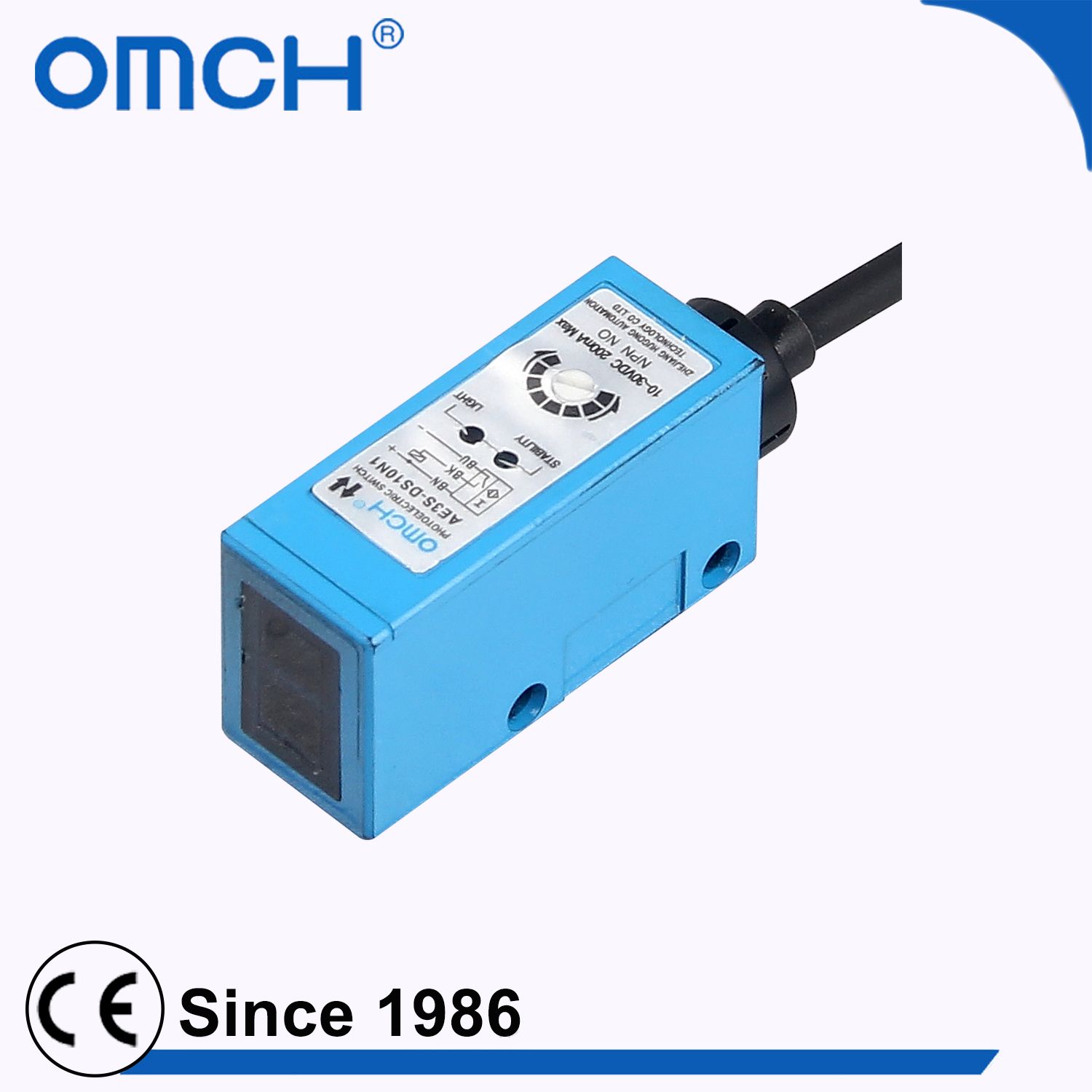

AE3S series IP65 Diffuse Sn 10cm type Rectangular Photoelectric sensor

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Newly added current over-load protection

Long service life, high reliability and strong resistance property to environment

Used in common places witch medium environment resistance

Red LED indicates that it's available to detect the sensor operating state

IP65 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

Dimension				15.5x21x41
Mounting way				Diffuse type	Feedback reflex type	Through beam type
Type	DC type	NPN	NO	AE3S-DS10N1	AE3S-R1N1	AE3S-2DN1-2L
			NC	AE3S-DS10N2	AE3S-R1N2	AE3S-2DN2-2L
			NO+NC
		PNP	NO	AE3S-DS10P1	AE3S-R1P1	AE3S-2DP1-2L
			NC	AE3S-DS10P2	AE3S-R1P2	AE3S-2DP2-2L
			NO+NC
	AC type	Two wire	NO
	AC type	Two wire	NC
Detection distance				10cm±10%	1m±10%	2m±10%
Set distance				Transparent/Opaque Object	Opaque Object	Opaque Object
Standard detection object				sensitivity adjuster	Fixed	Fixed
Response time				1ms	1ms	1ms

DelP2 distance:	10% below of the detection distance
Detection object	Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output	N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection structure	IP65 ICE specification
material	Housing: Nickel plated brass; Detection surface: ABS
