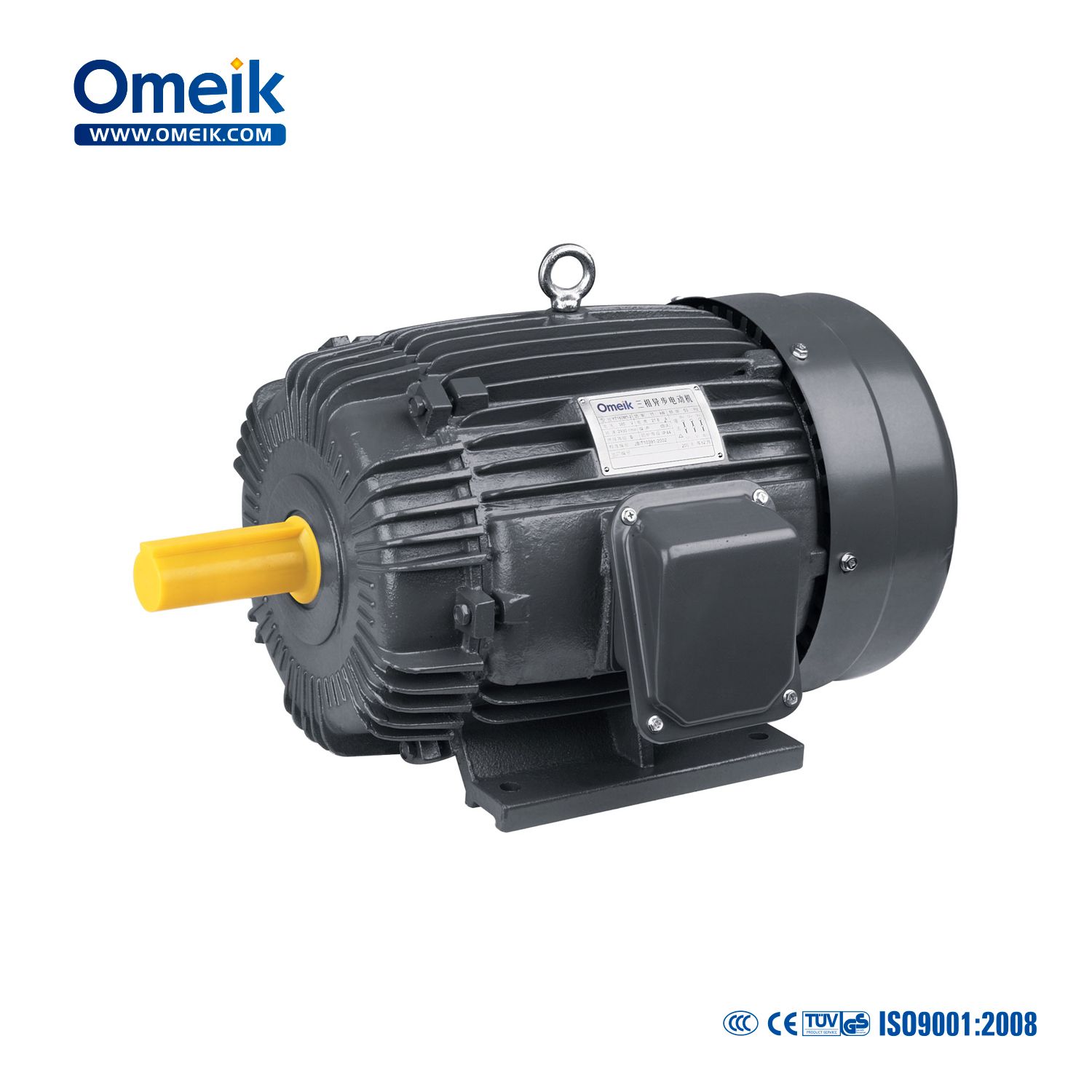

Aeef Series Three Phase Induction Motors

Name: Aeef Series Three Phase Induction Motors
Brand: all-electronics-online.com
SKU: 831812605
Availability: InStock
Rating: 4.6 (51 reviews)

Price:	US $ 46-50/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	AEEF802-4
Protection Class:	IP44,IP54
Working Duty:	S1
Wire:	100% Copper Wire
Housing:	Cast Iron
Certificate:	Ce
Number Of Stator:	Three-Phase
Function:	Driving
Speed:	3000rpm
Certification:	Ce/OEM
Brand:	Omeik/OEM

Product Description

Product Description
AEEF series motor is three-phase, totally enclosed and fan-cooled electric motor with squirrel cage, IP54 Insulation, Class B(other voltages and cycles or insulation Class F are available if request. )

BENEFITS:
1. Up to date design
2. Quiet operation and Corrosion resistant
3. Low noise, compact construction and light weight
4. Used as air compressors, pumps, fans, refrigerator, medical
5. Single /Three Phase Electric Motor with CE, ISO9001 Approved!
6. Best Factory Price, OEM
7. Competitive Price and Good after-sales service

OPERATING CONDITION:
1. Ambient temperature: -15 certificate≤ θ ≤ 40 certificate
2. Altitude: Not exceed 1000m
3. Cooling method: ICO141
4. Rated voltage: ± 5%

OUR ENTERPRISE SPRIIT:
The Market is the Core and The Quality is the Life.
We welcome worldwide merchants to join us for common development!

Type	Power		Voltage (V)	Current (A)	Speed (r/min)	Eff (%)	Power Factor	Starting torque Rated torque	Starting current Rated current	Max torque Rated torque
Type	HP	kW	Voltage (V)	Current (A)	Speed (r/min)	Eff (%)	Power Factor	Starting torque Rated torque	Starting current Rated current	Max torque Rated torque
AEEF801-2	1	0.75	380	1.8	2830	75	0.84	2.2	6.5	2.3
AEEF802-2	1.5	1.1	380	2.5	2830	77	0.86	22	7	2.3
AEEF801-4	0.75	0.55	380	1.5	1390	73	0.76	2.4	6	2.3
AEEF802-4	1	0.75	380	2.0	1390	74.5	0.76	2.3	6	2.3
AEEF90S-2	2	1.5	380	3.4	2840	78	0.85	2.2	7	2.3
AEEF90L-2	3	2.2	380	4.8	2840	80.5	0.86	2.2	7	2.3
AEEF90S-4	1.5	1.1	380	2.8	1400	78	0.78	2.3	6.5	2.3
AEEF90L-4	2	1.5	380	3.7	1400	79	0.79	2.3	6.5	2.3
AEEF90S-6	1	0.75	380	2.3	910	72.5	0.70	2.0	5.5	2.2
AEEF90L-6	1.5	1.1	380	3.2	910	73.5	0.72	2.0	5.5	2.2
AEEF100L-2	4	3	380	6.4	2870	82	0.87	2.2	7	2.3

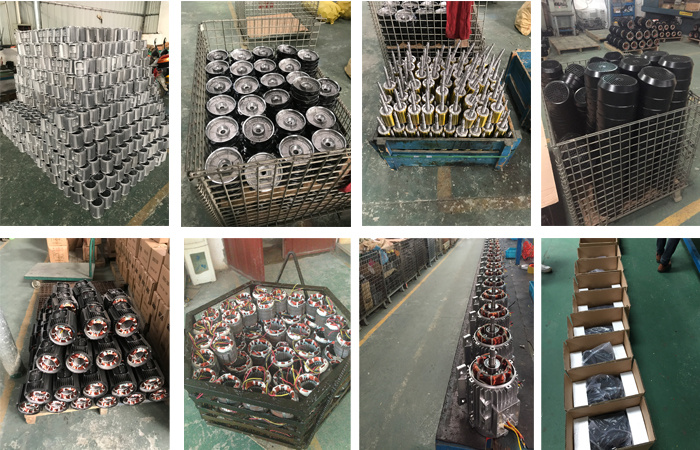

SPARE PARTS:

PACKING WAYS

FAQ

Q: Do you offer OEM service?
A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.

Q: What is your lead time?

A: About 30 days after receiving deposit or original L/C.

Q: What certifiicates do you have?

A: We have CE, ISO. And we can apply others if you need

Fuan Omeik Electric Co., Ltd. is a professional manufacturer of water pumps and electric motors, located in Fuan Electrical Machinery and Appliances Zone, Fuan, Fujian, China and established in 1999. It's a fair integrative company with scientific research, production, and sell, which possesses advance producing and testing equipments and strong technology team. The company always strictly follows the ISO9001 quality management system to manage the production which guarantee of good quality.

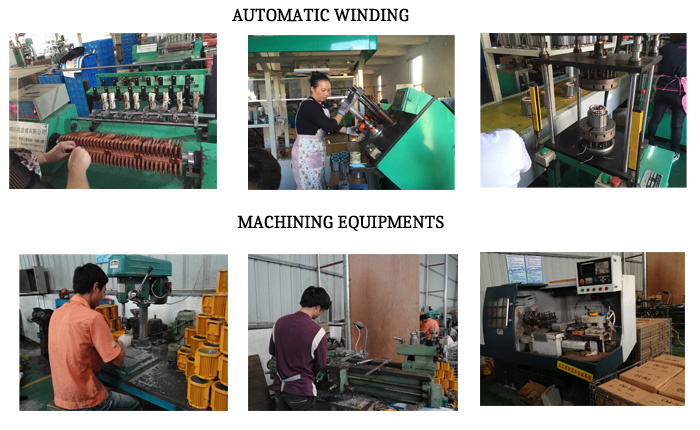

In order to meet the challenge of the keen market competition, the company has introduced advanced technology and machinery as well as computerized testing equipment to further improving the quality of the products. The company insists on "survives on high quality and honest with business", Basis on this principle our quality products have been exported old over the world, such as South East Asia, Middle East, Australia, Europe and South America etc.

We are longing for hand in hand cooperation with more friends in the whole world, know that quality product and the the after sale services, altogether create happy future, we are warmly welcome your coming and the support.
