Aerial Bounded Cable ABC Cable
| Price: |
US $ 0.09-0.23/Meter |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ABC Cable |
| Number Of Wire: |
Solid, Two, Three.. |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
SGS,BV |
| Sheath Material: |
Bare |
| Range Of Application: |
Overhead |
| Brand: |
Rmjt |
Product Description

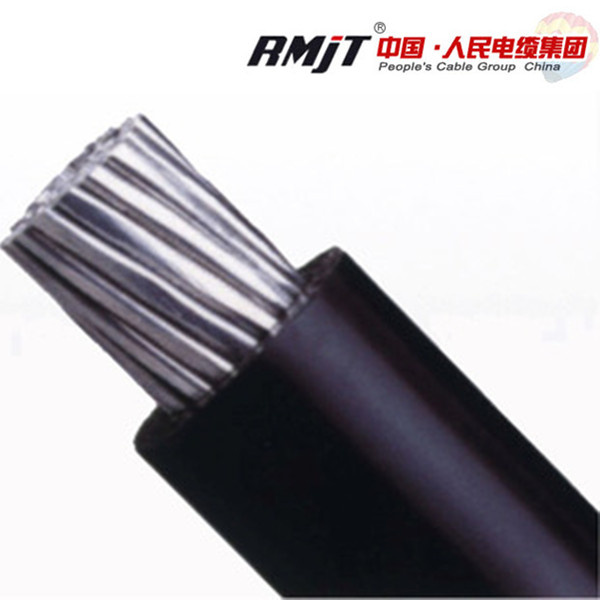

Aerial Bounded Cable ABC Cable
1.Applications ofABC Cable
To supply power from the utilitys lines to the consumers weatherhead.For service at 600 volts or less(phase to phase) at a conductor temperature of 75oC maximum for polyethylene insulation or 90 oC maximum for crosslinked insulation.
2.Construction of ABC Cable
Concentric strand or compressed 1350~H19 conductor,polyethylene or crosslinked polyethylene insulation,concentric strand AAC,ACSR or 6201 alloy neutral messenger.
3.Standards of ABC Cable
Code Name | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft (lbs) | Ampacity(amps) | Size AWG | Stranding | Insulation Thickness(mls) | Size AWG | Stranding | Breaking Strength(lbs) | XLPE | Poly | XLPE | Poly | 6201 ALLOY NEUTRAL-MESSENGER | Minex | 6 | Solid | 45 | 6 | 7 | 1,110 | 106.6 | 102.9 | 85 | 70 | Hippa | 6 | 7 | 45 | 6 | 7 | 1,110 | 113.2 | 105.7 | 85 | 70 | Prawn | 4 | Solid | 45 | 4 | 7 | 1,760 | 158.4 | 154.1 | 115 | 90 | Barnacles | 4 | 7 | 45 | 4 | 7 | 1,760 | 168.3 | 158.2 | 115 | 90 | Shrimp | 2 | 7 | 45 | 2 | 7 | 2,800 | 253.7 | 239.7 | 150 | 120 | Gammarus | 1/0 | 7 | 60 | 1/0 | 7 | 4,460 | 411.7 | 386.0 | 205 | 160 | Leda | 1/0 | 19 | 60 | 1/0 | 7 | 4,460 | 402.7 | 386.0 | 205 | 160 | Dungenese | 2/0 | 7 | 60 | 2/0 | 7 | 5,390 | 506.8 | 476.3 | 235 | 185 | Cyclops | 2/0 | 19 | 60 | 2/0 | 7 | 5,390 | 495.3 | 476.3 | 235 | 185 | Dlustra | 3/0 | 19 | 60 | 3/0 | 7 | 6,790 | 611.4 | 589.1 | 275 | 215 | Lepas | 4/0 | 19 | 60 | 4/0 | 7 | 8,560 | 757.1 | 730.5 | 315 | 245 | 6201 ALLOY REDUCED NEUTRAL-MESSENGER | Artemia | 4 | Solid | 45 | 6 | 7 | 1,110 | 141.4 | 137.1 | 115 | 90 | Crab | 4 | 7 | 45 | 6 | 7 | 1,110 | 151.3 | 141.2 | 115 | 90 | Solaster | 2 | 7 | 45 | 4 | 7 | 1,760 | 226.6 | 212.6 | 150 | 120 | Sandcrab | 1/0 | 7 | 60 | 2 | 7 | 2,800 | 368.8 | 343.1 | 205 | 160 | Echinus | 1/0 | 19 | 60 | 2 | 7 | 2,800 | 358.8 | 343.1 | 205 | 160 | Crayfish | 2/0 | 7 | 60 | 1 | 7 | 3,530 | 452.6 | 422.5 | 235 | 185 | Sipho | 2/0 | 19 | 60 | 1 | 7 | 3,530 | 441.0 | 422.5 | 235 | 185 | Fulgar | 3/0 | 19 | 60 | 1/0 | 7 | 4,460 | 543.4 | 521.1 | 275 | 215 | Arca | 4/0 | 19 | 60 | 2/0 | 7 | 5,390 | 671.2 | 644.6 |
|

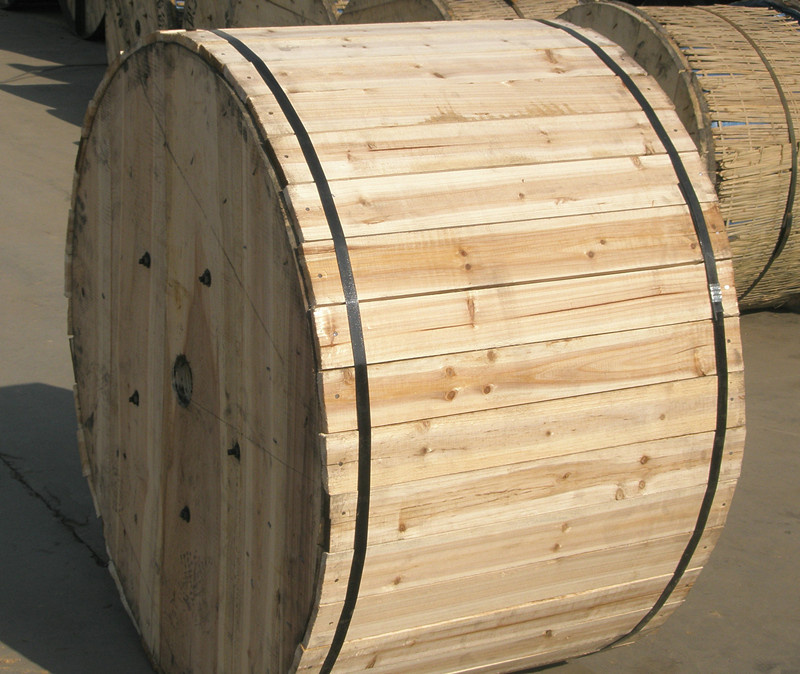

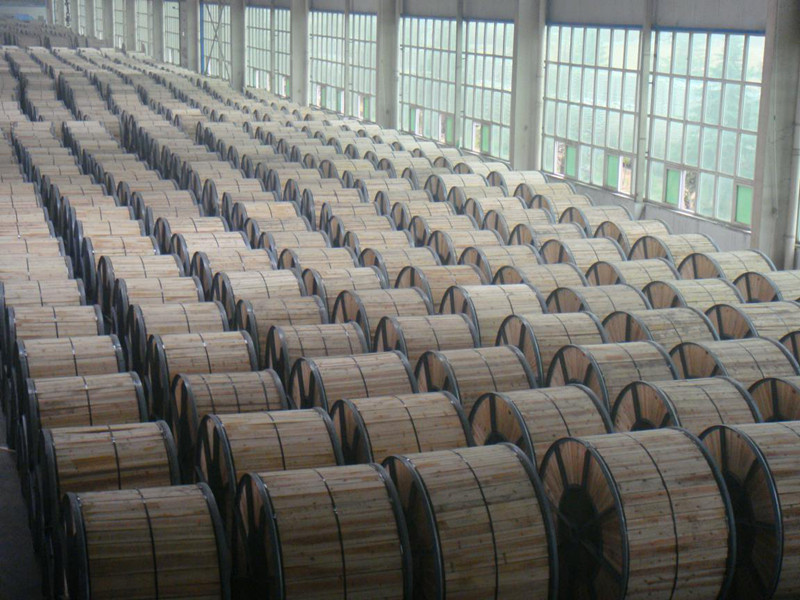

6.Package
7.Our certificate
Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on.As first rank of the supplier in China, we have obtained ISO9001, ISO14001 and CCC certificates.
8.Our market
With the perfect quality and after sales service,our products are very popular in domestic market,whatever in civil using and the government projects.For oversea market,till now we have expanded our market to South America like Chile,Colombia,Bolivia,Brazil and so on,Euro-American market like U.S.A.Germany,Spain,U.K. And so on.Middle East,Africa,Southeast Asia,Mongolia and some other areas.
9.About us

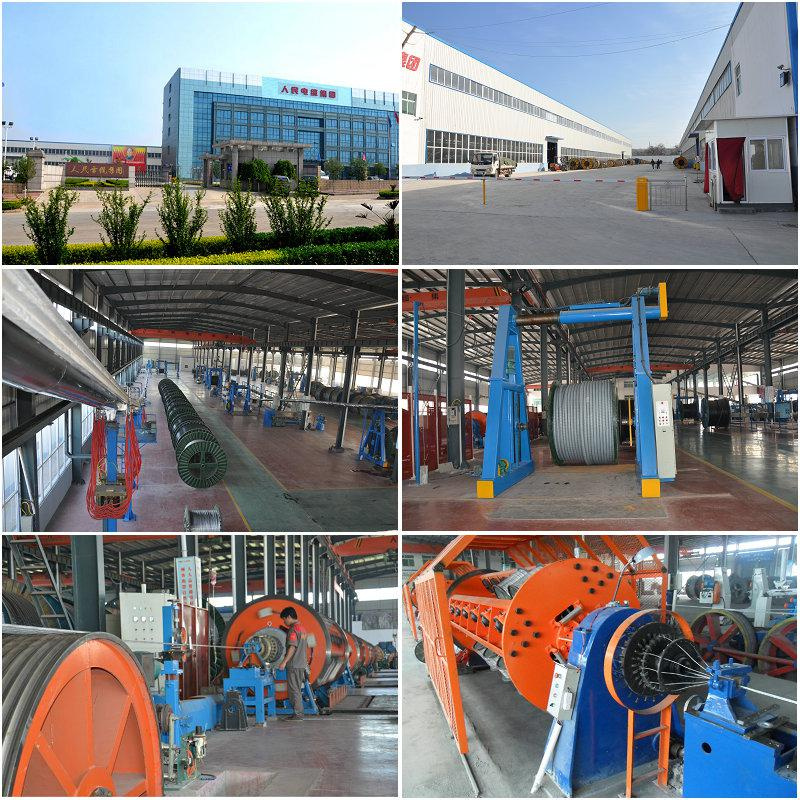

People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
