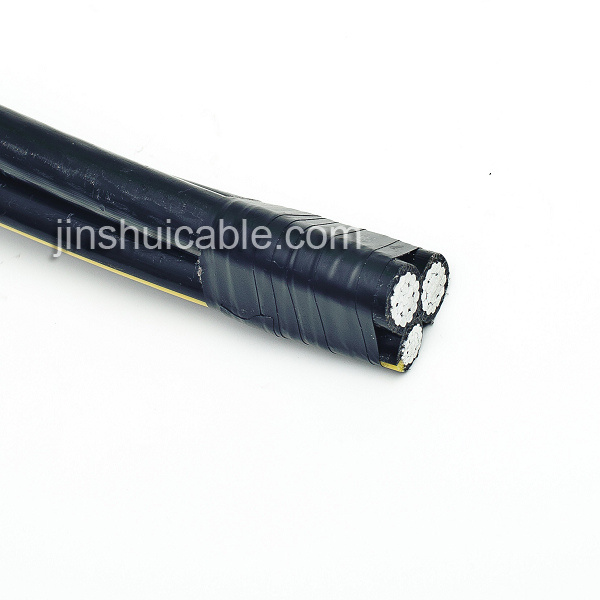

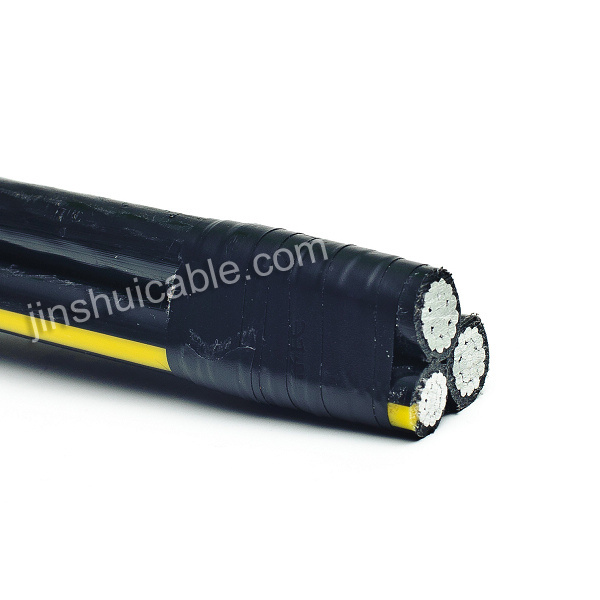

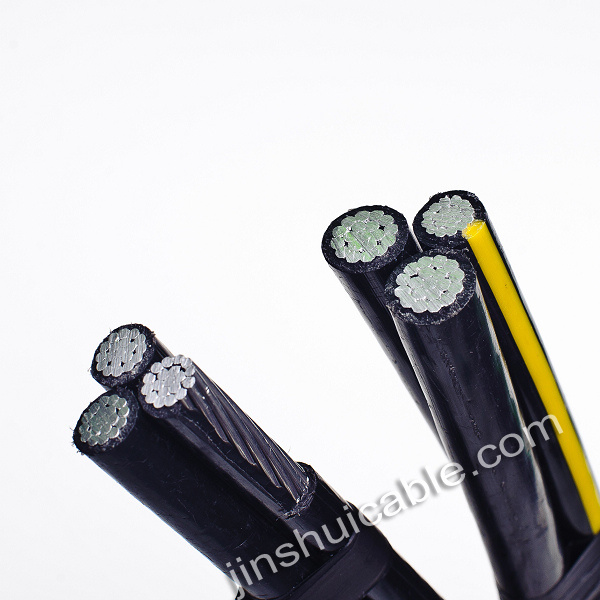

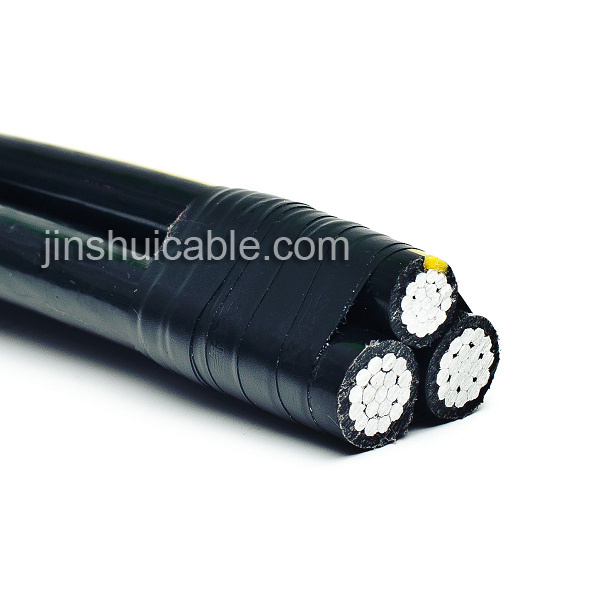

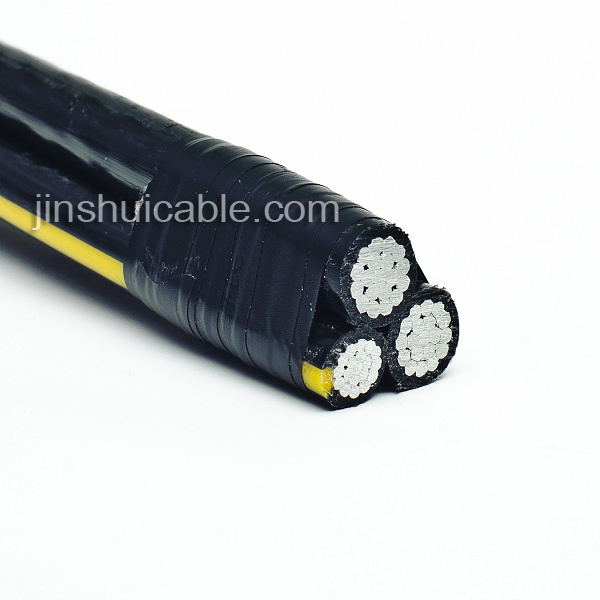

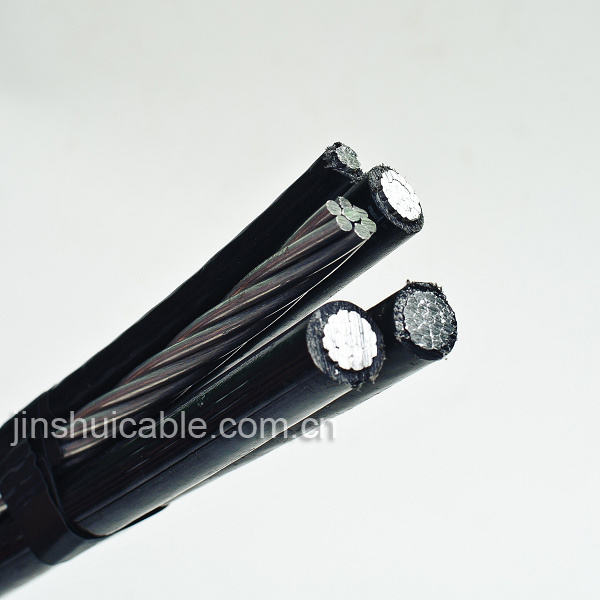

Aerial Bounded Cable up to 1kv
| Price: |
US $ 1-2/Meter |
| Trade Terms: |
CIF |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Triplex Service Drop |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Packaging: |
Wooden Drum |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
PVC |
| Certification: |
CCC |
Product Description
Aerial insulated cable consists of copper or aluminum conductor, inner shielding layer, weather-poof insulation material and outer shielding layer. It has not only power-transmitting character of power cable, but strong mechanical character of aerial cable as well.
The product is manufactured according to the standards of GB14049Aerial insulated cables of rated voltages 10 KV and 35KV and IEC60502Extruded solid dielectric power cables for rated voltages from 1KV to 30KV.
10KV Rated Voltage Overhead Insulated Cable
1. Suitable use for AC rated voltage 10KV (U) or 12KV(Um) overhead power transmission lines.
2. The installation temperature should be not less than -20.
3. The maximum temperature of conductor: XLPE insulated cable is 250 when the short-circuit period should not exceed 5 seconds.
4. The maximum permissible continuous operating temperature of conductor: A. Cable with bearing structure: XLPE insulated cable is 90; B. Cable without bearing structure: Considering no stipulation in GB, it should be under above a value according to the real instance.
5. The permission bending radius is no less than: A. Of single core cable is 20(D+d) ± 5% mm, TR structure is 20Dmm; B. Of multi-core cable is 15(D+d) ± 5% mm.
Jinshui Wire & Cable Group is located in the national class Zhengzhou high and new technology industries development zone in Zhengzhou, which is full of famous enterprises with a graceful and elegant environment. With abundant human resources, expedite transportation network, widespread scientific research institutions, sophisticated technical support and superior geographic location which is richly endowed by nature. Jinshui Wire & Cable group have subsidiary companies: Jinshui Industry and commerce Co., Ltd., Huibang wire and cable Co., Ltd and a horizontally combined manufacture plant, namely Zhengzhou Cable Factory. The group mainly engage in the export of wire and cable including cable accessories. Through eight years' unremitting effort and endeavors, we have achieved sound cooperation and widely compliments from the clients all over the world by superior quality, reasonable price and sincere services.
Jinshui Wire & Cable Group is also a key company of high and new technology industry on state level in China. With strong capabilities of R&D and innovation Jinshui Wire & Cable Group has owned a number of exclusive essential manufacture technologies and has passed the certification of ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 Occupational Heath Management System, ISO10012 Measurement Management System and others from China and abroad.
Outfitted with the latest generation of technologies. Facilities and equipments. Jinshui Wire & Cable Group can produce more than 1400 types of cables and wires in scores of categories. We mainly have the following quality products with strong international competitiveness: Aluminum rod for electrical purpose, hard drawn copper conductor, all aluminum conductors (AAC), aluminum conductors steel reinforcement (ACSR), all aluminum alloy conductors (AAAC), aerial bundled cables up to 1kV (ABC), PVC insulated wire and flexible wire, welding cable, control cable, rubber insulated cable, rubber insulated flexible wire, PVC insulated power cable, XLPE insulated power cable up to 220kV and cable accessories. Our products can conform to dozens of standards such as GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS and so on. Also we can produce based on customers' requirements and specifications. Our products have already been verified to conform to the certification of China Compulsory Product Certification (CCC), PCCC, CQC Mark Certification, MA and others from China and abroad.
With the strong and comprehensive sales and marketing network, Jinshui Wire & Cable Group has been making every effort to develop and expand the domestic and international market. Especially, our international market share is growing rapidly. Zhengzhou Jinshui Industry & Commerce Co., Ltd. Specializing in the international market in Jinshui Wire & Cable Group, has established sound business relationship with clients all over the world, exported products to the clients from Europe, Australia, Middle East, Africa, South Asia, North America, and South America, and obtained the clients' trust and compliment.
With the internationalization of Jinshui Wire & Cable Group, we have established long term strategic relationship with hundreds of large scale companies from America, Australia, Philippines, Malaysia, Korea and etc, and lay solid foundation for our further development.
