| Prod Model: |
NFC33-209 |
| Voltage: |
0.6/1kv |
| Insulation Color: |
Black |
| Certificate: |
ISO9001, ISO14001, CCC |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Sheath Material: |
N/a |
| Range Of Application: |
Overhead |
| Brand: |
Rmjt |
Product Description

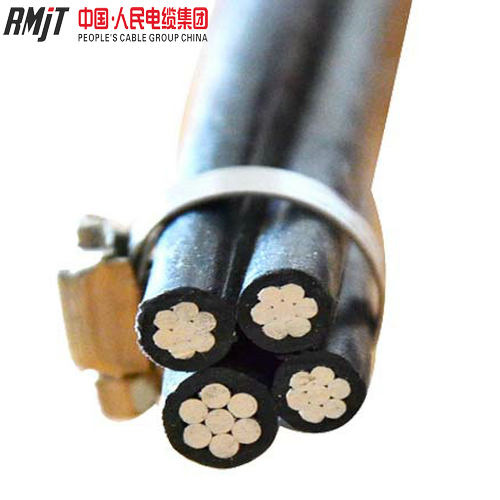

Aerial Bundle Cable (ABC Cables with XLPE Insulation) For Power transmission and Distribution
1.Application
ABC cable which will be mainly used for city power grid transmission line. It is simple structure, safety and stable and is of good mechanism physical and electricity function. And also it has good function of proof track, creepage
discharge, and air. Compared with naked wire, it has small gap so that can save wire route and decrease voltage drop. What is the
most important is that it will decrease the accident in power supplying and make people safe.
2.Standard
B-230 Aluminum Wire, 1350-H19 for electrical purposes
B-231 Aluminum Conductors, concentric-lay-stranded
B-232 Aluminum Conductors, concentric-lay-stranded, coated steel reinforced(ACSR)
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
B-498 Zinc-coated Steel Core Wire for Aluminum Conductors, steel reinforced(ACSR/AZ)
Service Drop cable meets or exceeds all aplicable requierements ofANSI/ICEA S-76-474.
3.Specification
| Phase | Supporting | Phase | Supporting | |
| AAC+XLPE | AAAC+XLPE | Compact Conductor | XLPE Insulation | Conductor | XLPE Insulation | |
| No.X Normal Cross Section of Cores | No.X Normal Cross Section of Cores | No.of Al Wires | Overall Diameter | Normal Thickness | No./Dia.of Al. Wire | Normal Thickness | Approx. Overall Diameter |
| No. X mm2 | No. X mm2 | - | mm | mm | No./mm | mm | mm |
| 3 X 16 | 1 X 54.6 | 7 | 4.8 | 1.2 | 7/3.15 | 1.6 | 20.72 |
| 3 X 25 | 1 X 54.6 | 7 | 6 | 1.4 | 7/3.15 | 1.6 | 23.63 |
| 3 X 35 | 1 X 54.6 | 7 | 7 | 1.6 | 7/3.15 | 1.6 | 26.17 |
| 3 X 50 | 1 X 54.6 | 7 | 8.3 | 1.6 | 7/3.15 | 1.6 | 28.53 |
| 3 X 70 | 1 X 54.6 | 19 | 10 | 1.8 | 7/3.15 | 1.6 | 32.34 |
| 3 X 95 | 1 X 54.6 | 19 | 11.6 | 1.8 | 7/3.15 | 1.6 | 35.24 |
| 3 X 120 | 1 X 54.6 | 19 | 13 | 1.8 | 7/3.15 | 1.6 | 37.78 |
| 3 X 150 | 1 X 54.6 | 19 | 14.6 | 1.8 | 7/3.15 | 1.6 | 40.69 |
| 3 X 16 | 1 X 70 | 7 | 4.8 | 1.2 | 7/3.5 | 1.6 | 21.36 |
| 3 X 25 | 1 X 70 | 7 | 6 | 1.4 | 7/3.5 | 1.6 | 24.26 |
| 3 X 35 | 1 X 70 | 7 | 7 | 1.6 | 7/3.5 | 1.6 | 26.8 |
| 3 X 50 | 1 X 70 | 7 | 8.3 | 1.6 | 7/3.5 | 1.6 | 29.16 |
| 3 X 70 | 1 X 70 | 19 | 10 | 1.8 | 7/3.5 | 1.6 | 32.97 |
| 3 X 95 | 1 X 70 | 19 | 11.6 | 1.8 | 7/3.5 | 1.6 | 35.88 |
4.Production Progress
Our factory possess 2 subsidiaries, Zhitian factory is professional abc cable workshop with 20 production line.
5.Package
Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.
6.About us
People's Cable Group Co.,Ltd was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.Customer visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
