| Prod Model: |
abc cable |
| Conductor: |
Aluminum |
| Insulation: |
XLPE |
| Package: |
Wooden Drum |
| Delivery: |
10-15days |
| MOQ: |
10-15days |
| Port: |
Qingdao,Tianjin,Shanghai |
| Application: |
Industry |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Sheath Material: |
None |
| Wire Core Material: |
Aluminum |
| Model: |
Jklyj |
| Brand: |
Huatong |
Product Description

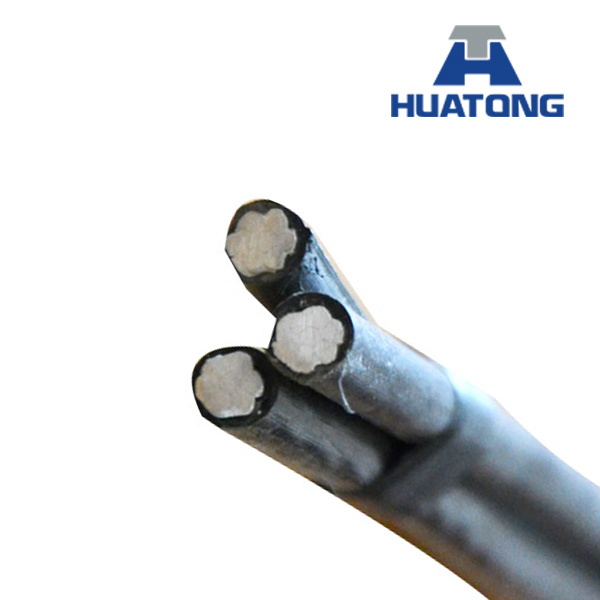

Aerial Bundle ABC Cable for Power Transmission and Distribution
APPLICATION:
The product is a new type of aerial cable for power transmitting . It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting . It is primarily used on lighting, outdoor lighting,and temporary service for construction . To be used at voltage of 600V phase-to-phase or less,and the conductor temperatures no exceed 75degred for polyethylene insulated conductors 90degree for crosslinked polyethylene (XLPE) insulated conductors.
CONSTRUCTION:
Conductors are concentrically stranded,compressed 1350-H19 aluminum. Insulated with either polyethylene or crosslinked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC,or ACSR .
The product is a new type of aerial cable for power transmitting . It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting . It is primarily used on lighting, outdoor lighting,and temporary service for construction . To be used at voltage of 600V phase-to-phase or less,and the conductor temperatures no exceed 75degree for polyethylene insulated conductors 90degree for crosslinked polyethylene (XLPE) insulated conductors.
Construction
Conductors are concentrically stranded,compressed 1350-H19 aluminum. Insulated with either polyethylene or crosslinked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC,or ACSR .
Duplex service drop (Bare neutral messenger ACSR)
| Code word | AWG or kcmil | Bare neutral messenger | Phase conductor | Weight kg/km |
| ACSR stranding and wires dia. (mm) | Rated strength (lbs) | AAC | Insulation thickness (mm) |
| Stranding and wires dia. (mm) |
| Setter | 1*6AWG+1*6AWG | 1/1.68+6/1.68 | 1190 | 1/4.11 | 1.14 | 111 |
| Shepherd | 1*6AWG+1*6AWG | 1/1.68+6/1.68 | 1190 | 7/1.56 | 1.14 | 113 |
| Eskimo | 1*4AWG+1*4AWG | 1/2.12+6/2.12 | 1860 | 1/5.19 | 1.14 | 171 |
| Terrier | 1*4AWG+1*4AWG | 1/2.12+6/2.12 | 1860 | 7/1.96 | 1.14 | 173 |
| Chow | 1*2AWG+1*2AWG | 1/2.67+6/2.67 | 2850 | 7/2.47 | 1.14 | 266 |
| Bull | 1*1/0AWG+1*1/0AWG | 1/3.37+6/3.37 | 4380 | 19/1.89 | 1.52 | 427 |
Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.
Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.
In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
