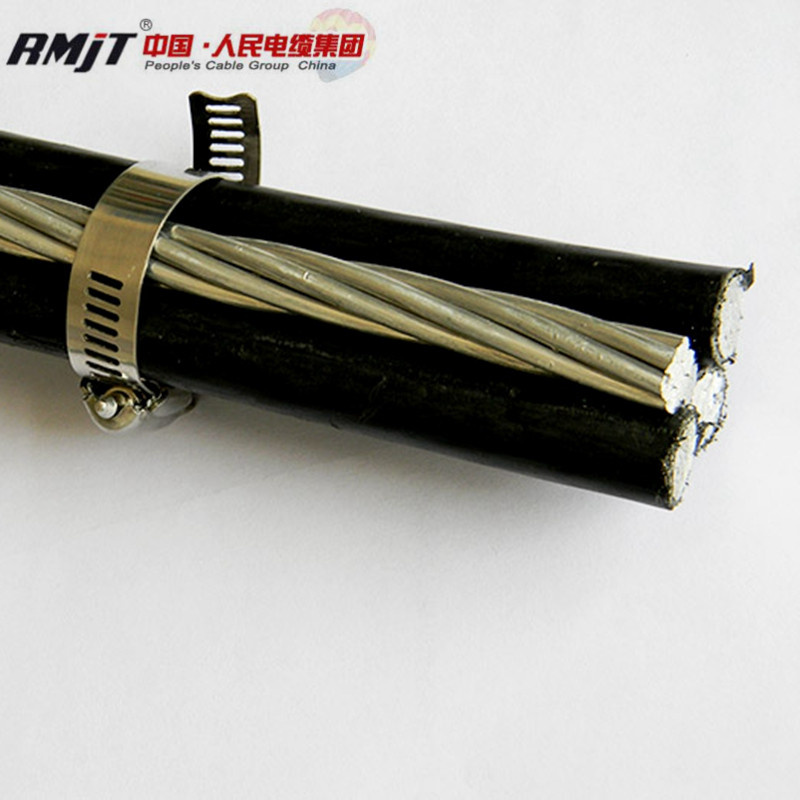

Aerial Bundled Cable ABC Cable
| Price: |
US $ 0.5-5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ABC Cable |
| OEM: |
Yes |
| Standard: |
IEC, BS, DIN, ASTM, NFC |
| Manufacturer: |
People's Cable Group |
| Sample: |
Free |
| Rated Voltage: |
0.6/1kv, 11kv, 22kv, 35kv |
| Core: |
Single/Duplex / Triplex/ Quadruplex |
| Color: |
Black, Grey, Red or as Customed |
| Advantage: |
Factory Supply |
| Advantages: |
High Quality, Competitive Price, Fast Delivery |
| Delivery Time: |
15-25days |
| Current: |
DC & AC |
| Application: |
Construction, Overhead, Underground, Industrial |
| Voltage: |
Low, Medium, High Voltage |
| Insulation Material: |
XLPE/PVC/PE |
| Sheath Material: |
N/a |
| Wire Core Material: |
AAC, AAAC, ACSR |
| Certification: |
ISO9001:2008, ISO14001:2004, Ohsas18001:20 |
| Brand: |
Rmjt |
Product Description
Application
a. Duplex Service Drop
Application:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.
b. Triplex Service Drop
Application: To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene insulation 90°C maximum for crosslinked insulation.
c. Quadruplex Service Drop.
Used to supply 3 phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors.

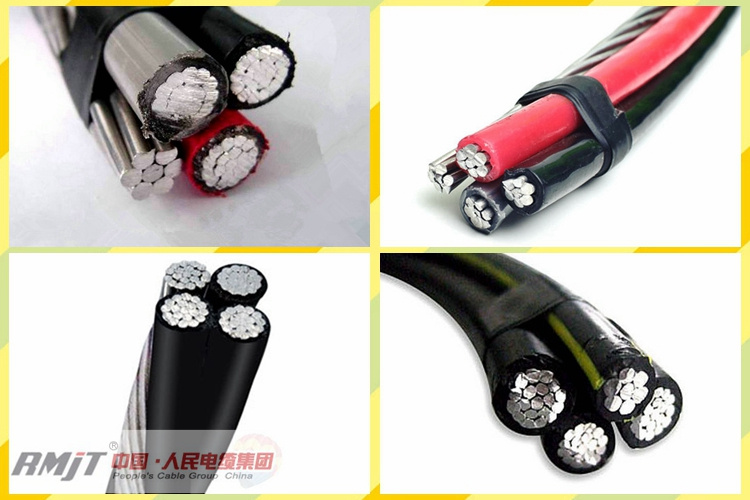

Constructions
Conductor: Round, stranded and compacted aluminum conductor
Insulation: HDPE, XLPE, PVC
3 power cores consisting of standard aluminium conductors, insulated withXLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.Standard
GB12527-91,IEC502, BS7870-5,NFC33-209
Other standards such as BS,DIN,ASTM and ICEA upon request
Specifications| Triplex service drop |
| Code Name | Phase conductor | Bare Neutral Message | Nominal Weight ( kg/km ) | Allowable Ampacity |
|
| Size & No.of wires | Insulation Thick(mm) | Nominal Diameter (mm) | Size & No.of wires | Rated Strength (kg) | XLPE | Aluminum | Total | ( A ) |
|
| Bare | OD |
| AAAC |
| Homarus | 6-Solid | 1.14 | 4.115 | 6.4 | 6-7 | 499 | 42 | 118 | 159 | 78 |
| Minex | 6-Solid | 1.14 | 4.115 | 13.3 | 6-7 | 499 | 42 | 118 | 159 | 78 |
| Cabera | 6-7 | 1.14 | 4.65 | 6.9 | 6-7 | 499 | 48 | 118 | 165 | 78 |
| Hippa | 6-7 | 1.14 | 4.65 | 6.9 | 6-7 | 499 | 48 | 118 | 165 | 78 |
| Artemia | 4-Solid | 1.14 | 5.182 | 7.5 | 6-7 | 499 | 52 | 162 | 214 | 103 |
| Maria | 4-7 | 1.14 | 5.89 | 8.2 | 6-7 | 499 | 60 | 188 | 247 | 103 |
| Crab | 4-7 | 1.14 | 5.89 | 8.2 | 6-7 | 499 | 60 | 162 | 222 | 103 |
| Ludia | 4-Solid | 1.14 | 5.182 | 7.5 | 6-7 | 499 | 52 | 162 | 214 | 103 |
| Prawn | 4-Solid | 1.14 | 5.182 | 7.5 | 4-7 | 798 | 52 | 188 | 240 | 103 |
| Metalia | 4-7 | 1.14 | 5.89 | 8.2 | 4-7 | 798 | 60 | 188 | 247 | 103 |
| Bamacles | 4-7 | 1.14 | 5.89 | 8.2 | 4-7 | 798 | 60 | 188 | 247 | 103 |
| Solaster | 2-7 | 1.14 | 7.42 | 9.7 | 4-7 | 798 | 76 | 258 | 333 | 136 |
| Pagarus | 2-7 | 1.52 | 7.42 | 10.5 | 4-7 | 798 | 100 | 258 | 357 | 136 |
| Shrimp | 2-7 | 1.14 | 7.42 | 9.7 | 2-7 | 1270 | 76 | 298 | 374 | 136 |
| Lobster | 2-7 | 1.52 | 7.42 | 10.5 | 2-7 | 1270 | 100 | 298 | 397 | 136 |
| Encope | 1-19 | 1.52 | 8.43 | 11.5 | 2-7 | 1270 | 115 | 347 | 461 | 158 |
| Sanderab | 1/0-7 | 1.52 | 9.35 | 12.4 | 2-7 | 1270 | 128 | 409 | 537 | 182 |
| Echinus | 1/0-19 | 1.52 | 9.47 | 12.5 | 2-7 | 1270 | 130 | 409 | 539 | 182 |
| Gammarus | 1/0-7 | 1.52 | 9.35 | 12.4 | 1/0-7 | 2023 | 128 | 473 | 601 | 182 |
| Leda | 1/0-19 | 1.52 | 9.47 | 12.5 | 1/0-7 | 2023 | 130 | 473 | 603 | 182 |
| Crayfish | 2/0-7 | 1.52 | 10.5 | 13.6 | 2-7 | 1270 | 146 | 487 | 631 | 210 |
| Sipho | 2/0-19 | 1.52 | 10.6 | 13.7 | 2-7 | 1270 | 147 | 487 | 634 | 210 |
| Dungenese | 2/0-7 | 1.52 | 10.5 | 13.6 | 2/0-7 | 2445 | 146 | 595 | 740 | 210 |
| Cyclops | 2/0-7 | 1.52 | 10.6 | 13.7 | 2/0-7 | 2445 | 147 | 595 | 743 | 210 |
| Slug | 3/0-7 | 1.52 | 11.8 | 14.8 | 1/0-7 | 2023 | 165 | 650 | 816 | 242 |
| Fulgur | 3/0-19 | 1.52 | 11.9 | 15.0 | 1/0-7 | 2023 | 168 | 650 | 819 | 242 |
| Balanus | 3/0-19 | 2.03 | 11.9 | 16.0 | 1/0-7 | 2023 | 216 | 650 | 868 | 242 |
| Stonecrab | 3/0-7 | 1.52 | 11.8 | 14.8 | 3/0-7 | 3080 | 165 | 752 | 917 | 242 |
| Flustra | 3/0-7 | 1.52 | 11.9 | 15.0 | 3/0-7 | 3080 | 168 | 752 | 920 | 242 |
| Crisia | 3/0-19 | 2.03 | 11.9 | 16.0 | 3/0-7 | 3080 | 216 | 752 | 969 | 242 |
| Squid | 4/0-7 | 1.52 | 13.3 | 16.3 | 2/0-7 | 2431 | 191 | 820 | 1011 | 279 |
| Area | 4/0-19 | 1.52 | 13.4 | 16.5 | 2/0-7 | 2431 | 192 | 820 | 1012 | 279 |
| Bugula | 4/0-19 | 2.03 | 13.4 | 17.5 | 2/0-7 | 2431 | 246 | 820 | 1066 | 279 |
| Kingerab | 4/0-7 | 1.52 | 13.3 | 16.3 | 4/0-7 | 3883 | 191 | 948 | 1137 | 279 |
| Lepas | 4/0-19 | 1.52 | 13.4 | 16.5 | 4/0-7 | 3883 | 192 | 948 | 1140 | 279 |
| Cassi | 4/0-19 | 2.03 | 13.4 | 17.5 | 4/0-7 | 3883 | 246 | 948 | 1194 | 279 |
| ACSR |
| Paludina | 6-Solid | 1.14 | 4.115 | 6.401 | 6-6/1 | 540 | 42 | 112 | 170 | 79 |
| Voluta | 6-7 | 1.14 | 4.67 | 6.960 | 6-6/1 | 540 | 48 | 112 | 176 | 79 |
| Bolma | 6-7 | 1.52 | 4.67 | 7.722 | 6-6/1 | 540 | 64 | 112 | 194 | 79 |
| Scallop | 6-Solid | 1.14 | 5.182 | 7.468 | 6-6/1 | 540 | 52 | 155 | 225 | 138 |
| Stombus | 4-7 | 1.14 | 5.89 | 8.179 | 6-6/1 | 540 | 60 | 155 | 232 | 138 |
| Carnea | 4-7 | 1.52 | 5.89 | 8.941 | 6-6/1 | 540 | 80 | 155 | 253 | 138 |
| Whelk | 4-Solid | 1.14 | 5.182 | 7.468 | 4-6/1 | 844 | 52 | 177 | 258 | 138 |
| Periwinkle | 4-7 | 1.14 | 5.89 | 8.179 | 4-6/1 | 844 | 60 | 177 | 263 | 138 |
| Calma | 4-7 | 1.52 | 5.89 | 8.941 | 4-6/1 | 844 | 80 | 177 | 284 | 138 |
| Cockle | 2-7 | 1.14 | 5.89 | 8.179 | 4-6/1 | 844 | 60 | 247 | 335 | 183 |
| Gebia | 2-7 | 1.52 | 5.89 | 8.941 | 4-6/1 | 844 | 80 | 247 | 354 | 183 |
| Conch | 2-7 | 1.14 | 5.89 | 8.179 | 2-6/1 | 1293 | 60 | 281 | 384 | 183 |
| Uca | 2-7 | 1.52 | 5.89 | 8.941 | 2-6/1 | 1293 | 80 | 281 | 405 | 183 |
| Vemeths | 1-7 | 1.52 | 8.33 | 11.379 | 1-6/1 | 1610 | 113 | 354 | 522 | 210 |
| Atya | 1-19 | 1.52 | 8.33 | 11.379 | 1-6/1 | 1610 | 113 | 430 | 524 | 210 |
| Janthina | 1/0-7 | 1.52 | 8.33 | 11.379 | 2-6/1 | 1293 | 113 | 393 | 549 | 242 |
| Ranella | 1/0-19 | 1.52 | 9.47 | 12.522 | 2-6/1 | 1293 | 130 | 393 | 566 | 242 |
| Neritina | 1/0-7 | 1.52 | 9.35 | 12.395 | 1/0-6/1 | 1987 | 128 | 448 | 644 | 242 |
| Cenia | 1/0-19 | 1.52 | 9.47 | 12.522 | 1/0-6/1 | 1987 | 130 | 448 | 646 | 242 |
| Cavolinia | 2/0-7 | 1.52 | 10.5 | 13.564 | 1-6/1 | 1610 | 146 | 496 | 697 | 279 |
| AAC |
| Halotis | 6-Solid | 1.14 | 4.115 | 6.4 | 6-7 | 255 | 42 | 110 | 152 | 78 |
| Pike | 6-7 | 0.76 | 4.67 | 6.2 | 6-7 | 255 | 31 | 112 | 143 | 78 |
| Fusus | 4-Solid | 1.14 | 5.182 | 7.5 | 4-7 | 400 | 52 | 177 | 229 | 103 |
| Oyster | 4-7 | 1.14 | 5.89 | 8.2 | 4-7 | 400 | 76 | 177 | 237 | 103 |
| Clam | 2-7 | 1.14 | 7.42 | 9.7 | 2-7 | 612 | 100 | 281 | 359 | 136 |
| Pyrula | 1-7 | 1.52 | 8.33 | 11.4 | 1-7 | 744 | 113 | 356 | 467 | 158 |
| Hyas | 1-19 | 1.52 | 8.43 | 11.5 | 1-7 | 744 | 115 | 356 | 469 | 158 |
| Murex | 1/0-7 | 1.52 | 9.35 | 12.4 | 1/0-7 | 903 | 128 | 385 | 513 | 182 |
| Purpura | 1/0-19 | 1.52 | 9.47 | 12.5 | 1/0-7 | 903 | 130 | 385 | 515 | 182 |
| Nasa | 2/0-7 | 1.52 | 10.52 | 13.6 | 2/0-7 | 1139 | 146 | 566 | 710 | 210 |
| Trophon | 2/0-7 | 1.52 | 10.64 | 13.7 | 2/0-7 | 1139 | 147 | 566 | 713 | 210 |
| Quahog | 3/0-7 | 2.03 | 11.79 | 15.9 | 3/0-7 | 1379 | 214 | 713 | 926 | 242 |
| Lone | 2/0-19 | 2.03 | 11.94 | 16 | 3/0-7 | 1379 | 217 | 713 | 929 | 242 |
| Melita | 3/0-19 | 1.52 | 11.94 | 15 | 3/0-19 | 1501 | 168 | 713 | 881 | 242 |
| Coquina | 4/0-7 | 1.52 | 13.26 | 16.3 | 4/0-7 | 1737 | 191 | 899 | 1089 | 279 |
| Tusk | 4/0-7 | 2.03 | 13.26 | 17.3 | 4/0-7 | 1737 | 243 | 899 | 1141 | 279 |
| Apus | 4/0-19 | 2.03 | 13.41 | 17.5 | 4/0-7 | 1737 | 246 | 899 | 1144 | 279 |
| Portunus | 4/0-19 | 1.52 | 13.41 | 16.5 | 4/0-19 | 1823 | 194 | 899 | 1091 | 279 |
| Chiton | 266.8-19 | 2.03 | 14.88 | 18.9 | 266.8-19 | 2254 | 277 | 1133 | 1409 | 310 |
| Nannynose | 336.4-19 | 2.03 | 16.92 | 21 | 336.4-19 | 2790 | 321 | 1427 | 1749 | 330 |

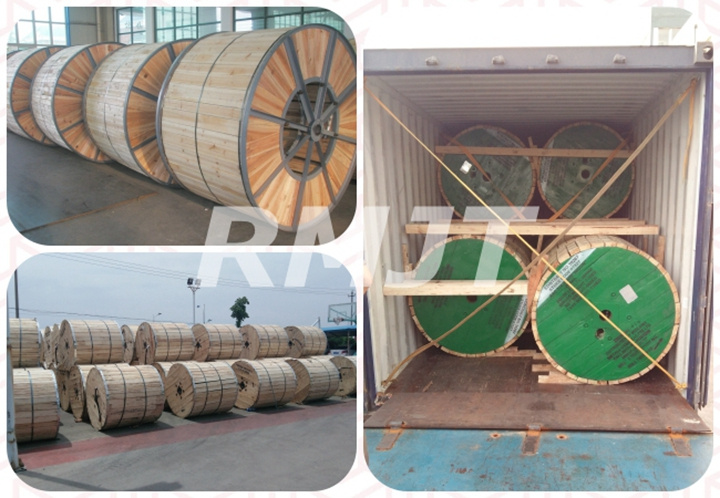

ABC Cable Packaging
Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!

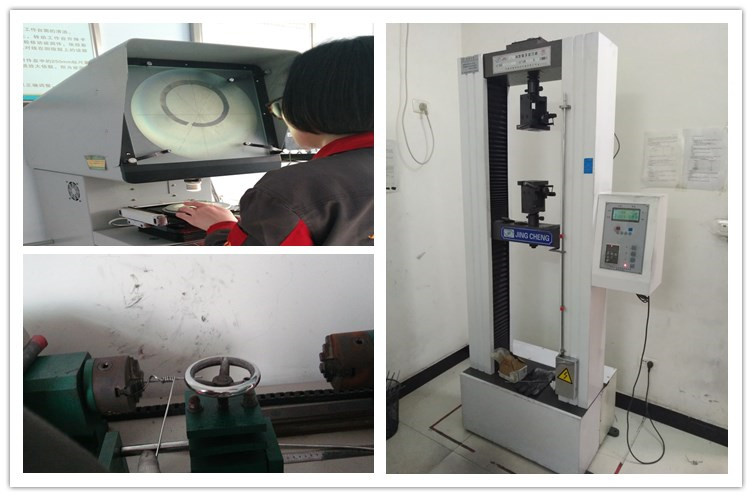

Test itemsWe have professional equipment and technical person to test the products, the equipments will be examined at a certain time to ensure the accuracy of the result, and the quality of products.
Certification
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
FAQ
Q:How many years has People's Cable Group been in production?
A:People's Cable Group CO., Ltd was founded in 2007, up to now it has been engaged in wires and cables industry over 10 years.
Q:I didn't find the cable which I need in this page?
A:Because of the limitation of platform, we didn't show all specifications of cables. If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What's your terms of payment?
A:You can pay for the order via: T/T, Western Union, Paypal.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
Q:Why to give us an inquiry?
Even the products we don't manufacture,we still have many business partner in China.So don't hesitate,just inquiry us. One inquiry,you may get a good supplier.About Us
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone.
Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Our advantages:
1.27 years manufacture experience and 15 years export experience
2.With our own factory, supply stability with low cost and excellent quality
3.Product certification: CCC, ISO, BV, SGS, UL, CE and so on
4.OEM and ODM service available
5.Rapid delivery and feedback, faster lead time
6.Free sample is available
We are wires, cables and bare conductors manufacturer more than 20 years, till now our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).
2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.
5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.
For more details please check our website as my contact information.
If you have any problem, please do not hesitate to let us know, we will offer you our best service.
