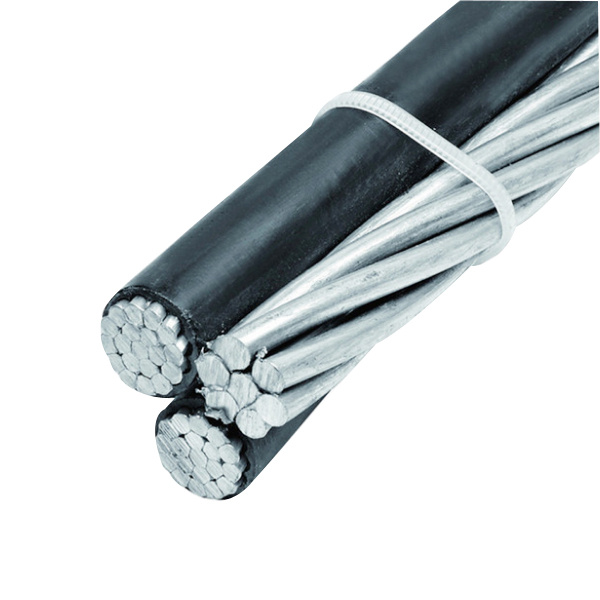

Aerial Bundled Cable

Aerial Bundled Cable
Price: US $ 0.2-2/Meter
Min Order: 3000/Meter
Pay Type: L/C,T/T,D/P
Prod Model: ABC-001
Type: Insulated
Conductor Type: Stranded
Application: Overhead
Conductor Material: Aluminum
Insulation Material: PVC
Certification: CE
Sheath Material: PVC PE XLPE
Range Of Application: Overhead

Product Description

Applications
     This production is suitable for electric cable below 10KV AC, which will be mainly used for city power grid transmission line. It is simple structure,safety and stable and is of good mechanism physical and electricity function. And also it has good function of proof track, creepage discharge, and air. Compared with naked wire, it has small gap so that can save wire route and decrease voltage drop. What is the most important is that it will decrease the accident in power supplying and make people safe.
Specific Property for ABC Cable:
1) the min. temperature of laying cable is not lower than 20°C.
2) the Max. temperature of HDPE insulated cable is 150°C, and that of the XLPE insulated cable is   250°C when short circuit (5 seconds ).3) the Max. long-time working temperature of conductor of the HDPE insulated cable is 75°C,and that of the XLPE insulated cable is 90°C.4) every fault time of single-phase earth shall be less than one minute. And that also shall be less than 8 hours per time and be less than 125hours every year.5) the permissible curving radius of single-core cable should be not less than 20(D±d) ±5%mm, and that of the multi-core cable should be not less than 15(D±d) ±5%mm.
Related products:

















Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
