Aerial Flat Fiber Optic Cable

Name: Aerial Flat Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 795358795
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 0.28-0.33/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	FLAT CABLE
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Fiber Optic Cable
Sheath Material:	PE

Product Description

G657A ADSS 2/12/24 core Single Mode Flat Optical Cable for Outdoor(GYFXY-3)

Description

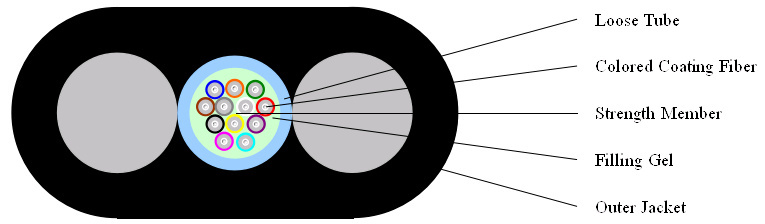

The loose tube are made of high modulus plastics(PBT), which are filled with water resistant gel. Water blocking yarn wrapped which used for waterproof resistance. Two FRP(Kevlar) strength member provide high tensile resistance. Outer sheath is made of UV resistance PE jacket. All dielectric cable construction allows hanging on electric poles and power lines with up to 12KV.

Feature
All-dielectric cable construction
Flat cable, Unitube design. Up to 12fibers.
Suitable for outdoor and indoor usage
Compact structure, small size and light weight.
Water blocking, UV resistance, High and low temperature resistance.
Adopt strict process and raw materials control guarantee the lifespan more than 30 years.

Application:

For laying inside buildings, in risers, attics, basements, sewers and pipelines.
It's a good choise for last mile FTTX project.
Fiber optic Cable for Aerial

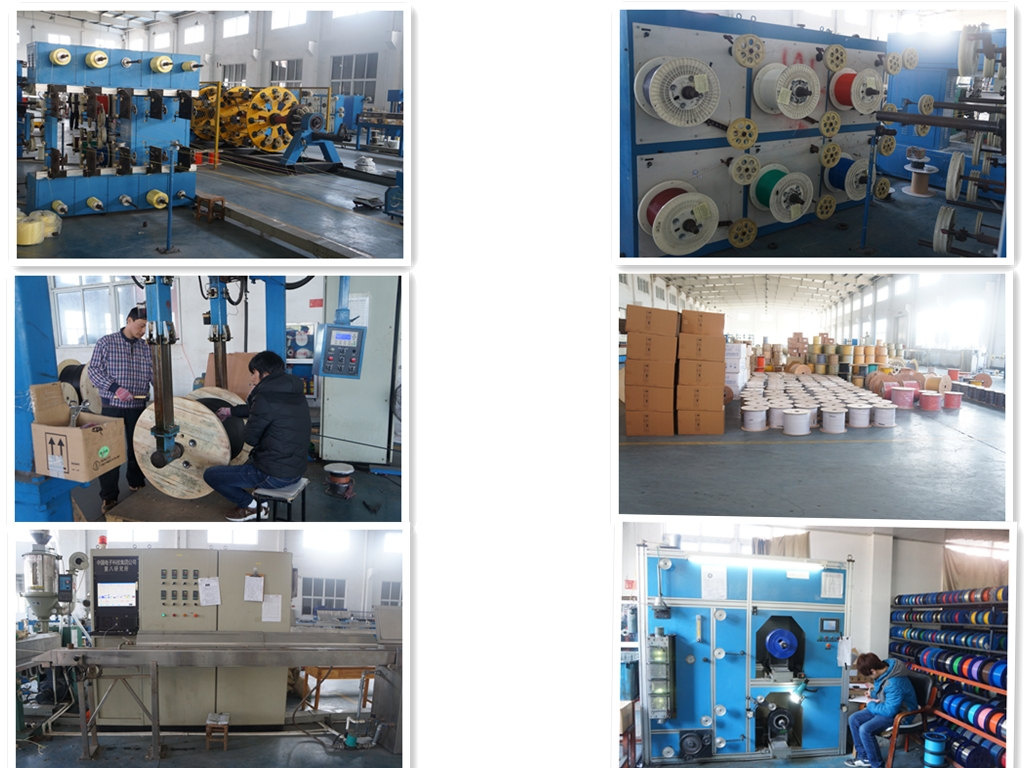

PRODUCTION LINE

PACKAGING

Products Standard

Mechanical Performance:
Max Tension Performance: IEC 60794-1-2-E
Max. Operation Tension: IEC 60794-1-2-E1
Crush Test: IEC 6079 -1-2-E3
Impact Test: IEC 60794-1-2-E4
Repeated Bending: IEC 60794-1-2-E6
Torsion Test: IEC 60794-1-2-E7
Cable bend: IEC 60794-1-2-E11A
Attenuation Coefficient: ITU-T G. 652
Structural Test: IEC-60793-1-20
Environmental Performance
Temperature Cycling: IEC 60794-1-2-F1
Water Penetration: IEC 60794-1-2-F5B
Filing Compound Flow: IEC 60794-1-E14

Technical Parameters

Fiber Count		2-8	10-12	14-24
Diameter of Strengthen member (FRP)		2x1.5mm
Reinforcing material		Fiber glass yarn/Kevlar yarn
Diameter of Loose tube(mm)		2.1	2.1	As requirement
Diameter of Cable(mm)		5.2*9.3	5.2*9.3
Gross weight(Kg/Km)		40	40
Min. bending radius		Static 30xD Dynamic 40xD
Max. tensile force, N		Short term/ Long term 1000N/400N
Max Crush Resistance(N/100mm)		Short term/ Long term 1000N/300N
Allowable Temperatures	operation	-40°C - +60°C
	storage	-50°C - +70°C
	install.	-20°C - +50°C
