Aerial Insulated Power Transmission Aluminum Conductor Multi Core ABC Cable

Name: Aerial Insulated Power Transmission Aluminum Conductor Multi Core ABC Cable
Brand: all-electronics-online.com
SKU: 732035202
Availability: InStock
Rating: 4.8 (110 reviews)

Price:	US $ 0.18-38/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JKLYJ
Cable Type:	ABC
Standard:	IEC UL
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	CCC
Sheath Material:	No Sheath
Wire Core Material:	AAC
Model:	Jkyj ABC
Brand:	Hongda

Product Description

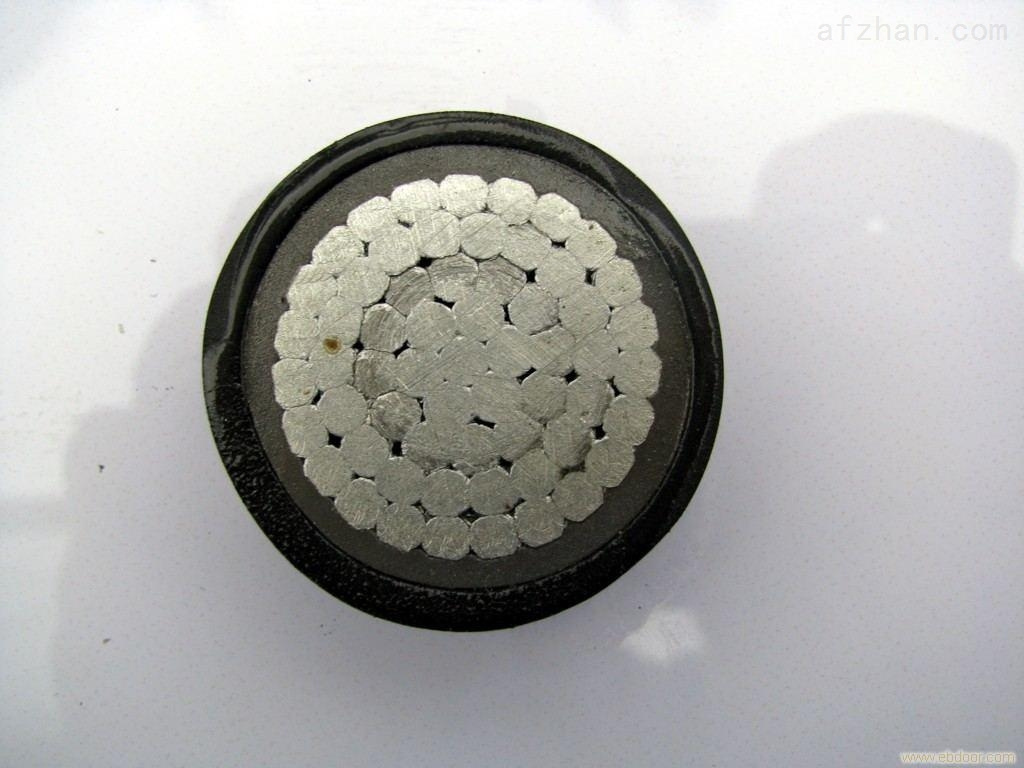

Aerial Insulated Power Transmission Aluminum Conductor Multi Core ABC Cable

ABC Cable are overhead power lines using several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. They can improves safety and reliance of electrified wire netting.

Type and Application

Type	Application
Duplex Service Drop	To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.
Triplex Service Drop	To supply power from the utility's lines to the consumer's weatherhead.For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximumfor polyethylene insulation 90°C maximum for crosslinked insulation.
Quadruplex Service Drop	Used to supply 3 phase power, usually from a polemounted transformer, to the user'sservice head where connection to the service entrance cable is made. To be used at voltages of 600volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethyleneinsulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors.

Aerial bundle cable / Triplex Service Drop-Aluminum Conductor, ASTMB-232
Code Name	Phase Conductors(AAC)				Bare Neutral(AAAC)		Weight			Ampacity
	Size/no of wires	Insulation thickness	Nominal Diameter		Size/no of wire	rated strength	XLPE	Aluminum	Total
		Insulation thickness	Bare	OD		rated strength	XLPE	Aluminum	Total
		mm	mm	mm		kg	kg/km	kg/km	kg/km	A
Fulgur	3/0-19	1.52	11.9	15	1/0-7	2023	168	650	819	242
Balanus	3/0-19	2.03	11.9	16	1/0-7	2023	216	650	868	242
Stonecrab	3/0-7	1.52	11.8	14.8	3/0-7	3080	165	752	917	242
Flustra	3/0-7	1.52	11.9	15	3/0-7	3080	168	752	920	242
Crisia	3/0-19	2.03	11.9	16	3/0-7	3080	216	752	969	242
Squid	4/0-7	1.52	13.3	16.3	2/0-7	2431	191	820	1011	279
Arca	4/0-19	1.52	13.4	16.5	2/0-7	2431	192	820	1012	279
Bugula	4/0-19	2.03	13.4	17.5	2/0-7	2431	246	820	1066	279
Kingerab	4/0-7	1.52	13.3	16.3	4/0-7	3883	191	948	1137	279
Lepas	4/0-19	1.52	13.4	16.5	4/0-7	3883	192	948	1140	279
Cassi	4/0-19	2.03	13.4	17.5	4/0-7	3883	246	948	1194	279

company information:

Packing:

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).

Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
