| Prod Model: |
AF/AFP/AF-1/AFP-1/AFPF/AFS |
| Wire Color: |
as Per Customer′s Requirement |
| Wire Packing: |
PP+Carton |
| Shape: |
Round Wire |
| Voltage: |
450/750V |
| Electrical Wire Type: |
Fire Flame Retardant |
| Electrical Wire Conductor: |
Copper |
| Electrcial Wire Shealth Material: |
PVC |
| Cable Standard: |
IEC60332 |
| Cable Packing: |
Plastic Reel |
| Cable Sectional Area: |
1.5mm2-16mm2 |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Building |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Upward |
Product Description

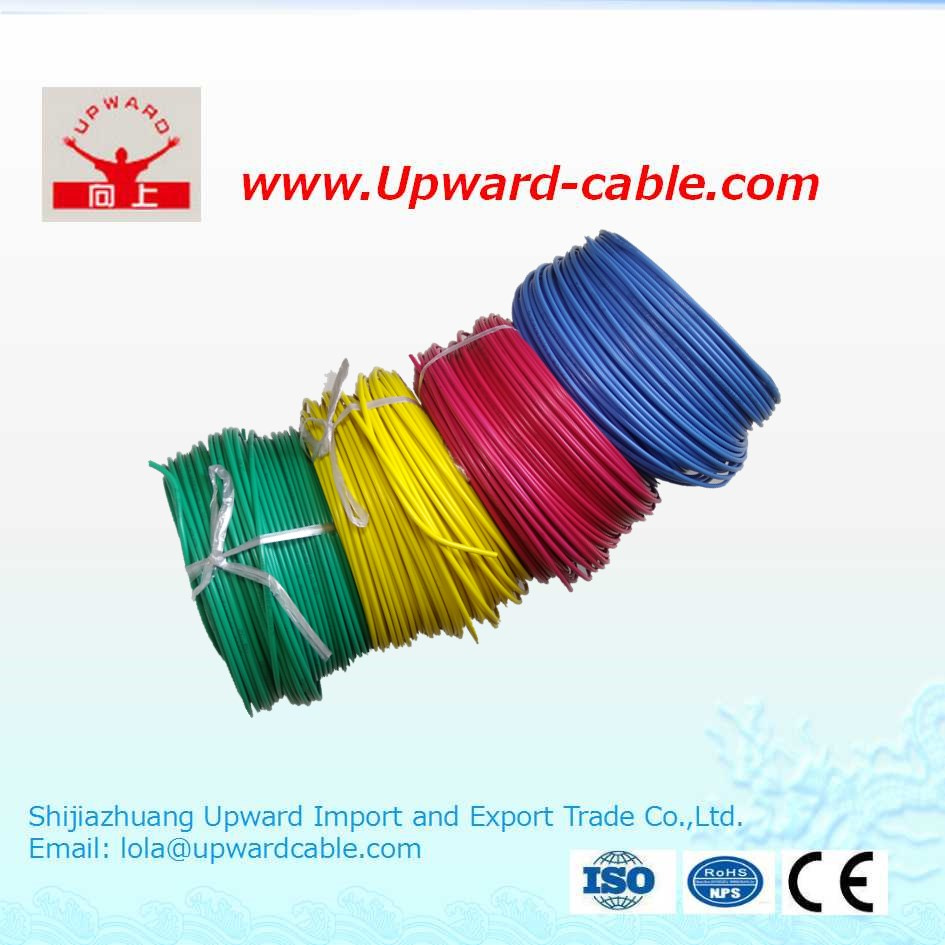

Product Name: AF-200 special cable&wire
Features:
1. AF-200 special cable&wire
2.Nominal voltage:AC 50HZ,
AF/AF-1=1000V/min,
AFP/AFP-1/AFPF/AFSF=500V/min
3. Small OD,light weight,heat-resistance,cold-resistance,soft,aging-resistance,anti-interference
4.Operating temperature:-60~+250.
Application:mainly design foe the connectin of electrical equipment and the connction of internal circuit of electrical instruments.
Specification
Cores×nominal cross section area (mm²) | Core construction Core no./diameter | Maximum Outer diameter of electric wire (mm) | | | | | | | | When 20degree DC resistance ≤ Ω/Km |
| | | AF AF-1 | | | AFP AFP-1 | | | AFPE | | |
| | | ONE CORE | TWO CORE | THREE CORE | ONE CORE | TWO CORE | THREE CORE | ONE CORE | TWO CORE | |
| 0.013 | 7/0.05 | 0.57 | 1.14 | 1.23 | 1.0 | 1.8 | 1.9 | 1.5 | 2.3 | 1400 |
| 0.035 | 7/0.08 | 0.67 | 1.34 | 1.44 | 1.1 | 2.0 | 2.1 | 1.6 | 2.5 | 600 |
| 0.05 | 10/0.08 | 0.72 | 1.44 | 1.55 | 1.2 | 2.1 | 2.2 | 1.7 | 2.6 | 370 |
| 0.07 | 14/0.08 | 0.75 | 1.5 | 1.62 | 1.3 | 2.2 | 2.3 | 1.8 | 2.7 | 260 |
| 0.10 | 21/0.08 | 0.85 | 1.7 | 1.83 | 1.4 | 2.4 | 2.5 | 1.9 | 2.9 | 180 |
| 0.12 | 24/0.08 | 0.88 | 1.76 | 1.90 | 1.5 | 2.5 | 2.7 | 2.0 | 3.0 | 150 |
| 0.14 | 30/0.08 | 0.9 | 1.8 | 1.94 | 1.5 | 2.5 | 2.7 | 2.0 | 3.0 | 125 |
| 0.20 | 42/0.08 | 1.0 | 2.0 | 2.15 | 1.5 | 2.7 | 2.9 | 2.0 | 3.2 | 100 |
| 0.25 | 56/0.08 | 1.15 | 2.3 | 2.48 | 1.7 | 3.0 | 3.2 | 2.2 | 3.5 | 90 |
| 0.30 | 62/0.08 | 1.18 | 2.36 | 2.54 | 1.7 | 3.1 | 3.3 | 2.2 | 3.6 | 70 |
| 0.35 | 75/0.08 | 1.2 | 2.40 | 2.58 | 1.9 | 3.2 | 3.4 | 2.4 | 3.7 | 60 |
| 0.40 | 85/0.08 | 1.39 | 2.78 | 3.0 | 2.0 | 3.5 | 3.7 | 2.5 | 4.0 | 55 |
| 0.45 | 95/0.08 | 1.45 | 2.9 | 3.12 | 2.1 | 3.6 | 3.8 | 2.6 | 4.1 | 50 |
| 0.50 | 105/0.08 | 1.5 | 3.0 | 3.23 | 2.1 | 3.7 | 4.0 | 2.6 | 4.2 | 42 |
| TYPE | cores×nominal cross section area(mm²) | Core construction No./diameter (mm) | Maximum Outer diameter (mm) | When 20degree DC resistance ≤ Ω/Km | Re. weightkg/km |
| AFSP | 2*0.013 | 7/0.05 | 1.2 | 1400 | 2.56 |
| AFSP | 2*0.035 | 7/0.08 | 1.5 | 600 | 3.85 |
| AFSP | 2*0.05 | 7/0.1 | 1.9 | 370 | 4.32 |
| AFSF | 2*0.035 | 7/0.08 | 1.9 | 600 | 2.9 |
| AFSF | 2*0.05 | 7/0.1 | 2.1 | 370 | 3.4 |
| AFSF | 2*0.07 | 14/0.08 | 2.8 | 260 | 3.8 |
The cable can be of flame retardance, fire resistance, environment friendly or other property. OEM Available. Single Core 13-15AWG Cable Wires is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.

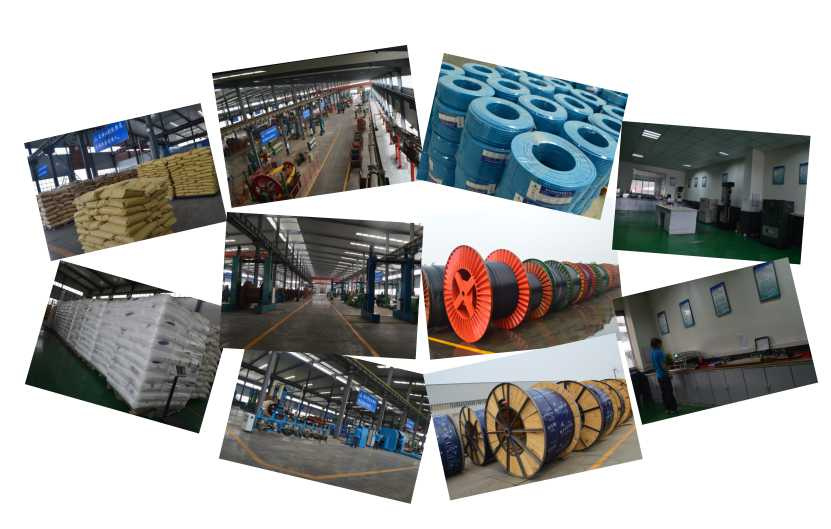

Our factory

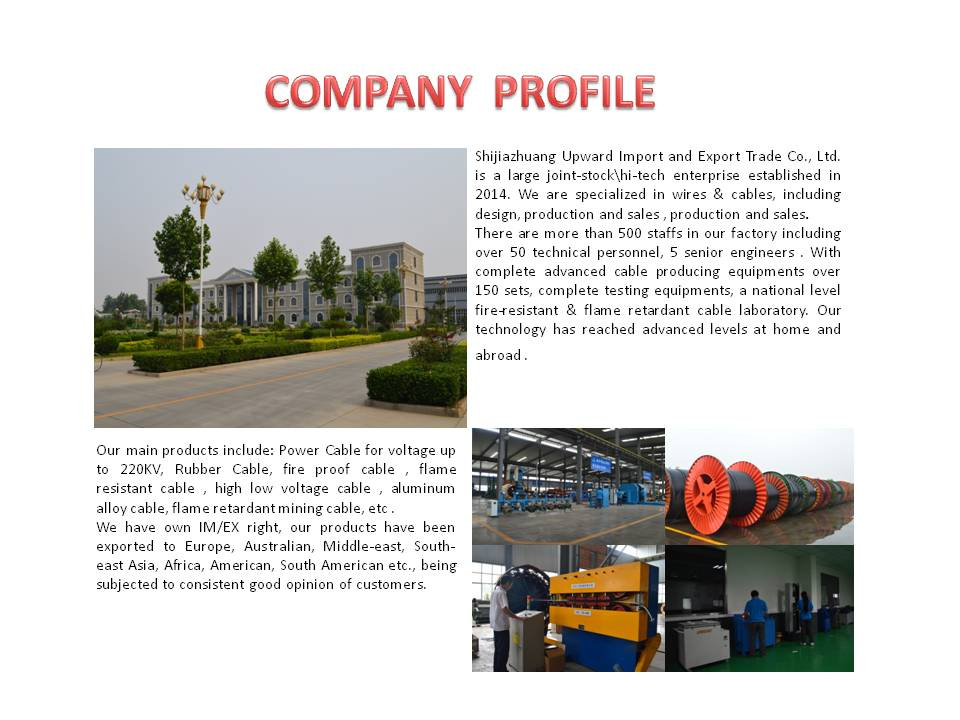

Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.
The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.

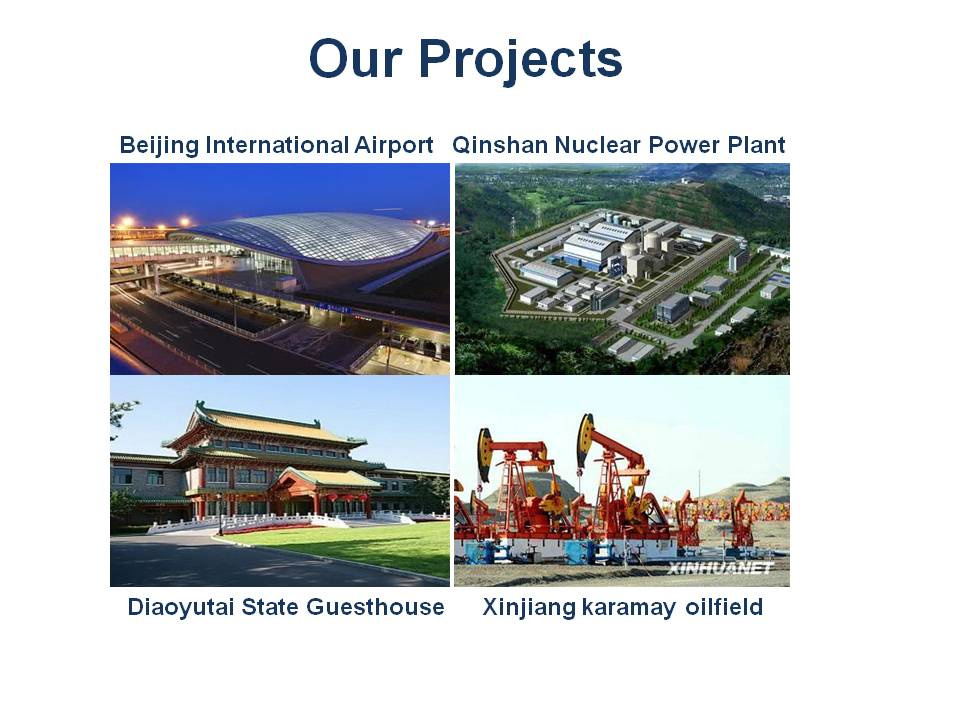

For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
