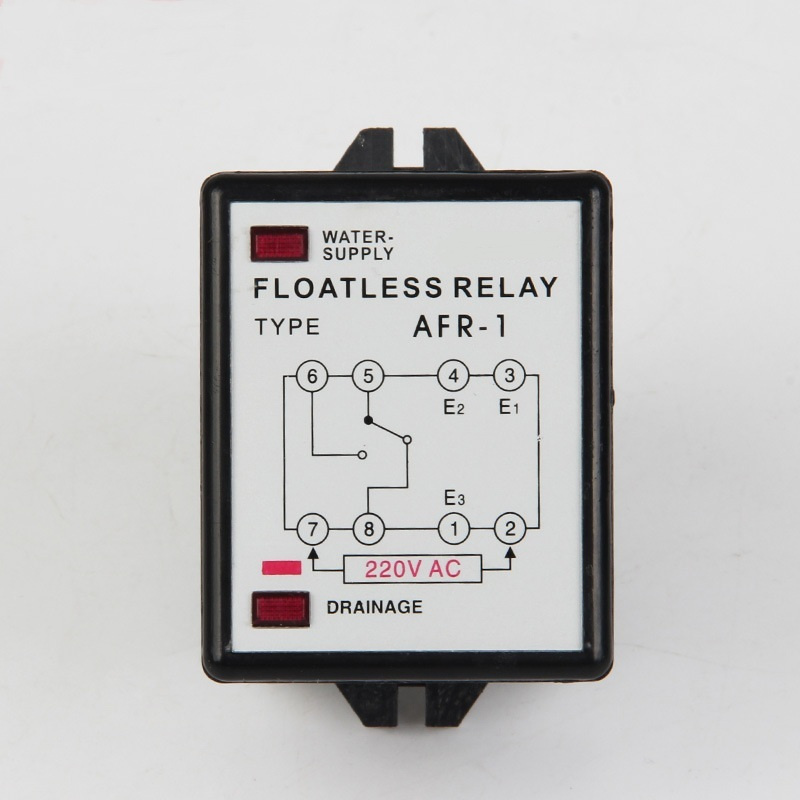

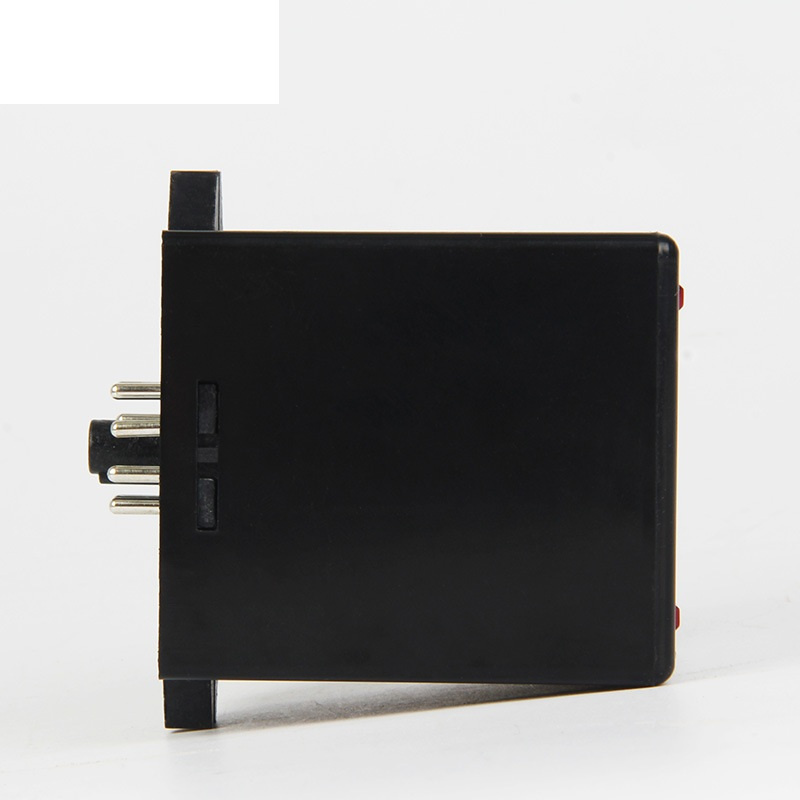

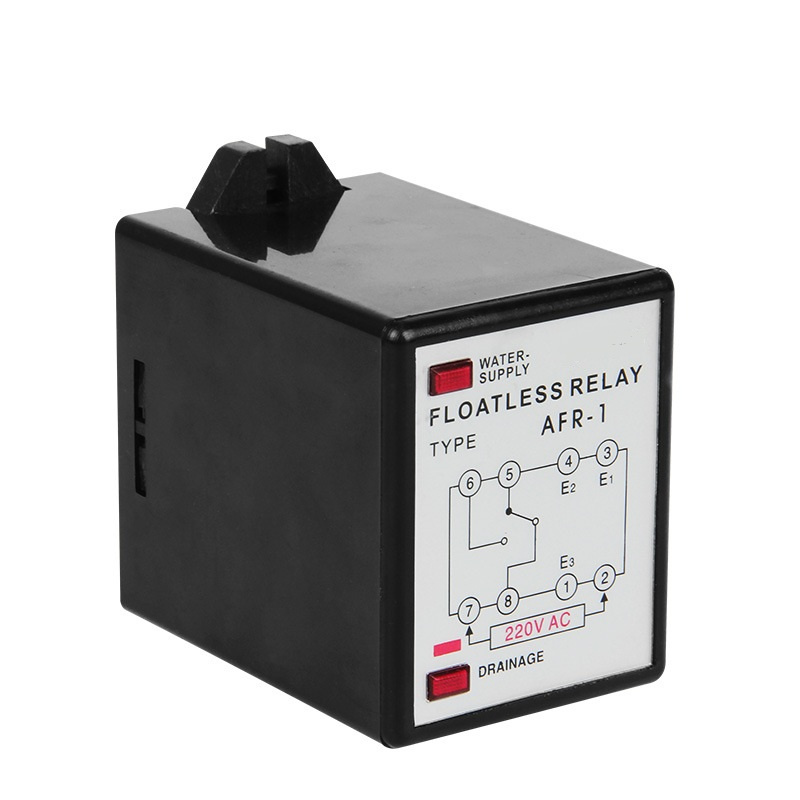

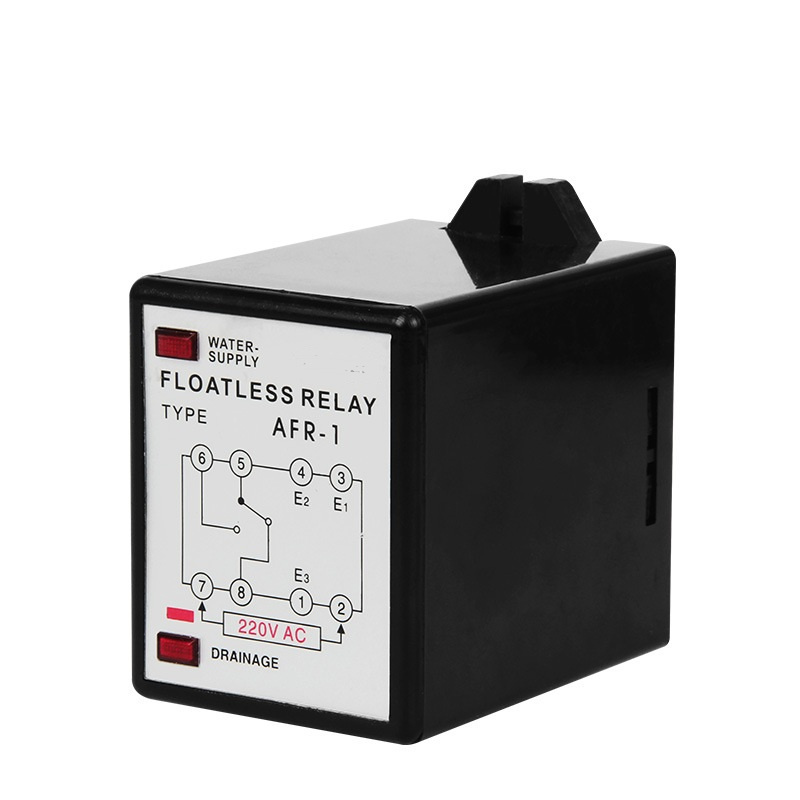

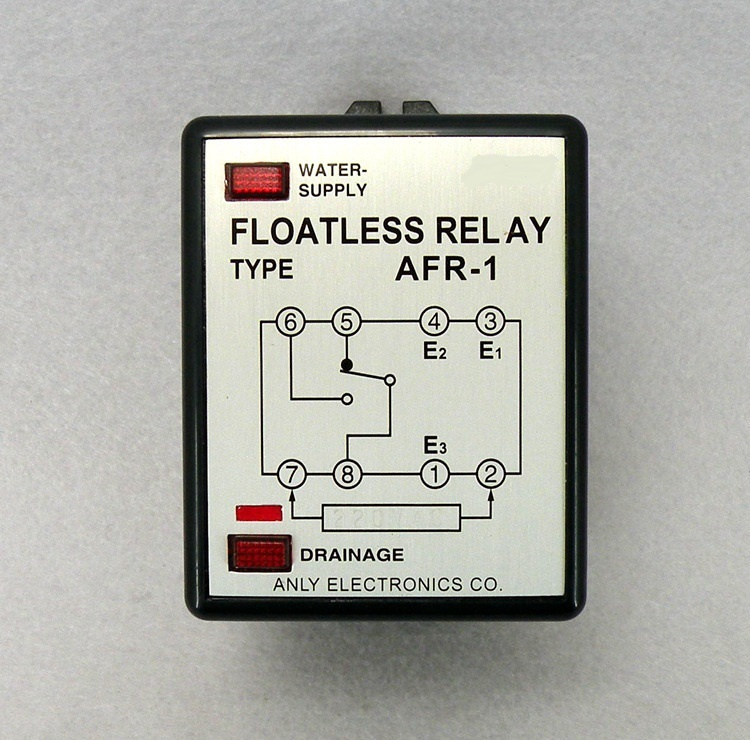

Afr-1 240V 50/60Hz Power Electrical Control Liquid Level Switch Floatless Relay

Name: Afr-1 240V 50/60Hz Power Electrical Control Liquid Level Switch Floatless Relay
Brand: all-electronics-online.com
SKU: 731209612
Availability: InStock
Rating: 4.3 (87 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	AFR-1

Product Description

Floatless relay AFR-1 Description:

- Can be used in building buildings, integrated community residential buildings,
sewers, as well as agricultural water,water purification, sewage treatment plants,
the General Factory of a variety of liquid level treatment, the use of a wide range of.
- Ideal for level control of any conductive liquid
- Automatic Water Supply and Drainage Control
- Power Supply
Non universal voltage: AC(V)110 -120, 220 -240 50/60Hz .
- Contact output: 5 A at 250 VAC/30 VDC, resistive load .
- Independent DPDT contacts
- Water level probe with PS-3S

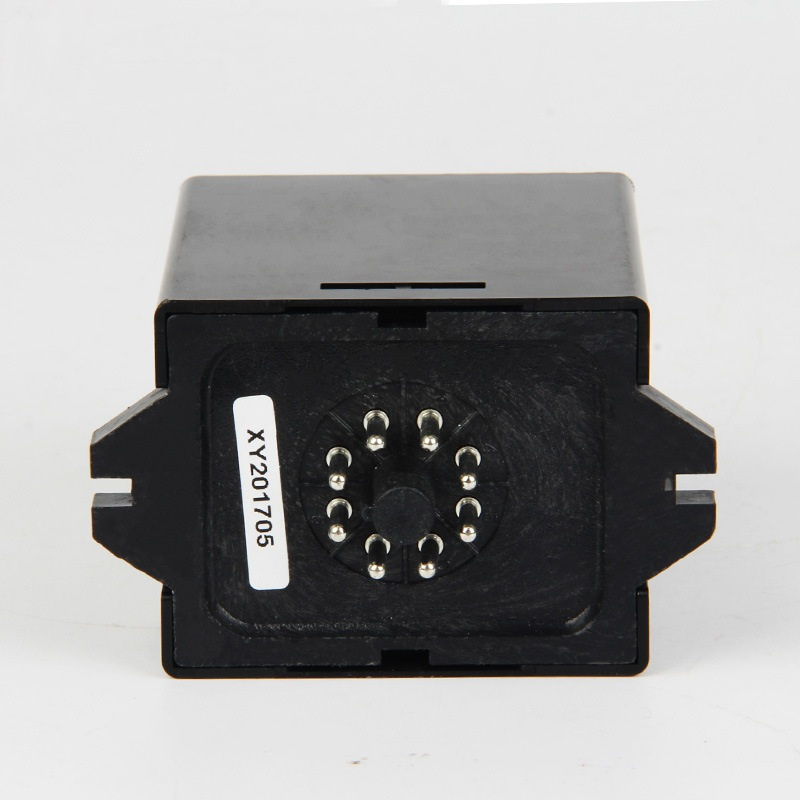

- Socket mounted with a PF083A(E) Socket
- With two LED action shows that the status of its action at a glance.

Technical Data:

Dimensions (mm)	61H×49W×70D
Socket type	PS-08 PF-083A(E)
Sens-ing mode	General
Rated voltage	AC:110V,220V,240V,50/60HZ
Indicator operating	Two LED's use for two status
Operate voltage	85~110% of rated voltage
Second voltage	8VAC(excep high sensing 24VAC)
Operate Resistance	4 KΩ min General
Release resistance	15 KΩ min General
Response time	Operate:80msec max, Release:160 msec max.
Contact rating	5A,250VAC(Resistive load)
Length of cable	1Km max.(General)
Mechanical Life	5×106times
Electrical Life	105times
Insulation resistance	100MΩ(DC 500V)min
Dielectric strength	1500VAC,50/60HZ
Consumed power	3.2VA
Ambient temperature	-10ºC~+55ºC
Ambient humidity	48~85%RH
Weight	200g

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
