| Prod Model: |
QA17C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current Rating: |
6A-63A |
| Pole No.: |
1p.2p.1p+N |
| Structure: |
MCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Poles Number: |
2 |
| Certification: |
CE |
| Operation: |
Manual Type |
Product Description
1. Product Description

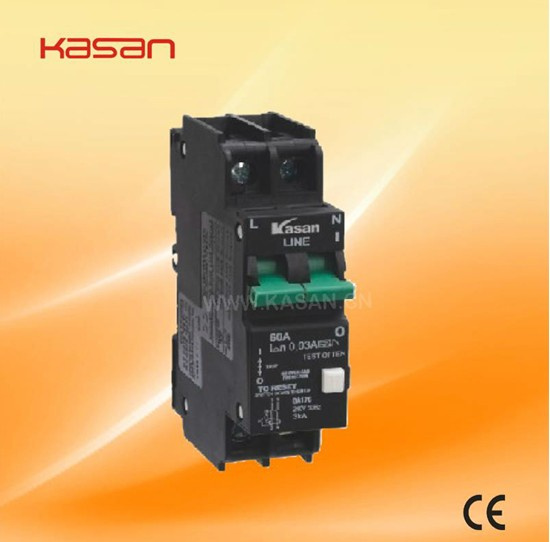

QA17C series Residual Current Circuit Breaker without over current protection conforms to the standards of GB16916.1, IEC61008, BS4293 etc. It is used in the circuits of AC 50~60Hz, single phase 230V(220V), three phases 400V (380V) in industrial & mining enterprises, commercial buildings and
2. Product Description
QA17C series Residual Current Circuit Breaker without over current protection conforms to the standards of GB16916.1, IEC1008, BS4293 etc. It is used in the circuits of AC 50~60Hz, single phase 230V(220V), three phases 400V (380V) in industrial & mining enterprises, commercial buildings and housing for protection of personal electric shock hazard and electric equipment and for unfrequent switchover of
Circuits under normal conditions.
SA AF QA QF and DIN Ranges
|
|
1. Special Earth Leakage Protection Devices |
Earth Leakage protection Devices Abbreviation Codes |
|
All Products manufactured by CBI to meet special non-standard requirements of customers |
Suffix A Earth leakage protection device with overload. Single pole and Neutral / 3 pole and Neutral versions |
|
2. Standard Current Ratings |
|
Ampere ratings indicated are standard. Non-standard ratings can be provided (POR) |
Suffix C Earth leakage protection device ( switch disconnector) single pole and 3 pole versions |
|
3. Earth Leakage Protection Device Sensitivities |
|
Sensitivities indicated are standard. Non-standard sensitivities can be provided (POR) |
Suffix D Din Rail Mounting only (Escutcheon Height 45MM
|
Residential +Commercial/ Industrial Clip in Earth Leakage Protection
|
Residential Earth Leakage Protection Device Single Device Single Phase with Overload Protection
|
|
Type |
Poles |
Voltage |
KA |
MA |
Width (mm) |
Rating (A) |
STD Pack |
|
QA17A |
1+N |
230VAC |
2.5 |
30 |
26 |
15 20 30 40 50 63 |
10 |
Residential Earth Leakage Protection Device (Switch Disconnector) single Phase without overload protecton
|
|
QA17C |
1+N |
230VAC |
2.5 |
30 |
26 |
63 |
10 |
Residential Earth leakage Protection Device, 3 phase with overload protection
|
|
SA36A |
3+N |
415VAC |
2.5 |
30 |
78 |
15 20 30 40 50 63 |
5 |
Residential Earth Leakage Protection Device (Switch Disconnector) 3 phasw withour overload protection
|
|
SA36C |
3+N |
415VAC |
2.5 |
30 |
78 |
60 |
5 |
Commerical/ Industrial Earth Leakage Protection Device Single phase with overload protection
|
|
QF17A |
1+N |
230VAC |
5 |
30 |
26 |
15 20 30 40 50 63 |
10 |
|
QF14A-D |
1+N |
240VAC |
6 |
30 |
36 |
6 10 16 20 30 40 50 63 |
10 |
Commerical/ Industrial Earth Leakage Protection Device, Single Phase with overload protection. Mini Rail Mounting
|
|
SF15A |
1+N |
240VAC |
5 |
30 |
65 |
80 100 |
10 |
Commercial/ Industrial Earth leakage protection Device (Switch Disconnector) Single Phase without overload portection
|
|
QF17C |
1+N |
230VAC |
5 |
30 |
26 |
63 |
10 |
|
QF14C-D |
1+N |
240VAC |
6 |
30 |
26 |
63 |
10 |
