African Electric Wire 2+E Cable Flat Twin and Earth Wire

Name: African Electric Wire 2+E Cable Flat Twin and Earth Wire
Brand: all-electronics-online.com
SKU: 793796295
Availability: InStock
Rating: 4.9 (115 reviews)

Price:	US $ 2.3/Roll
Min Order:	20/Roll
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	2+E
Standards:	60227
Core:	2core with Earth
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Brand:	Huatong

Product Description

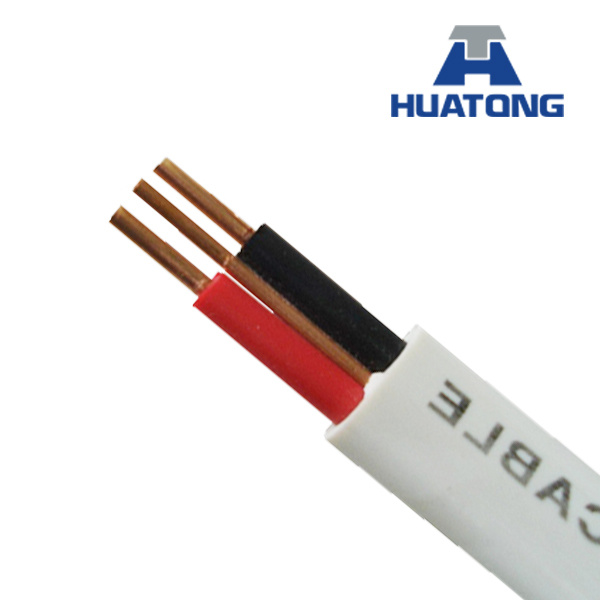

African Electric Wire 2+E Cable Flat Twin and Earth Wire

1, The national certification of qualified manufacturers
2, Standard: GB 5023.1, IEC 60227
3, CE, RoHS, ISO Certificate
Application: Suitable for Electrical appliances, switch, lighting, distribute, surface wiring, indoor or outdoor
Specificaton: Solid or stranded copper conductor or CCA conductor, PVC insulated and PVC sheathed cables.
Rated Voltage: 300/500 V, 450/750V
Insulation color: Black, red, blue, yellow
Sheath color: White, grey
Size: 2X1.5mm+E; 2X2.5mm+E; 2X4mm+E; 2X6mm+E

Item Spec.	Nominal cross section (mm2)	No./Diameter of conductor (mm)	No./Diameter of Earth core (mm)	Insulation thicknsee (mm)	sheath thicknsee (mm)	Max.outer diameter (mm)	Ref .Weight(km/kg)	Conductor resistance at 20°C≤(Ω/km)
Flat Cable 2Cores+E ( BVVB )	2×1.0+E	2×1/1.13	1/0.85	0.6	0.9	4.5×8.2	64.16	18.1
Flat Cable 2Cores+E ( BVVB )	2×1.5+E	2×1/1.38	1/1.13	0.7	0.9	5.1×9.2	89.52	12.1
Flat Cable 2Cores+E ( BVVB )	2×1.5+E	2x7/0.52	7/0.43	0.7	0.9	5.3×9.4	91.52	12.1
Flat Cable 2Cores+E ( BVVB )	2×2.5+E	2×1/1.78	1/1.38	0.8	1	5.4×10.1	128.36	7.41
Flat Cable 2Cores+E ( BVVB )	2×2.5+E	2×7/0.68	7/0.52	0.8	1	5.6×10.3	130.36	7.41
Flat Cable 2Cores+E ( BVVB )	2×4+E	2×1/2.25	1/1.78	0.8	1	5.9x11.8	180.56	4.61
Flat Cable 2Cores+E ( BVVB )	2×4+E	2×7/0.85	7/0.68	0.8	1	6.1x12.1	202.66	4.61
Flat Cable 2Cores+E ( BVVB )	2×6+E	2×1/2.76	1/2.25	0.8	1.1	6.7×12.8	247.18	3.08
Flat Cable 2Cores+E ( BVVB )	2×6+E	2×7/1.04	7/0.85	0.8	1.1	6.9×13.3	267.18	3.08
Flat Cable 2Cores+E ( BVVB )	2×10+E	2×7/1.35	7/1.04	1	1.2	7.8×14.5	435.05	1.83

Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.

Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.

In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
