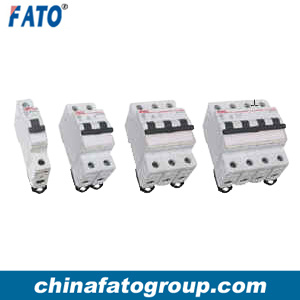

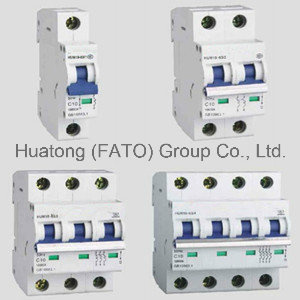

AG Series Mini Circuit Breaker (GE Design)

Name: AG Series Mini Circuit Breaker (GE Design)
Brand: all-electronics-online.com
SKU: 606251044
Availability: InStock
Rating: 4.9 (46 reviews)

Price:	Negotiable/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	AG
Rated Current:	2-40A
Rated Voltage:	240/415V
Mechanical/Electrical Life:	20000/10000
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	1,2,3,4p

Product Description

Production Despriction:
Safety terminal
Easy wiring
No wrong fixing
Protection degree IP20.
Pozidriv and slot screw head.
Torque up to 4.5 N. M.
Incoming/outgoing terminal capacity up to 35 mm² or 2 x 16 mm².
Terminal side for fork busbar is isolated between the poles.
MCB'S and RCCB'S can be connected with PIN type busbar at the top terminals.
MCB'S and RCCB'S can be connected with PIN type busbar at the bottom terminals, with easy DIN-rail extraction.
MCB'S and RCCB'S can be connected with FORK type busbar at the bottom terminals, with easy DIN-rail extraction.
Auxiliary contacts can be added on the left hand side of the MCB.

Performances:

Thermal setting In (A)	240
Rated voltage AC Un (V)	240/415
Minimum operating voltage Up min (V)	12
Tripping characteristics	B-C
Selectivity class	3
Mechanical/electrical endurance	20000/10000
Poles	1, 2, 3, 4
Terminal capacity flexible/rigid cable (mm2)	25-35
Weight (g/pole)	120

Trivialization according to IEC 60068-2 95%RH at 55° C
Thermal operating limit (1.13-1.45)× In
Magnetic operating B: (3-5)× In C: (5-10)× In

Why do you choose us?

FATO group founded in 1986, is one of the most respected nationwide manufactures and exporters of low voltage, complete electrical apparatus, instrument, transformers etc.
FATO group has more than 20 holding companies, more than 600 sales companies and more than 20 overseas sales agents.
FATO group has more than 2800 staff, more than 18000 M² production area.
Our products have passed through the domestic and foreign authentications ISO9001, ISO14001, OHSAS18000, CCC, CB, CE, SEMKO, KEMA, TUV, UL, RoHS, and so on..

Founded in 1987, Huatong (FATO) Group Co., Ltd. is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China. The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 2, 000 employees. During the past 18 years, the Group has invested heavily in both research and development and employee training programs, resulting in a wide range of products that meet the most rigorous requirements of international organizations such as CCC, CE, UL, BS, and ISO14001 etc. In 2001 Vouching Technical Inspection Ltd. As an ISO9001 recognized us: 2000 certified enterprise. In 2004 we were recognized as ISO14001 certified enterprise.

Currently, we manufacture and export more than 80 varieties of products, with over 1000 types of low voltage electrical apparatus including all kinds of Circuit breakers, Contactors, Relays, Starters, Switches, Panel meters, Fuses, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology" can help us survive and succeed in today's highly competitive market. Hence, we guarantee high quality of all our products, because they all have undergone strict quality control and meet high standards.
