| Prod Model: |
CS12-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
520*240*245mm |
| Voltage: |
12V |
| Capacity: |
200 |
| Warranty: |
3 Years |
| Weight: |
58kg |
| Color: |
Black |
| Expected Cycle Life: |
10-12years |
| Delivery Time: |
7 Days |
| Certificate: |
ISO, UL, CE |
| Brand Name: |
Cspower/OEM |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
AGM Battery 12V200ah |
Product Description

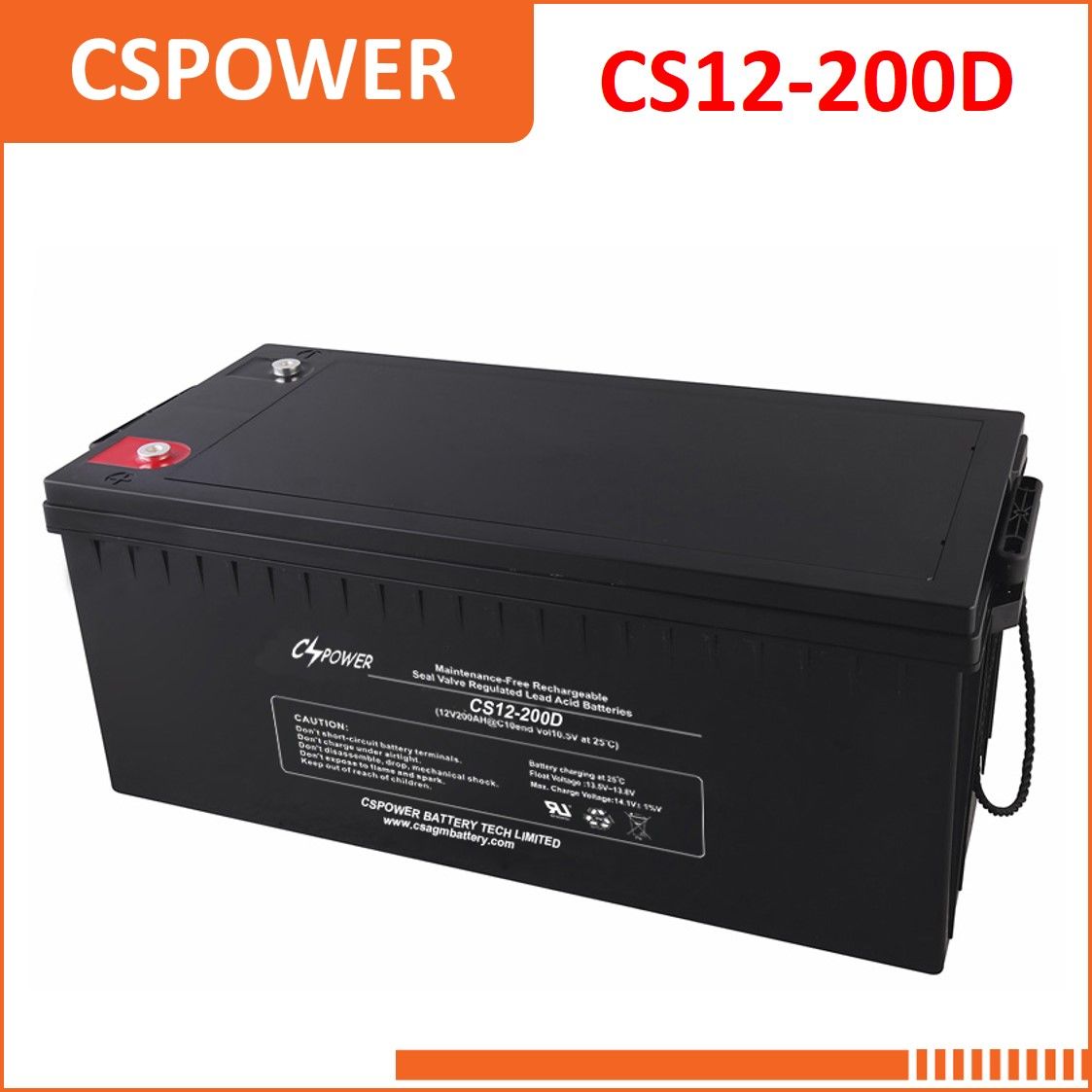

Model: AGM Battery CS12-200
Size: 522*240*218*242mm
Weight: 56kgs
Delivery time: 10-15days
Certificates: CE, IEC, ISO
Warranty: 3years
Basic Info.
Model No.: CS12-200D
Type: AGM Battery
Chargeable: Chargeable
Shape: Rectangle
Nominal Voltage: 12V
Usage: UPS, Electric Power, Lighting, Solar & Wind Power System
Voltage: 12V
Capacity: 200ah
Life Span: 10-12 Years
Warranty: 3Years
Maintenance Type: Free
Application: UPS, Solar PV System, Wind Power
Sealed Type: Sealed
Certificate: CE, UL, ISO
Export Markets: Global
Additional Info.
Trademark: CSPOWER
Packing: Pallet /Carton
Standard: 520*240*245mm
Origin: Guangdong, China
Production Capacity: 100000PCS/ Month
Product Description
AGM deep cycle battery:
1. Rechargeable, free maintenance, special for solar power system
2. Lifetime 10-12years.
3. Warranty 3 years
Description:
Deep Cycle Battery is mainly made up of positive and negative plates, special diaphragm, deep electrolyte, battery shell and security valve and so on. Through colloid technology, the electrolyte is fixed in solid state in battery. The advanced AGM battery had greatly improved the cycling performance (cycling increased 80%) by adopting the unique grid alloy and the high-density lead paste formula The Deep Cycle series are specially designed for applying in solar energy photovoltaic power system.
Features:
1. Special additives make battery have superior high discharge current performance
2. A large number of statistical techniques used in production
3. Multiple levels of security
4. High density lead paste, High temperature and humidity curing process, Long life span
5. High-strength ABS plastic shell
6. Long designed life, it can reach up to 8years
7. Charge and discharge cycle more than 1000times.
Application
Standby use
1. Home& office with unstable power
2. Solar power system&wind turbine system
3. UPS back up
4. Computerized telephone
5. Mobile communication system
6. DC mains system
7. Emergency lighting of safety.
Recycle use:
1. Movable electrical appliances
2. Emergency lamp
3. Electrical toy
4. Medical applicances
5. Electrc vehicle
OUR BATTERY MATERIAL ADVANTAGES:
1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic.
2) 99.99% pure new lead never use recycle lead.
3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
4) High quality AGM separator
5) Positive plates: PbCa grids minimize corrosion and prolong life.
6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
7) Vent Valve: Allows the release of the excess gas automatically for safety.
| Battery Model | Nominal Voltage(V) | Rated capacity 10HR(AH) | Dimensions | WEIGHT(approx)(kg) | terminal type |
| Length(±1)(mm) | WIDTH(±1)(mm) | Height(±2)(mm) |
| CS12-250D | 12 | 250 | 520 | 240 | 220 | 59 | C1 |
| CS12-200D | 12 | 200 | 520 | 240 | 220 | 58 | C1 |
| CS12-150D | 12 | 150 | 480 | 170 | 250 | 38 | C1 |
| CS12-100D | 12 | 100 | 350 | 170 | 245 | 28 | C1 |
| CS12 -65D | 12 | 65 | 350 | 168 | 188 | 22.5 | C1 |
| CS12-40D | 12 | 40 | 196 | 165 | 170 | 14 | C1 |
| Component | Cover | Safety Valve | Positive Plates | Negative Plates | Terminal | Lead | Separator |
| Raw Material | ABS | Rubber | Lead Dioxide | Lead | Copper | Pure 99.994% | Fiberglass |
