| Prod Model: |
CG12-38 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
198*166*174*179mm |
| Voltage: |
12V |
| Capacity: |
38ah |
| Terminal: |
T1 |
| Weight: |
12.8kg |
| Color: |
Black |
| Export Market: |
Global |
| OEM: |
Available |
| Certificate: |
ISO, UL, CE |
| Brand Name: |
Cspower |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

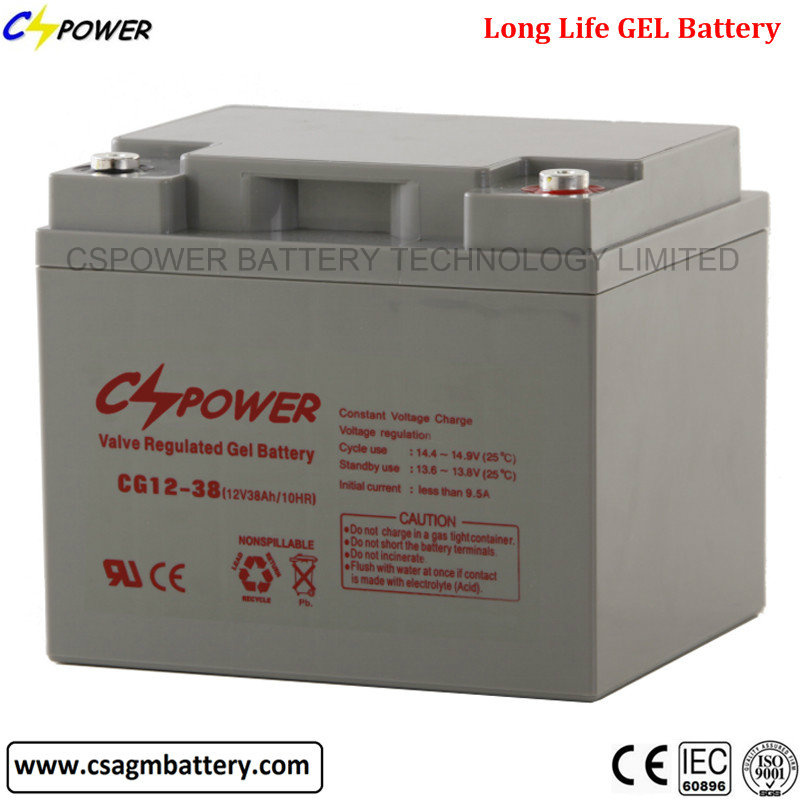

AGM/Gel 12V38ah Deep Cycle Solar Battery
Basic Info.
Model NO.: CG12-38
Type: Lead-Acid Batteries
Chargeable: Chargeable
Shape: Square Battery
Nominal Voltage: 12V
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat
Material: Gel Lead-Acid Battery
Voltage: 12V
Nominal Capacity: 38A
Sealed Type: Sealed
Terminal: Cooper & Lead
Maintennance: Free
Color: Black
Size: 198*166*175mm
Weight: 12kg
OEM: Accepted
Export Markets: Global
Additional Info.
Trademark: CSPOWER
Packing: Paper Box / Unit
Standard: CE, ISO. UL
Origin: Guangzhou, China
HS Code: 8507200000
Production Capacity: 100000 Units/ Month
Product Description
AGM/GEL 12V38AH deep cycle solar battery for Alarm&Firefighting System
QueensWing Battery:
Vrla battery: 12V 5A 7A 12A 17A 24A 38A 65A 100A 120A 150A 200A
Gel battery: 12V 5A 7A 12A 17A 24A 38A 65A 100A 120A 150A 200A
Main Characteristics:
1. Maintenance-Free Operation
Absorbent glass mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of Prostar batteries, no need to check the specific gravity of the electrolyte or add water.
2. Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
3. Long Service Life
A unique corrosion-resistant grid alloy ensures Prostar batteries have long service life.
4. Low Self Discharge
Using high purity raw materials ensures Prostar batteries have less self-discharge.
5. Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
Applied Scope:
1)Communication Systems: Switch, Microwave Stations, Mobile Base Stations, Data Centers,
Radio and Broadcasting Stations.
2)Motivity Field: Robots, Electric Toys, Electric Tools&Portable Vacuum Cleaners.
3)Solar&Wind Power Generation Systems
4)EPS&UPS Systems
| Nominal Voltage | 12V |
| Nominal Capacity (20 hour rate) | 38Ah |
Capacity
25 o C
(77°F) | 10 hour rate (2.11A) | 35Ah |
| 5 hour rate (6.94A) | 30Ah |
| 1 hour rate (25.3A) | 25.3Ah |
| Internal Resistance | Full Charged Battery 25
o C |
≤10mΩ |
Capacity affected by Temperature
(10 hour ) | 40 o C
(104°F) | 102% |
25 o C
(77°F) | 100% |
0 o C
(32°F) | 85% |
-15 o C
(5°F) | 65% |
Self-Discharge
25 o C
(77°F) Capacity | after 3 month storage | 90% |
| after 6 month storage | 80% |
| after 12 month storage | 62% |
Charge (Constant Voltage) 25 o C
(77°F) | Float |
Initial Charging Current Less than 9.5A
Voltage 13.6-13.8V |
| Cycle | Initial Charging Current Less than 9.5A
Voltage 14.4-14.9V |
| Battery Dimensions | Length | 198mm |
| Width | 166mm |
| Height | 174mm |
| Total Height | 179mm |
| Box Dimensions | Length | 213mm |
| Width | 179mm |
| Height | 211mm |
| Quantity Per Box | 1 PC per box |
| Net weight Per Cell | 12.5 kg±100g |
| Net weight Per Box | 12.5kg |
| Gross Weight | 12.8kg
|
http://www.csagmbattery.com
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
