AGM Lithium Battery Equalizer for 2V 6V 9V 12V Battery System

Name: AGM Lithium Battery Equalizer for 2V 6V 9V 12V Battery System
Brand: all-electronics-online.com
SKU: 825322235
Availability: InStock
Rating: 4.6 (144 reviews)

Price:	US $ 40/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HA02
Size:	6212472mm
Optimizing Current:	0-10A
Usage:	Boat
Rechargeable:	Non-Rechargeable
Type:	Battery Equalizer
Nominal Voltage:	2.4-12V
Shape:	Rectangle

Product Description

HA02 battery equalizer is used for the batteries which are connected in series to keep the voltage of batteries equal when the batteries are charging or discharging.

When the batteries work in series connection, the batteries voltage maybe will be not same due to the difference of each cell chemical composition and temperature. The voltage difference will be increased with the battery repeated charge-discharge process. This will result in premature failure of the batteries.
HA02 battery equalizer is energy transfer type equalizer, it starts to work when there are 10mV between two batteries. The current will flow from a higher voltage to low voltage.
It can connect with battery system with 24 hours, to keep the system energy balance automatically, no need manual maintenance.

HA02 battery equalizer is suitable for lead-acid batteries(VRLA), lithium iron phosphate batteries(LFP), nickel-cadmium secondary batteries(Ni/CD), and nickel-metal hydride secondary batteries(Ni/MH).
One equalizer can connect 4 batteries once a time, if battery less than the 4, the extra cable can be vacant (positive and negative terminal should be avoided).
The equalizer is not affected with battery connection way, no matter in series or in parallel, both can work.

Specification

Battery nominal voltage	4* (2.4V/3.6V/6V/9V/12V)
Optimizing current	0-10A
Quiescent current	5mA(12V) 1.2mA(2.4V)
Dimensions	6212427 mm
Protection	Reverse polarity protection
Under voltage lock out	1.8V

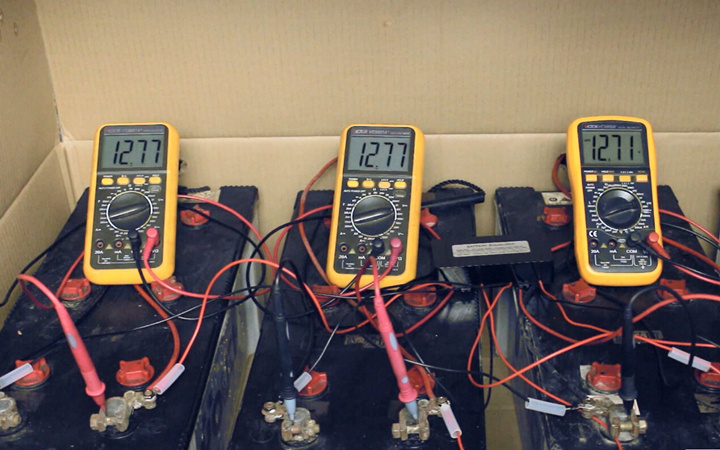

Batteries Voltage Before balance

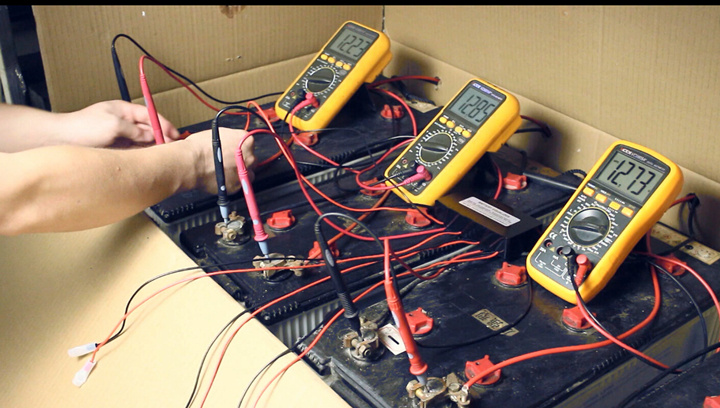

After few mimutes
