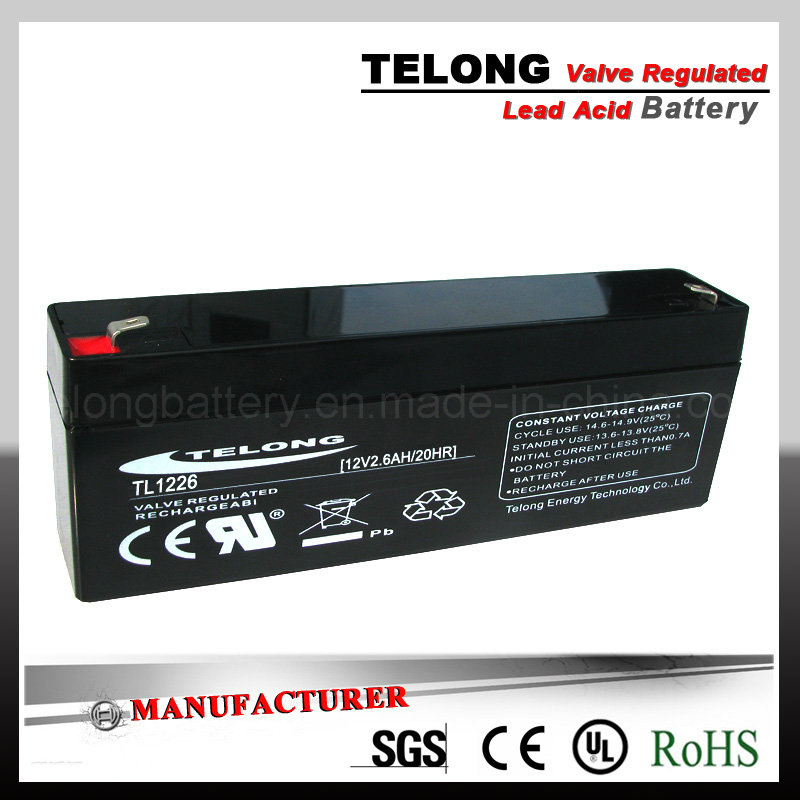

AGM Sealed Lead Acid Battery 12V 2.6ah

Prod Model:	TL1226B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Normal Capacity:	2.6ah
Size:	178(L)*35(W)*60(H)Mm
Weight:	1.0kg
Color:	Black / White or Other
Container Material:	ABS
Charge Voltage (Cycle):	14.4~15.0V
Charge Voltage (Float):	13.5~13.8V
Designed Lifef:	3 Years
Warranty:	1 Year
Type:	Lead-Acid Batteries
Usage:	Alarm System Power Tools,Electric Toys
Rechargeable:	Chargeable
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Nominal Voltage:	12V

Product Description

TELONG TL1226 (12V 2.6ah) AGM Sealed lead acid battery is a maintenance-free VRLA storage battery. It has obtained the CE and RoHS authentication of the European Union, UL recognition the USA. The battery is widely used in emergency lighting system, alarm system,electronic scale and so on.



BATTERY CONSTRUCTION of 12V 2.6ah AGM Sealed Lead Acid Battery

Electrolyte	Positive Plate	Negative Plate	Container
Sulfuric acid	Lead dioxide	lead	ABS
Cover	Safety valve	Terminal	Separator
ABS	Rubber	Copper	Fiberglass

SPECIFICATION of 12V 2.6ah Rechargeable Lead Acid Battery

Nominal Voltage		12V
Rated capacity (20 hour rate)		2.6 Ah
Dimension	Length	178mm (6.94inches)
	Width	35mm (1.37 inches)
	Height	60mm (2.34inches)
Weight Approx		1.0Kg(2.205Ibs)

FEATURE of 12V 2.6ah Maintenance Free Battery

Sealed/Maintenance-Free

As sealed maintenance-free battery, the valve regulated spill proof construction allows trouble-free safe operation in any position. There is no need to add electrolyte, as gases generated during the charge phase are recombined in a unique "oxygen cycle".


Deep Discharge Recovery

Special separators, advanced plate composition and a carefully balanced electrolyte system ensure that the battery has the ability to recover from excessively deep discharge. Because of self discharge, the rechargeable battery may be stored for up to 6 months at 25'C (77'F) and then a freshening charging is required.


Low Pressure Valve Regulators

All batteries feature a series of low pressure one-way relief valves. These valves safely release any excessive accumulation of gas inside the battery and then reseal.


High Discharge Rate

Low internal resistance allows discharge currents of up to ten times the rated capacity of the battery.


Wide Operating Temperature Range

Batteries may be discharged over a temperature range of -40° C to +60° C (-40° F to + 140° F) and charged at temperatures ranging from -20° C to +50° C (-4° F to +122° F).


Rugged Construction

The high impact resistant battery case is made of nonconductive ABS plastic. The case materials impart great resistance to shock, vibration, chemicals and heat. Flame Retardant (FR) battery cases and lids are available where the end application dictates.


Long Service Life

Have a design life of up to five years in standby applications. In cyclical applications up to 1, 000 charge/discharge cycles can be expected depending on average depth of discharge.



CHARACTERISTICS of 12V 2.6ah Storage Battery

Capacity 25'C (77'C)		20 hour rate(0.13A )		2.60AH
		10 hour rate(0.25A )		2.50AH
		5hour rate(0.48A )		2.40AH
		1 hour rate(1.95A  )		1.95AH
Internal Resistance		Full charged Battery at 25  'C(77'F  )		35milli-ohm
Capacity affected by Temp		40'C (104F)		102%
		25'C (77'F)		100%
		0'C (32'F)		85%
		(-15'C )5'F		65%
Self-Discharge 25'C (77'F)		Capacity after 3 month storage		91%
		Capacity after 6 month storage		82%
		Capacity after 12 month storage		64%
Charge (Constant Voltage)		Initial Charging Current less than 0.78 A
		Voltage 14.4-15.0V
		Voltage 13.5-13.8V

APPLICATIONS of 12V 2.6ah UPS Battery

Home Solar System / Control equipments / Emergency Light
Alarm systems / Power tools / Electric toys
Medical equipments / Communication Equipment
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers

Model	Nominal Voltage (V)	Nominal Capacity  (Ah)	Size			NW
			L	W	H
			mm	mm	mm	kg
TL1212	12	1.2	98	45	56	0.55
TL1222	12	2.2	70	47	100	0.74
1223	12	2.3	178	34	60	0.95
TL1226A	12	2.6	70	47	100	0.84
TL1230	12	3	90	70	100	1.25
TL1232	12	3.2	135	67	60	1.35
TL1240	12	4	90	70	100	1.3
TL1245	12	4.5	90	70	100	1.35
TL1255	12	5.5	90	70	100	1.5
TL1260	12	6	151	50	95	1.6
TL1250	12	5	151	65	95	1.8
TL1270	12	7	151	65	95	2
TL1280	12	8	151	65	95	2.25
TL1290	12	9	151	98	95	3
TL12100	12	10	151	98	95	3.05
TL12120	12	12	151	98	95	3.4
TL12140	12	14	151	98	95	4
TL12150	12	15	181	76	168	4.6
TL12170	12	17	181	76	168	4.9
TL12180	12	18	181	76	168	5.3
TL12190	12	19	181	76	168	5.7
TL12200	12	20	181	76	168	5.9
TL12240	12	24	176	166	125	8
TL12280	12	28	176	166	125	8.6
TL12330	12	33	196	133	172	10.5
TL12380	12	38	196	165	175	13
TL12450	12	45	196	165	175	15
TL12550	12	55	230	138	208	15.5
TL12600	12	60	348	168	178	18.5
TL12650	12	65	348	168	178	20.5
TL12800	12	80	348	168	178	23
TL12900	12	90	307	170	208	26
TL121000	12	100	328	171	214	30
TL121200A	12	120	328	171	214	31.5
TL121200B	12	120	409	177	229	35
TL121500	12	150	483	170	240	43
TL122000	12	200	522	240	219	60
TL122200	12	220	522	240	219	65
TL122500	12	250	520	268	220	74

OTHER INFORMATION


1	Logo: silk printing
2	Packaging: in Carton Box Packing in Wooden Pallet
3	Payment terms: T/T(with 30% deposit); L/C at sight
4	Date of delivery: 25-35 days after receipt of the deposit
5	Loading port: Shenzhen (China)
6	Sample charge: FREE
7	The price of the battery is based on Lead Price of RMB12500-13000/ton. The above price  would be revised upwards or downwards byaround 2% with every increase or decrease of RMB500/Ton in the lead price at SMM.(Shanghai Nonferrous Metal Market).Please visit http://www.smm.cn for the latest price at SMM.
