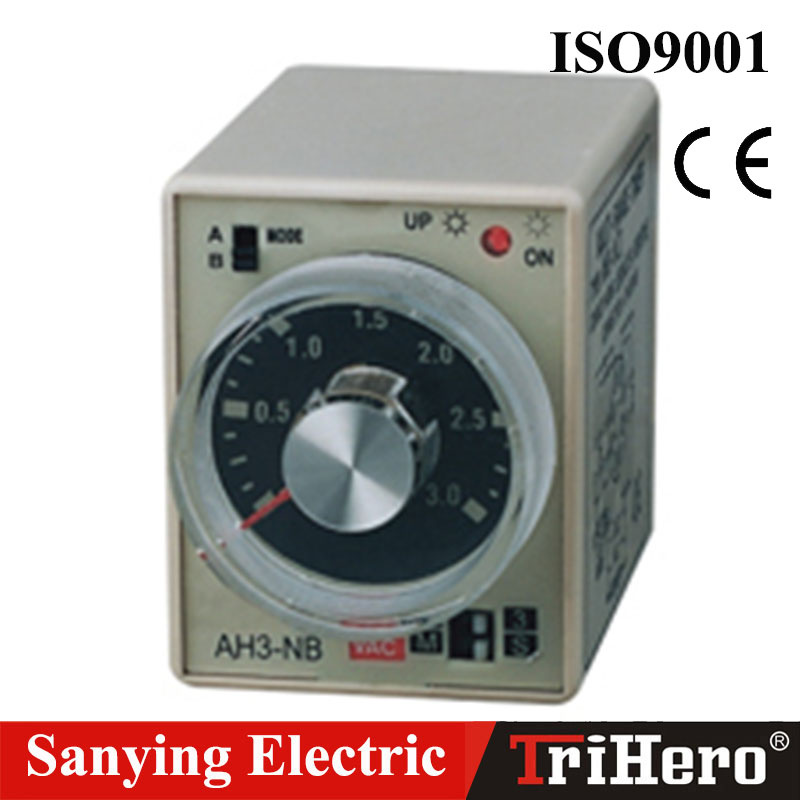

Ah3-N Time Relay

Name: Ah3-N Time Relay
Brand: all-electronics-online.com
SKU: 787831505
Availability: InStock
Rating: 4.6 (78 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	AH3-N
Rated Voltage:	DC(V):12, 24; AC(V):12, 24, 110, 220, 240,380
Reset Time:	0.1s Max
Consumed Power:	2va
Weight:	160g

Product Description

CLASSIFICATION		MULTIRANGE TIMER
MODEL		AH3-			AH3-N		AH3-P
DIMENSIONS		50H40W57.5D			50H40W57.5D		50H40W57.5D
MOUNTING &SOCKET	SURFACE(-N)	PF083A(E)			PF083A(E)		PF083A(E)
	FLUSH(-Y)	US-08 P3G-08			US-08 P3G-08		US-08 P3G-08
FULL TIMING RANGE		A:1S, 10S, 1M, 10M B:3S, 30S, 3M, 30M C:6S, 60S, 6M, 60M D:1M, 10M, 1H, 10H E:3M, 30M, 3H, 30H					0.1S-990H
RATED VOLTAGE		DC(V):12, 24 AC(V):12, 24, 110, 220, 240, 380, 50/60HZ
INDICATOR OPERATING		ON-UP Operating			Time Operating flicker		ON-UP Operating
O/P CONTACT	MODEL	AH3-1	AH3-2	AH3-3	Mode A/B		AH3-1P	AH3-2P	AH3-3P
	TIME LIMIT 1C	5A		5A		5A	5A
	TIME LIMIT 2C		5A		5A			5A
	INSTANTANEOUS 1C			5A		5A			5A
LIFE	MECHANICAL	5*10⁶ times
	ELECTRICAL	^{105 times}
ACCURACY	REPEAT ERROR	±0.5% max
	SETTING ERROR	±0.5% max
	VOLTAGE ERROR	±0.5% max
	TEMP. ERROR	±0.5% max
REST TIME		0.1 sec max
CONSUMED POWER		2VA
AMBIENT TEMPERATURE		-10°c~+55°c
AMBIENT HUMIDITY		48-85%RH
WEIGHT		160g
CONNECTION DIAGRAMS& TIMING CHART		37D	37E	37F	37H	37J	37D	37E	37F

Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
