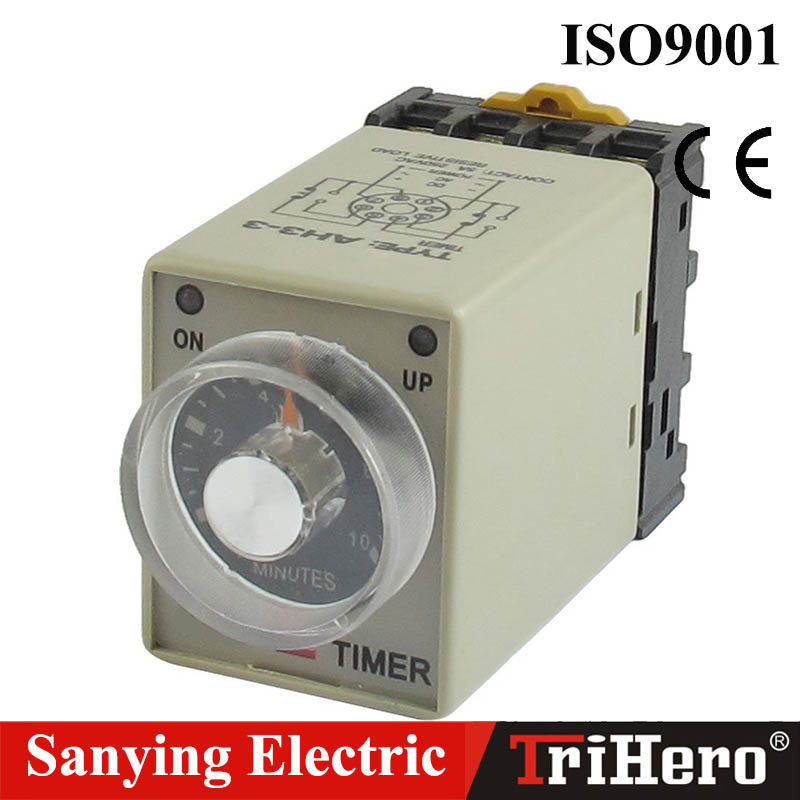

Yueqing Runjie Electric Co., Ltd. >> Ah3 (ST2P) Timer Relay

Ah3 (ST2P) Timer Relay

Ah3 (ST2P) Timer Relay
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: AH3-3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Voltage: DC24V; AC36V,110V,127V,220V,380V
Time Delay Range: 0.1s~12h
Contact Capacity: 5A AC250V(Resistance)
Outline Dimension: 51*41*83mm
Accuracty: ≤0.5%

Product Description

AH3-3 time relay,timer relay

Contact form and delay time
Model numberContact formDelay timeOnline store
AH3-1On-delay SPDT1s/3s/6s/10s/30s/60s/3m/6m/10m/30m/60m
AH3-2On-delay DPDT1s/3s/6s/10s/30s/60s/3m/6m/10m/30m/60m
AH3-3On-delay SPDT with SPDT instantaneous1s/3s/6s/10s/30s/60s/3m/6m/10m/30m/60m
General
Model numberAH3
Supply voltage36, 48, 110, 220 or 380 Vac; 24 Vdc
Tolerance-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption3W max
Setting methodKnob
Indication methodLED
Perforate dimensions50.5 10x40.5 10 mm
Contact rating5A@250Vac, 5A@28Vdc
Repeat accuracy±0.3%, ±0.05 sec
Setting error±0.5%, ±0.05 sec
Power frequency50...60 Hz
Termination8 pins
MountingPanel, din rail
Matched socketPF083A, PF085A, US-08
Matched mounting accessoriesFTRF01 mounting panel, FTRF02 mounting panel
Mechanical life1x106
Electrical life1x105
Operating temperature-10 to 50  (14 to 131)
Operating humidity45%-80% RH, non-condensing
Alias nameAH3 timer

Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
