Ahc15A Microcomputer Timer Switch Microcomputer Time Switch 220V 15A

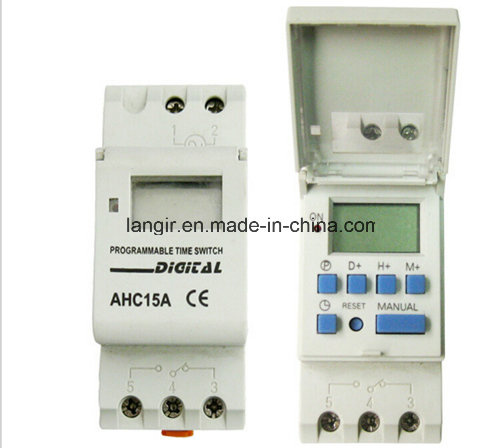

Name: Ahc15A Microcomputer Timer Switch Microcomputer Time Switch 220V 15A
Brand: all-electronics-online.com
SKU: 782460485
Availability: InStock
Rating: 4.6 (135 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AHC15A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Count Down:	1 Sec-99 Min 59 Sec
Pulse:	1 Sec-59 Min 59 Sec
Switching Contact:	1 Changeover Switch
Power Reserve:	3 Years(Lithium Battery)
Place Of Origin:	China (Mainland)
Usage:	Timer Switch, Multifunctional

Product Description

Description:
1. DIN rail installation
2. Advanced pre-setting one week before
3. Digital electronics general purpose time switch with daily and programs
4. Repeat programs with 16 on/off settings, 18 times pulse programs, and setting on/off manually
5. Lithium battery power reserve when electric supply cut off.
6. Auto time error correction ± 30 sec, weekly
ClassificationWeekly Programmable Electronic Timer
ModelAHC15A

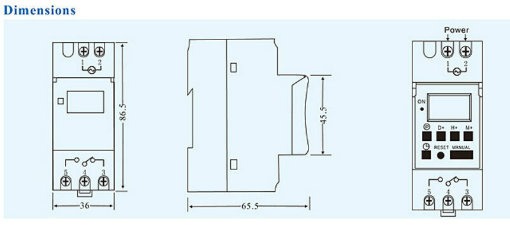

Dimensions(mm)81X36X66
Contact CapacityAC250V 16A
Contact Form1Z
Full Timing RangePer week or per day cycle
Rated VoltageAC220V 50/60Hz 85%~110%
Accuracy≤ 2s/ Day
Expectancy DisplayLCD
MountingDIN Rail
LifeElectrical105times
Mechanical107times
Operating Temperature-20° C~+55° C
Programmable16timeS/ week or day
Work Mode15 Days

Technical Data

Classification		Weekly Programmable Electronic Timer
Model		AHC15A
Dimensions(mm)		81x36x66
Contact Capacity		AC250V 16A
Contact Form		1Z
Full Timing Range		Per week or per day cycle
Rated Voltage		AC220V 50/60Hz 85%~110%
Accuracy		≤2s/ Day
Expectancy Display		LCD
Mounting		DIN Rail
Life	Electrical	10⁵times
	Mechanical	10⁵times
Operating Temperature		-20ºC~+55ºC
Programmable		16timeS/ week or day
Work Mode		15 Days
