Ain Ceramic Plate Aluminium Nitride Ceramic for Electronic Semiconductor Component

Name: Ain Ceramic Plate Aluminium Nitride Ceramic for Electronic Semiconductor Component
Brand: all-electronics-online.com
SKU: 758666625
Availability: InStock
Rating: 4.3 (101 reviews)

Price:	US $ 5-15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JRF-026
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thermal Conductivity:	160-190 W/M.K
Size:	Customized
Application:	Insulators
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Ceramic
Thermal Rating:	200 200
Maximum Voltage:	<10KV
Brand:	Jrft
Color:	Grey

Product Description

Feature:

1.High hardness , diversity 2. High precision and density

3.High reliability and stability 4. High thermal conductivity
5.Extremely abrasive resistance performance 6. Wide scope of application

Application

high-power circuits, RF and microwave circuits , GaAs crystal crucible, Al evaporation pan, MHD power generation equipment

Product Introduction

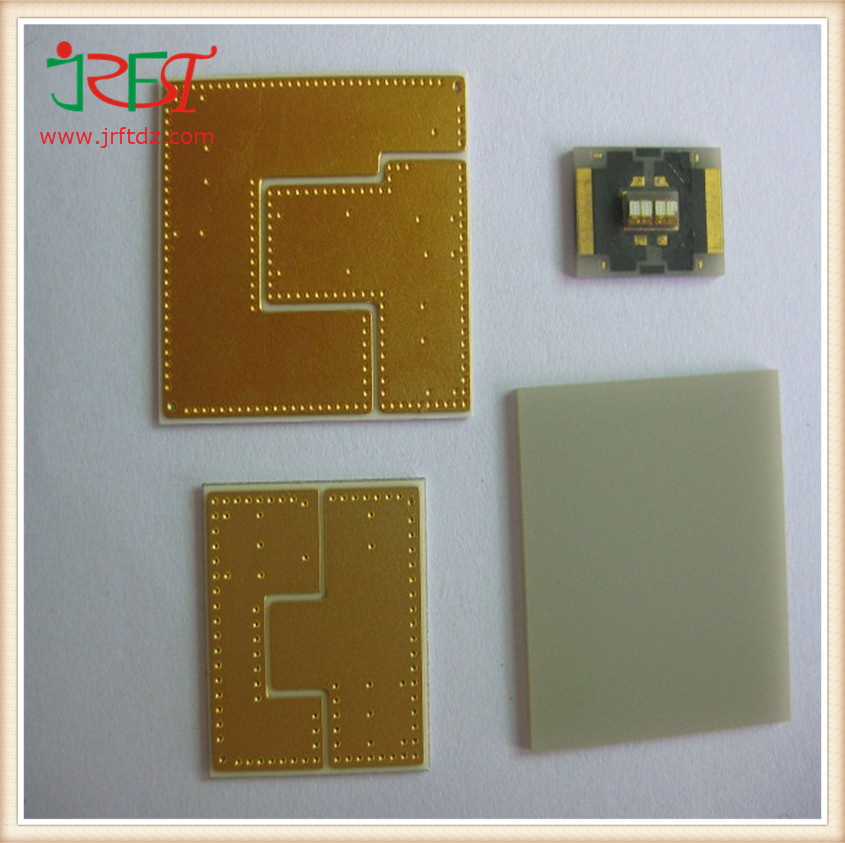

Aluminum nitride ceramic substrate, high thermal conductivity, low coefficient of expansion, high strength, high temperature resistance, chemical resistance, high resistivity , low dielectric loss, is the ideal LSI heat dissipation board and packaging materials.

AIN ceramics use heat resistant melt erosion and thermal shock resistance, can produce GaAs crystal crucible, Al evaporation pan, MHD power generation equipment and high temperature turbine corrosion resistant parts, using its optical properties can be used as an infrared window.

Non-standard products , please contact us to provide drawings of your products.

welcome drawings processing customized zirconia /alumina / aluminum nitride .

Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.

Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.

Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.

High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
