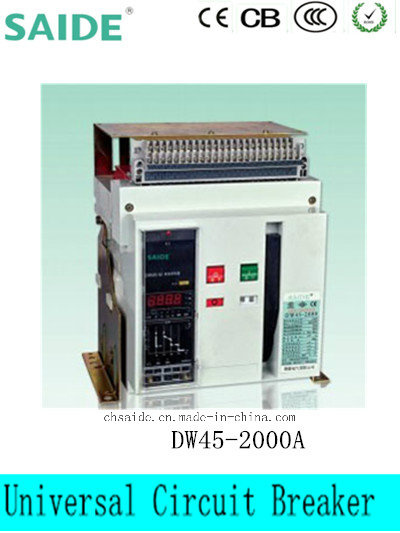

Air Circuit Breaker (ACB) Dw45 2000A

Name: Air Circuit Breaker (ACB) Dw45 2000A
Brand: all-electronics-online.com
SKU: 818108425
Availability: InStock
Rating: 4.6 (131 reviews)

Price:	US $ 550-600/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DW45-2000
Color:	White
Functional:	Overload, Undervoltage, Short-Circuit
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	ACB
Poles Number:	3
Certification:	CCC

Product Description

1.Application
DW45 universal circuit breaker is mainly designed for distributing systems of 50/60Hz, 400/690V, 400~6300A. The purpose of this equipment lays in power distribution & protection against malfunction such as overload, undervoltage, short-circuit, etc.

DW45 universal circuit breaker is in compliance with GB14948.2 & IEC60947-2 standards, 3C approved.
2.Technical date

Model	DW45-2000

Structural level max current	2000

Rated current In(A)	400,630,800,1000,1250,1600,2000

Rated voltage Ue(V)	AC400,AV690
Rated insulation voltage Ui(V)	1000

Rated voltage withstand voltage Umip(kV)	8000
Rated ultimate short-circuit breaking capacity Icu(kA)	400V	80
	690V	50
Rated working short-circuit breaking capacity Ics(kA)	400V	50
	690V	40
Rated short period withstand current Icw(kA)	400V	50
	690V	40
Wiring type	Upper wiring & lower wiring

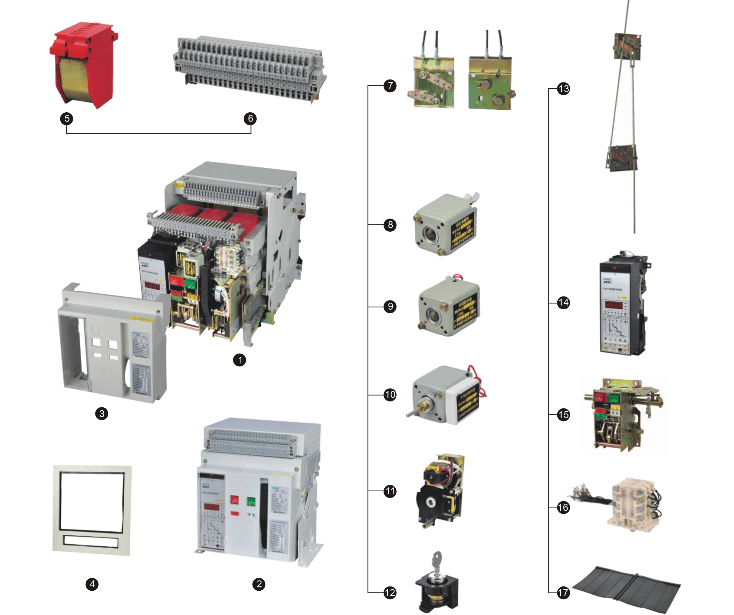

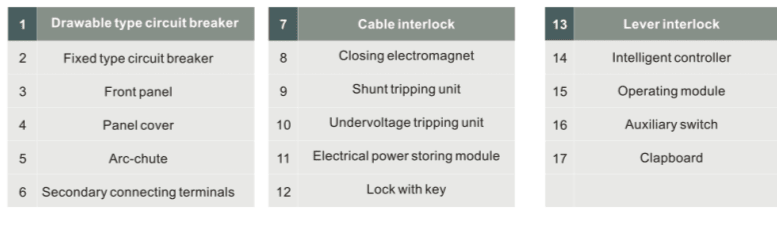

3.About the parts

4.Feature of Intelligent Air Circuit Breaker(ACB)

1. Rated AC current: 630A-6300A
2. Short-circuit breaking capacity: 80KA-120KA
3. Rated Voltage: under AC690V
4. Two Types: draw-out type and fixed type
5. Equipped with many types of intelligent controllers, of different functions.
6. Both the 3 Pole and 4 Pole air circuit breakers are available.
7. Standards: IEC60947-2, GB14048.2

5.Categories of Intelligent Air Circuit Breaker(ACB)
1. Our air circuit breaker can be of two installation types: fixed type and draw-out type
2. Number of poles: 3 pole and 4 pole
3. Operation type: manual operation, auto operation
4. Trip types: Intelligent controller, under voltage instant ( or time delay type) trip and shunt trip6

6.About Us

7.Our information

CHINA * SAIDE ELECTRIC CO.,LTD

Address : Qiligang industrial Zone ,Liushi,Yueqing ,Zhejiang,China

Tel:0086-577-62755267

Phone:18657700751

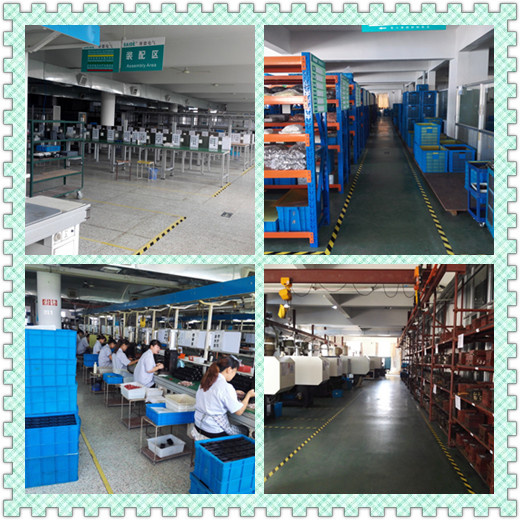

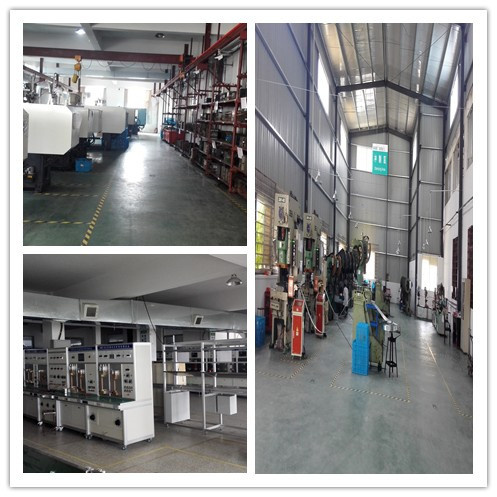

Saide Electric Co., Ltd. Was founded in 1998, located in Qiligang industrial zone, Liushi. We also invested 180 million RMB to build another 26000 square meters Hi-tech industrial park in Wenzhou Oujiangkou district. With a registered capital of 50 million RMB and over 500 workers, we are now a specialized low-voltage appliance manufacturer combined research, production and sales altogether. With a contunuous development of more than ten years, we obtain mature craftsmanship, advanced equipment & self-design capability now.

We've already got approved with ISO9001, ISO14001, ISO18001 quality system, products comply with certificates such as CCC(China), TSE(Turkey), CE(Europe), CB(International), etc. With years of outstanding performance, we've been awarded titles as "Star corporation of province", "Tech innovation department", "Excellent exporting corporation", etc.

With core idea of "Top class quality, Top class service, Top class reputation", we welcome customers all over the world with open arms to build a brand-new era of low voltage appliance together.
