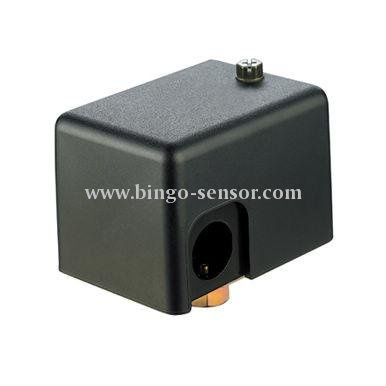

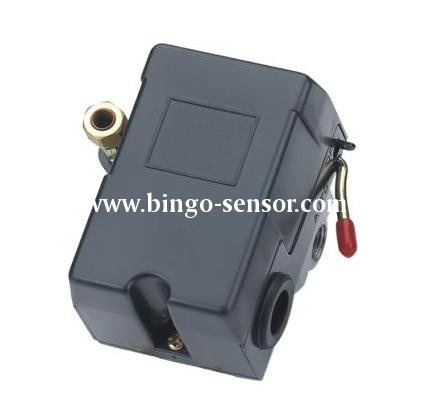

Air Compressor Pressure Switch (PS-A10)

Name: Air Compressor Pressure Switch (PS-A10)
Brand: all-electronics-online.com
SKU: 670468331
Availability: InStock
Rating: 4.3 (116 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS-A10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contacts:	Normally Open
Application:	Industrial
Type:	Electronic

Product Description

We are wholesaler, and exporter for air compressor pressure switch PS-A10 in China since 2009. Quick response, fast delivery.
Introduction:
PS-A10 pressure switches are used to regulate the tank pressure between two preset values on small (up to 175psi) electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and an auto-off disconnect lever for manual cut off the compressor. A four port manifold style is available which provides a means for easy mounting of valves and gauges.

1. Corrosion Resistant and Non Metallic Cover
2. No Wire Looping
3. Visible Contact
4. No Drift Pressure Setting
5. Captive Cover Screw
6. Ample Wiring Room
7.2 Ground Screw
8. Easy to Adjust
9. Automatic Unloader Valve Available
10. Pulsation Dampener Standard
Technical Data:
G1/4 (BSP 1/4) Male or Female Pipe Fittings are available.
Conversion: 1Kgf/cm2 = 14.2PSI, 1bar = 14.5PSI

MODEL	Medium	Min ON (Cut-In) (PSI)	Max Off (Cut-Out) (PSI)	Differential (PSI)	Factory Setting (PSI)	Electrical Rating		Connection	Contact Arrangement
MODEL	Medium	Min ON (Cut-In) (PSI)	Max Off (Cut-Out) (PSI)	Differential (PSI)	Factory Setting (PSI)	120VAC	240VAC	Connection	Contact Arrangement
PS-A10-1H1	Air	25	100	20-30	50-80	20A	12A	1/4" Male/ Female NPT (1 port)	NC
PS-A10-1H2		35	150	30-40	85-115	20A	12A
PS-A10-1H3		50	175	35-55	110-150	20A	12A
PS-A10-4H1	Air	25	100	20-30	50-80	20A	12A	1/4" Female NPT (4 Port)	NC
PS-A10-4H2		35	150	30-40	85-115	20A	12A
PS-A10-4H3		50	175	35-55	110-150	20A	12A

MODEL	Medium	Min ON (Cut-In) (PSI)	Max Off (Cut-Out) (PSI)	Differential (PSI)	Factory Setting (PSI)	Electrical Rating		Connection	Contact Arrangement
MODEL	Medium	Min ON (Cut-In) (PSI)	Max Off (Cut-Out) (PSI)	Differential (PSI)	Factory Setting (PSI)	120VAC	240VAC	Connection	Contact Arrangement
PS-A10A-1H1	Air	25	100	20-30	50-80	26A	26A	1/4" Male/ Female NPT (1 port)	NC
PS-A10A-1H2		35	150	30-40	85-115	26A	26A
PS-A10A-1H3		50	175	35-55	110-150	26A	26A
PS-A10A-1H4		70	200	40-55	130-175	26A	26A
PS-A10A-4H1	Air	25	100	20-30	50-80	26A	26A	1/4" Male/ Female NPT (4 Port)	NC
PS-A10A-4H2		35	150	30-40	85-115	26A	26A
PS-A10A-4H3		50	175	35-55	110-150	26A	26A
PS-A10A-4H4		70	200	40-55	130-175	26A	26A
