| Prod Model: |
PS-A50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contacts: |
Normally Open |
| Application: |
Industrial |
| Type: |
Electronic |
Product Description
We are first class retailer, wholesaler, and exporter for Air compressor pressure switch PS-A50 in China since 2009. Quick response, fast delivery.
Introduction:

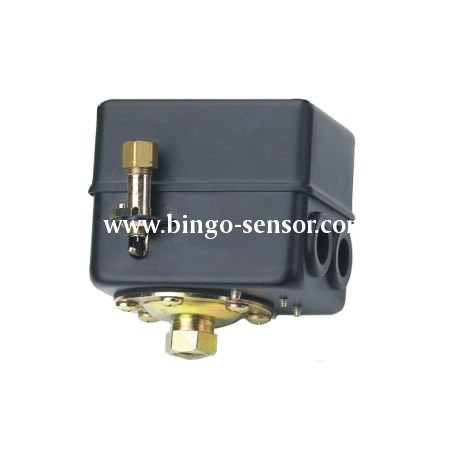

The rugged PS-A50 pressure switch is designed for the demanding requirements of lager, heavy duty commercial air compressors (up to 250 psi). The sturdy painted steel case and cover resists the harsh conditions encountered in industrial applications. This style is also available with an unloading valve to prevent the compressor from starting under load.
· Sturdy Stamped Steel Case & Cover
· Visible Contact
· No Drift Pressure Setting
· Captive Cover nut
· Ample Wiring Room
· 2 Ground Screw
· Easy to Adjust
· Automatic Unloader Valve Available
· Pulsation Dampener Standard
· 5HP Heavy Duty Rating
· 250 PSI Max
Technical Data:
Conversion: 1Kgf/cm2 = 14.2PSI, 1Bar = 14.5PSI
| MODEL | Medium | Min ON (Cut-In) (PSI) | Max Off (Cut-Out) (PSI) | Differential (PSI) | Factory Setting (PSI) | Electrical Rating | Connection | Contact Arrangement |
| 120VAC | 240VAC |
| PS-A50 | Air | 40 | 250 | 25-60 | 145-175 | 24A | 12A | 1/4" , 3/8" Male or Female NPT | NC |
| PS-A50-S | Air | 15 | 60 | 7-15 | 30-40 | 24A | 12A | 1/4" , 3/8" Male or Female NPT | NC |
Our service:
1. For each type, we can send you the detailed high-resolution pictures since we have the sample in our hand.
2. For packaging, we have the professional packaging starff, pls. don't worry about the shipping.
For an example:
Show room:
About us:
Founded in 2009, our company is committed to supplying a full range of pressure switches / transmitters / sensors, level switches / transmitters/ meters, flow switches / transmitters/ meters.
Our company is located in the "Capital of Electric Products", Liushi, Wenzhou. Besides, we set branch in Shanghai for automation control business in 2013.
Shanghai Office
ADD: Rm. 408, #1 Building, Shanghai Zhihui Science Park, No.11, lane 911, Hulan Road, Baoshan, Shanghai
Zipcode: 201900
Liushi Office
ADD: ROOM A111, JINHAO BUILDING,No.1-8 LIUWENG ROAD,LIUSHI ,YUEQING,WENZHOU
Zipcode: 325604
Yiwu Office
ADD: No. 146-3, Chouzhou North Road, Yiwu, Jinhua
Taizhou Office
ADD: No. 7, Xianqian Road, Yuhuan, Taizhou
More information, you can browse our website: www.bingo-sensor.com
If you need Z type side-mounted float level switch LS-HS07F-Z, please feel free to contact us!
