| Prod Model: |
CSF-capacitors |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: |
Al/Zl PP |
| Goods: |
AC Metallized Polypropylene Capacitor with UL Appr |
| Type: |
Polypropylene Capacitor |
| Application: |
Automobile |
| Package Type: |
Through Hole |
| Capacitance: |
1~120UF |
| Structure: |
Film Capacitor |
| Electrolyte: |
Oil |
| Usage: |
Air Conditioners, Washer Machines, Fans, etc |
Product Description

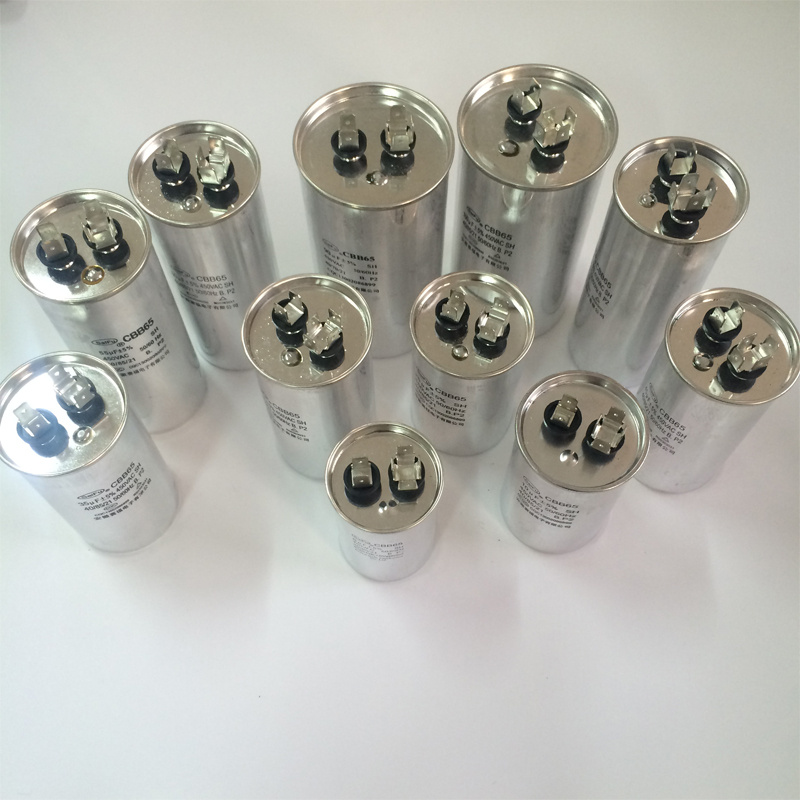

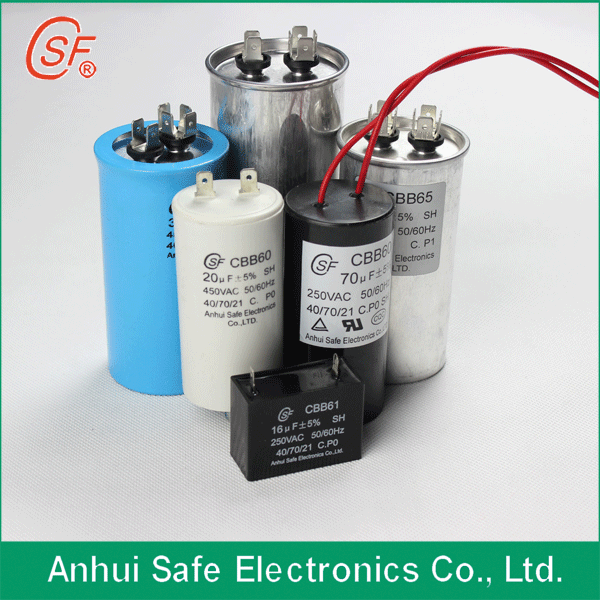

CBB65 AC Motor Capacitor(column, aluminum case, anti-explosion)
Features:
1. Widely applied to starting and running of AC
Single-phase motors at 50Hz/60Hz frequency power
2. Self-healing property
3. High stability and reliablity
4. Safer with Anti-explosion design.
5. Round capacitor, can be provided oval capacitor
6. Single capacitor, Can be provided double
Specifications:
| Reference standards | GB/T 3667.1( IEC60252-1) |
| Climatic category | 40/70 /21, 40/85/21 |
| Class of operation | Class B (10000h) Class C (3000h) |
| Class of safety protection | P2/P1 |
| Voltage range | 200~500VAC |
| Capacitance range | 2~100μF |
| Capacitance tolerance | ± 5%, ± 10%, ± 15% |
| Dissipation factor | 20 X10-4 (100Hz, 20°C) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds |
| Insulation Resistance | ≥3000s (100Hz, 20°C, 1min) |
Dimensions(mm)
NO. |
Production specifications |
Terminal |
Size (mm) |
| 1 | CBB65-450VAC 5μF ~9μF | 2*4, 2*2 or 4*4 pin | Φ40*60 |
| 2 | CBB65-450VAC-10μF | 2*4, 2*2 or 4*4 pin | Φ40*60 |
| 3 | CBB65-450VAC-12.5μF | 2*4, 2*2 or 4*4 pin | Φ40*70 |
| 4 | CBB65-450VAC-15μF | 2*4, 2*2 or 4*4 pin | Φ45*70 |
| 5 | CBB65-450VAC-20μF | 2*4, 2*2 or 4*4 pin | Φ50*75 |
| 6 | CBB65-450VAC-25μF | 2*4, 2*2 or 4*4 pin | Φ50*85 |
| 7 | CBB65-450VAC-30μF | 2*4, 2*2 or 4*4 pin | Φ50*100 |
| 8 | CBB65-450VAC-35μF | 2*4, 2*2 or 4*4 pin | Φ50*100 |
| 9 | CBB65-450VAC-40μF | 2*4, 2*2 or 4*4 pin | Φ50*100 |
| 10 | CBB65-450VAC-45μF | 2*4, 2*2 or 4*4 pin | Φ50*100 |
| 11 | CBB65-450VAC-50μF | 2*4, 2*2 or 4*4 pin | Φ50*125 |
| 12 | CBB65-450VAC-55μF | 2*4, 2*2 or 4*4 pin | Φ50*125 |
| 13 | CBB65-450VAC-60μF | 2*4, 2*2 or 4*4 pin | Φ50*125 |
| 14 | CBB65-450VAC-65μF | 2*4, 2*2 or 4*4 pin | Φ55*125 |
| 15 | CBB65-450VAC-70μF | 2*4, 2*2 or 4*4 pin | Φ55*125 |
| 16 | CBB65-450VAC-80μF | 2*4, 2*2 or 4*4 pin | Φ60*125 |
| 17 | CBB65-450VAC-90μF | 2*4, 2*2 or 4*4 pin | Φ60*125 |
| 18 | CBB65-450VAC-100μF | 2*4, 2*2 or 4*4 pin | Φ63.5*125 |
Other specifications, Size and terminal outside table are negotiable.
For more information, you can contact and view our website:
Www. Capacitorfilm. COM
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.

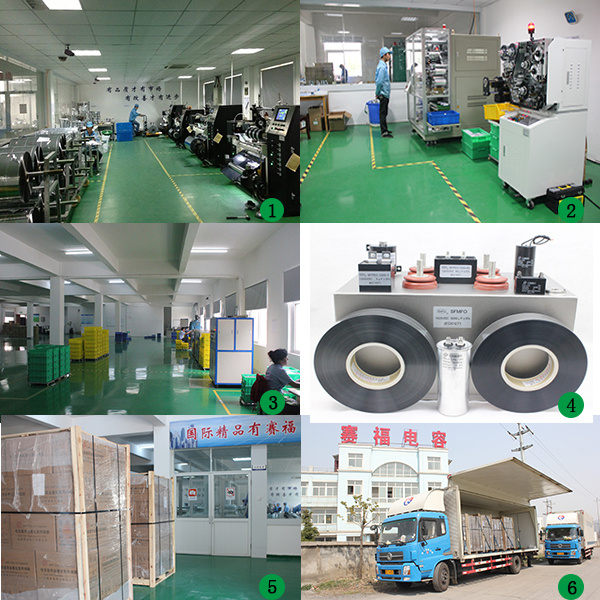

Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
