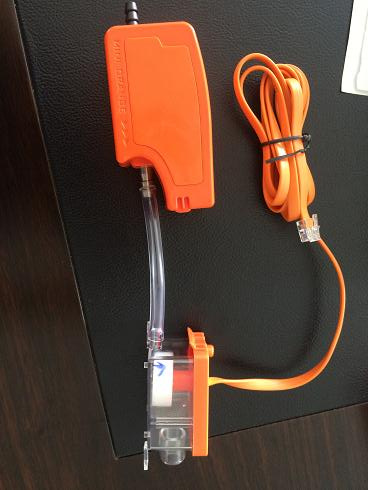

Air Conditioner Mini Condensate Pump

Prod Model:	1218
Color:	Orange
Voltage:	220-110

Product Description

Model RTK-12A

Voltage 230V~50/60Hz or 115V~/60Hz

Discharge head Max.4m(13ft)

Flow rate Max.125L/h

Tank capacity 1.8L

Power 55w

Sound level <48dbB(A)

Ambient temp. 0°C~50°C


Used for remove condensated water in inlaid type,ceiling suspended and disconnect-type air-conditioners.

condensate water blowdown pump
RTK-1218 is a total system,used for remove condensated water in inlaid type,ceiling suspended and disconnect-type air-conditioners,which can't be removed naturally.RTK-1218's design has two parts:pump room/control equipment,water storage tank add on automatic switch.This two parts'design mainly applied to installed in all kinds of air-conditioners easily.This two parts can be installed in air-conditioners,or pump room /control equipment can be installed on ceiling,which above the water storage tank within 1meter.Floating control of water storage tank is seperated into three parts:start-up,cease and safety warning switch.Enclose:inlet pipe,clamp,cloth insertion sheet,exhaust pipe and drain pipe.
Characteristic
1.Full rotation type;start-up,cease,water line spilled over safety warning switch
(start-up warner or turn off air-conditioner)
2.Designed as two parts,used for easily and quickly install.
3.Pump is auto-suction type,can be installed in air-conditioner,or place in it above tank within 1 meter.
4.Water storage tank connects on 13-17mm wash port in air-conditioner.
5.Max flow:14kl/h (3.7 US gallon)
6.Max head:12m (39feet)
7.Operating range:6kl/h while head is 4m (1.6 US gallon/h while head is 13.1feet)
8.Used for air-conditioner equipment,max is 10kw (30,000BTU) (4kw used in wet areas)
9.Exhaust pipe enclose water storage tank
10.Overheating auto poweroff protective device
11.Design of pump exit used for:4×6mm (5/32 inch inner diameter of water pipe)
12.TUV certificate
13.IP=20
