| Prod Model: |
SA 3P-30A-24V |
| Certificate: |
UL/CSA/Ce/S Mark/CCC |
| Material: |
High Arc-Resistant Phenolic Resin |
| Applitation: |
Heating, Ventilation, Air Conditioning |
| Insulation System: |
Class F |
| Electrical Life: |
50 Million Times |
| Mechanical Life: |
10 Million Times |
| Delivery Time: |
30 Days After Deposit |
Product Description

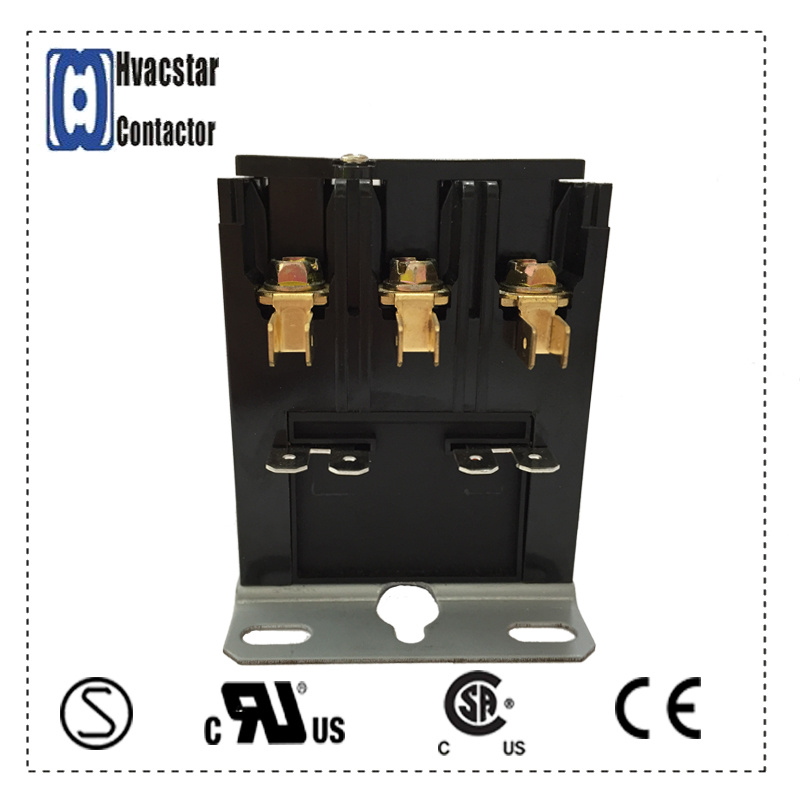

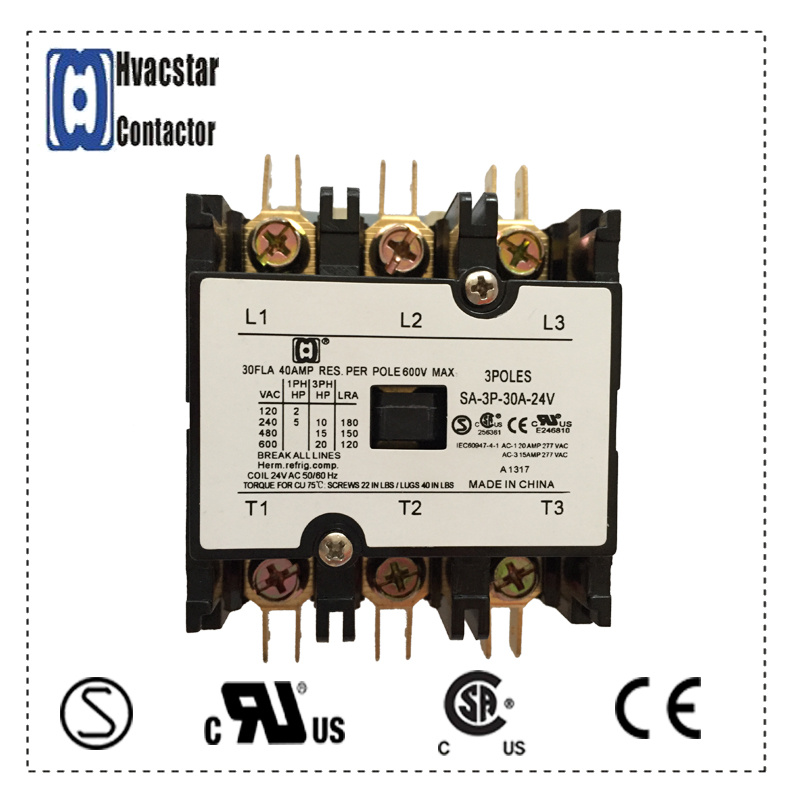

SA 3P-30A-24V
PRODUCT DESCRIPTIONUSR, CNR - Definite Purpose Contactors, SA Series Defined Purpose AC contactors. SA, may be followed by 1.5P, 2P, 3P or 4P, followed by 20A, 25A, 30A, 40A, 50A, 60A, 75A or 90A, followed by 24V, 120V, 208/240V, 277V, 380V or 480V
PRODUCT APPLICATIONS
A series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of USA/Canada. RATING:Models SA-1.5P, SA-2P are rated 600 VAC, single-phase. Models SA-3P, SA-4P are rated 600VAC, three-phase, except models rated 300 LRA and 360 LRA are rated 480VAC max. See table for FLA/LRA/Resistive or Resistance air heating ratings. All devices are rated "Break All Lines." | MODEL | FLA(A) | LRA(A) | LRA(A) | LRA(A) | LRA(A) | Resistive or Resistance air heating(*) |
| | | 480 V ac | 600 V ac | 277 V ac | 240 V ac | 277vac |
| SA-1.5P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| SA-2P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| 50 | 240 | 200 | 240 | 300 | 50 |
| 60 | 300 | 240 | 240 | 360 | 60 |
| 75 | 300 | - | 300 | 450 | 75 |
| 90 | 360 | - | 360 | 540 | 90 |
| SA-3P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| 50 | 240 | 200 | 240 | 300 | 50 |
| 60 | 300 | 240 | 240 | 360 | 60 |
| 75 | 300 | - | 300 | 450 | 75 |
| 90 | 360 | - | 360 | 540 | 90 |
| SA-4P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
Short Circuit Rating: SA-1.5P, 2P, 3P, 4P - 5,000A @ 277 V, 480 V, 600 V COMPANY INTRODUCTIONMingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

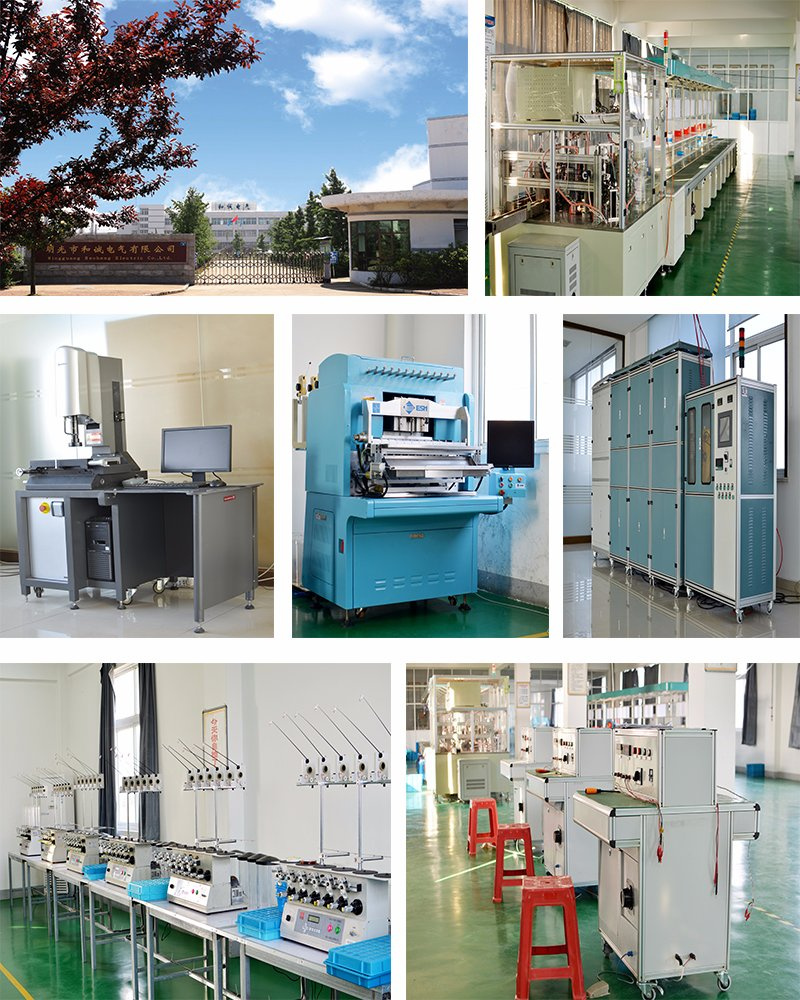

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

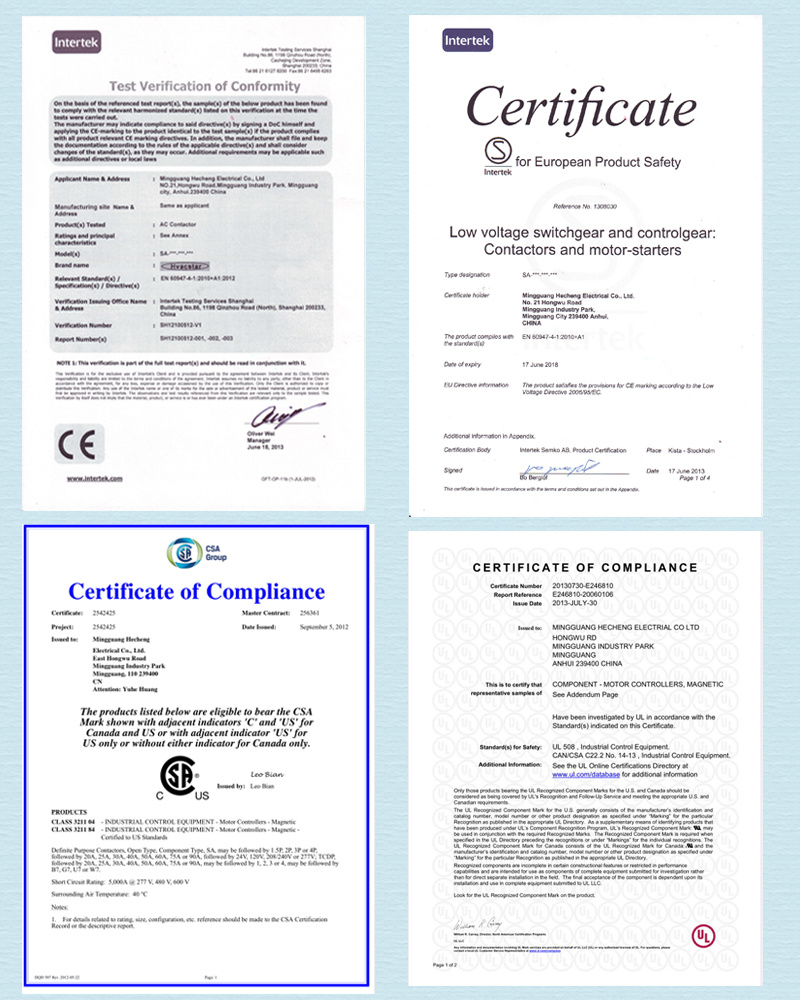

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system. Certification
Trade Show
FAQ
Q1: Can I get a sample for testing?
A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: If quality problem happen we promise re-send the item .
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy .
