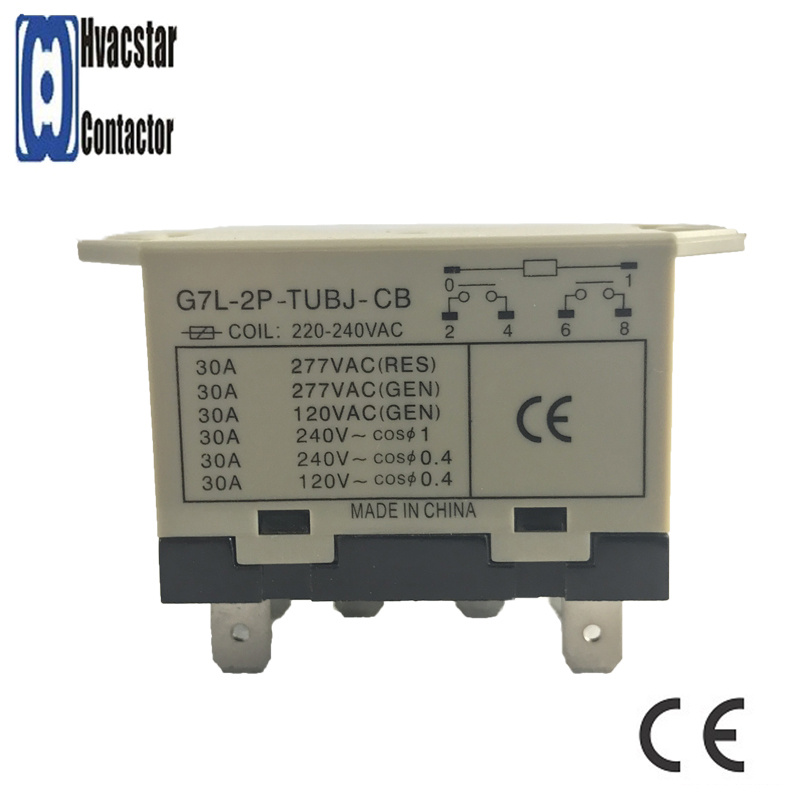

Air Conditioning Relay 1p 2p AC Electrical Relay with Ce

Name: Air Conditioning Relay 1p 2p AC Electrical Relay with Ce
Brand: all-electronics-online.com
SKU: 823884345
Availability: InStock
Rating: 4.5 (67 reviews)

Price:	US $ 2-3/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	G7L-1P-TUBJ-CB
Color:	Gray
Other Services:	ODM OEM
Delivery Time:	30 Days After Deposit
Application:	Refrigeration, Air Conditioning and Heating
Life Time(Mechanical):	1 Million Times

Product Description

ABOUT US:
HeCheng Electrical Co., Ltd., founded in 1995, is one of the leading manufacturers specializing in developing and producing kinds of low voltage electrical products and accessories in China. As an enterprise certified by ISO9001 system, we also get UL, IQNet, CQC, CSA etc. certifications. We have rich experience in producing and trading with advanced manufacturing equipment, power and complete testing equipments.

AIR CONDITIONAL RELAY
FEATURES:
1. A High-capacity, High-dielectric-strength relay, Compatible with Momentary Vlotage Drops
2. Wide-range AC-activated coil that handles 100 to 120 or 200 to 240VAC at either 50 or 60Hz.
3. 250# quick connect termination
4. Miniatre size for maximum switching power, particularly for inductive loads
5. UL File NO. E246810

Product DATA

Relay Form	G7L-1P-TUBJ G7L-2P-TUBJ
Load	Resistive load	Inductive load (cos∮ =0.4)		Resistive load		Inductive load
Item	Double break
Relay Material	Ag alloy
Relay Type	30A at 220VAC		25A at 220VAC		25A at 220VAC
Rated Load	30A		25A
Rated carry current	250VAC
Max.switching current	30A		25A

Upper Bracket Mounting (with test button) Quick-connect Terminal

Number of poles	Model	Rated coil voltage	Minimum packing unit
1 pole	G7L-1P-TUBJ	AC: 24, 100/120, 200/240	20 pcs/BOX
		DC: 6, 12, 24, 48, 100
2 poles	G7L-2P-TUBJ	AC:12,24,50,100/120,200/240
		DC: 6, 12, 24, 48, 100

CHARACTERISTICS

Weight	Approx.90g
Termination	QC
Construction	Dust protected
Ambient operationg temperature	-25 ºC to 60 ºC (with no icing or condensation)

FAQ
Q1: Can I get a sample for testing?
A: Yes, we could offer free sample, but shipping cost should be paid at customers' side.
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: If quality problem happen we promise re-send the item .
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy.
