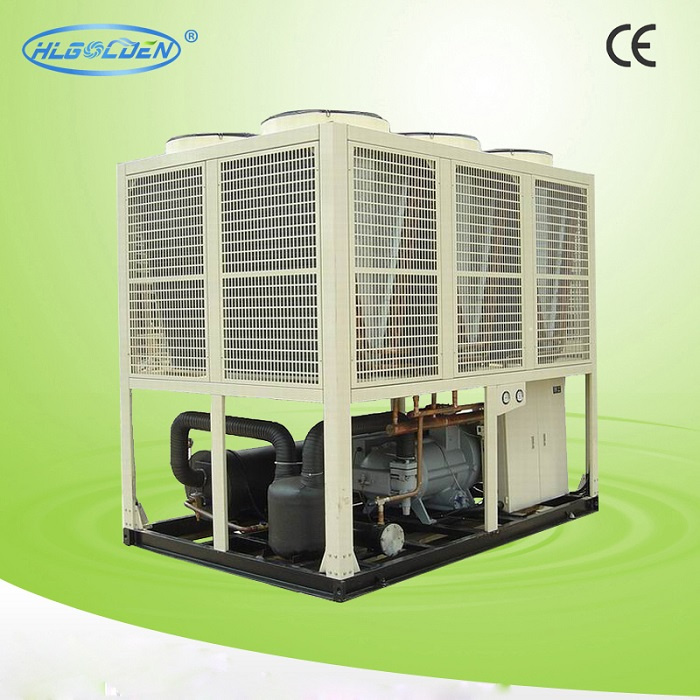

Air Cooled Heat Pump

Name: Air Cooled Heat Pump
Brand: all-electronics-online.com
SKU: 718005905
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	US $ 15000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLWH-110S~340S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Capacity:	109-337kw
Mount Type:	Free Standing
Refrigeration:	R407c
Power Supply:	380V-50Hz-3pH

Product Description

Specifications:

Model HLLB~			45H	70H	95H	140H	195H	245H	295H
Summer	Rated Cooling Capacity	X1000 Kcal/h	24.3	37.3	51.9	78.3	106.5	134.4	163.3
	Rated Cooling Capacity	KW	28.3	43.4	60.3	91.0	123.8	156.4	189.9
	Heat Reclaimed Volume	X1000 Kcal/h	9.7	14.9	20.7	31.3	42.6	53.8	65.3
	Heat Reclaimed Volume	KW	11.3	17.4	24.1	36.4	49.5	62.5	76.0
	Comp. lnput Power×Qty (kw)		4.04X2	5.7X2	7.77X2	11.77X2	16.2X2	20.35X2	23.54X2
Transitional Seasons	Heating Capacity (kw)	X1000 Kcal/h	40.1	59.0	81.2	123.2	168.2	212.2	253.8
	Heating Capacity (kw)	KW	46.7	68.6	94.5	143.2	195.6	246.8	295.1
	Comp. lnput Power×Qty (kw)		5.8X2	6.95X2	9.58X2	14.52X2	20.1X2	25.27X2	29.1X2
Winter	Rated Heating Capacity	X1000 Kcal/h	26.9	40.0	55.5	83.8	115.4	145.3	173.2
	Rated Heating Capacity	KW	31.3	46.5	64.5	97.5	134.2	169.0	201.5
	Heat Reclaimed Volume	X1000 Kcal/h	8.1	12.0	16.6	25.1	34.6	43.6	52.0
	Heat Reclaimed Volume	KW	9.4	13.9	19.3	29.2	40.3	50.7	60.4
	Comp. lnput Power×Qty (kw)		3.99X2	5.71X2	7.83X2	11.67X2	16.1X2	20.2X2	23.1X2
	Type		R22
Refrigerant	Charge (kg)		9	13	18	26	35	44	52
	Power Supply		380V/ 3ph/ 50Hz
	Protection Device		Phase reversion protection, Phase lack protection, Overload current protection, Leakage current protection, Discharge air temp. protection, Low & High pressure protection, Hi/ Low temp. protection, Water flow protection.
	Number of Refrigeration Circuit		2	2	2	2	2	2	2
	Capacity Control (%)		0, 50, 100
A/C Water	Dia. of Pipe (inch)		1-1/2"	1-1/2"	2"	2"	2-1/2"	2-1/2"	3"
	Chilled Water Flow (m3/h)		4.9	7.5	10.4	15.7	21.3	26.9	32.7
	Hot Water Flow (m3/h)		5.4	8.0	11.1	16.8	23.1	29.1	34.6
Living Water	Dia. of Pipe (inch)		1-1/2"	2"	2"	2-1/2"	2-1/2"	3"	3"
	Flow In Summer(m3/h)		1.9	3.0	4.1	6.3	8.5	10.8	13.1
	Flow In Transitional Seasons (m3/h)		8.0	11.8	16.2	24.6	33.6	42.4	50.8
	Flow In Winter (m3/h)		1.6	2.4	3.3	5.0	6.9	8.7	10.4
Heat Exchanger	Water Side Heat Exchanger		Shell and Tube Type
	Water Pressure drop (kPa)		≤26	≤26	≤28	≤30	≤32	≤32	≤35
	Air Side Heat Exchanger		Ripple Aluminum Fins around Cooper Pipe
Axial Fan	Air FlowX1000 (m3/h)		17	23.6	33.8	48	67.7	67.7	96
Axial Fan	PowerXQty (KW)		0.52X2	0.65X2	1.2X2	2.0X2	1.2X4	1.2X4	2.0X4
	Running Noise dB(A)		75	75	75	75	75	75	75
	Total Weight (Kg)		580	650	800	1020	1300	1400	1450
	Running Weight (Kg)		680	770	910	1140	1420	1540	1610

remark:
Rated cooling capacity based: Ambient DB temperature  35°C/ WB temperature 24°C, A/C chilled water inlet&outlet temperature  12°C/7°C;
Rated heating capacity based on: Ambient DB temperature  7°C/ WB temperature 6°C, A/C heating water inlet&outlet temperature  40°C/45°C;
Heating capacity based on: Ambient DB temperature  20°C/ WB temperature 15°C,living hot water
inlet&outlet temperature50°C/55°C;
Ambient temperature range: -5°C~43°C,forling factor:0.088m2.°C/KW;
Changes of Specification for lmprovement May Be made without Notice.
