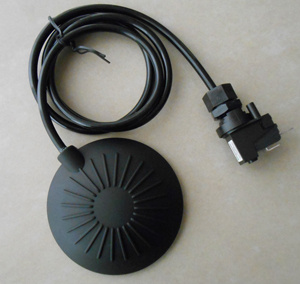

Air Pressure Switch by Foot Control

Name: Air Pressure Switch by Foot Control
Brand: all-electronics-online.com
SKU: 759870035
Availability: InStock
Rating: 5 (78 reviews)

Price:	US $ 7-10/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Mechanical
Application:	Vehicles
Explosion-proof Type:	Flameproof
Contact:	Normally Open

Product Description

11 can be used together with air switch for remote control purpose.It is widely used in food waste disposer, pumps for swimming pools and spas,
hot tubs, sanitaryequipment, out door machines, medical equipment etc.
As a remote control switch, it is small enough to fix in thecontrol box of the engine.
Used as a remote control, the air switch has two actions:
1) Momentary action: when the Actuator is pushed, the air switch is actuated.
When air button is released, the air switch will also be released. This is the way
the basic pressure switches are working.
2) Alternate action (also referred to as latching or bistable): the first pushing
on Actuator actuates the air switch, and the air switch keep actuating when
Actuator is released. A second push on the air Actuator will release the air

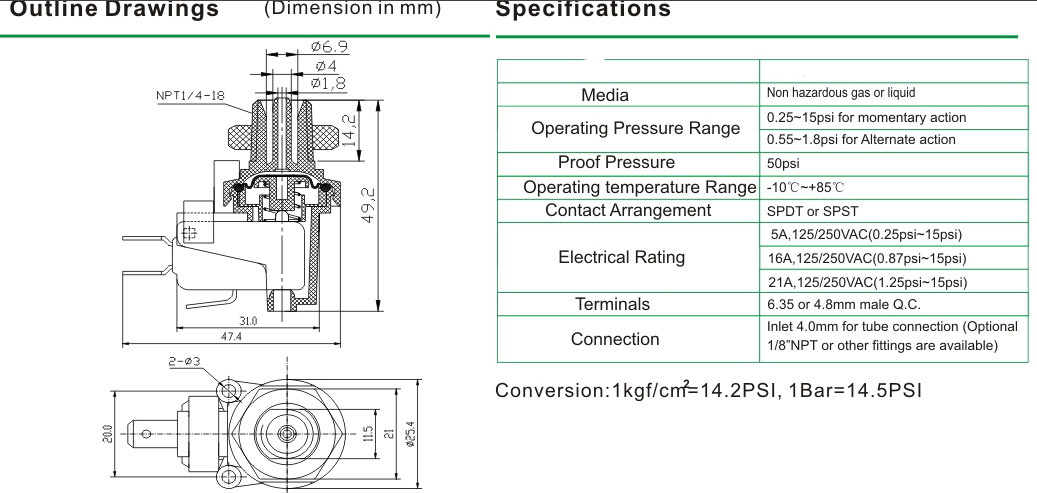

power rating	16(4)A 250VAC 10(8)A 250VAC
contact resistance:	≤50mΩ
insulation resistance	≥100MΩ
Dielectric strength:	pole and pole 1500VAC ,pole and housing 2500VAC
ambient temperature	T85
electrical:	5E4 10(8)A 1E4 16(4)A
action pressure:	5 10kpa/10--20kpa(pressure fixed)

. Dongguan Avoa Electric Co., Limited located on the China guangdong, is specialized in producing electronics components, power switch, plugs & sockets, connectors applied to Household appliances, vacuum cleaners, sound sets. In addition, the company produces plastic-pressing (big, MID or small) and metallic-pressing parts, and may design all kinds of plastic die sets for our numerous customers also.

With a plant area of 5000 square meters and a building area of 5500 square meters, our company owns fully reinforced strength, complete test equipment inspecting methods and perfect quality system. Our products have passed the, CQC certificates of China Quality Certification center. Some products also passed UL Approbation of U. S. A or TUV Approbation of German Rheinland Technical Co., Ltd.

Our products are on sales everywhere domestically and are exported to Hong Kong, Taiwan, Europe and U. S. A For instance, the power switch of KBQ02B, KAG01A series of vacuum cleaner gain the UL certificate for the first time in the manufactory of China. So, the power switches were preferred by broad customers.

Our companys' essential principle is "Quality First and Reputation First", we will meet our customers' needs by the best quality and after-sales service. We cordially welcome the clients home and abroad to correspond and discuss with us and create the splendid enterprise hand by hand.
