Airtight Construction Waterproof IP68 Odc 2/Odc4 Fiber Optic Patch Cord

Airtight Construction Waterproof IP68 Odc 2/Odc4 Fiber Optic Patch Cord
Price: US $ 1-10/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: ODC 2/ODC4 Fiber Optic Patch Cord
Customized: Available
OEM: Available
Connector Type: Sc, FC, St, LC
Operating Temperature: -40°c~85°c
Storage Temperature: -40°c~85°c
Waterproof Level: IP68
Certification: CE

Product Description

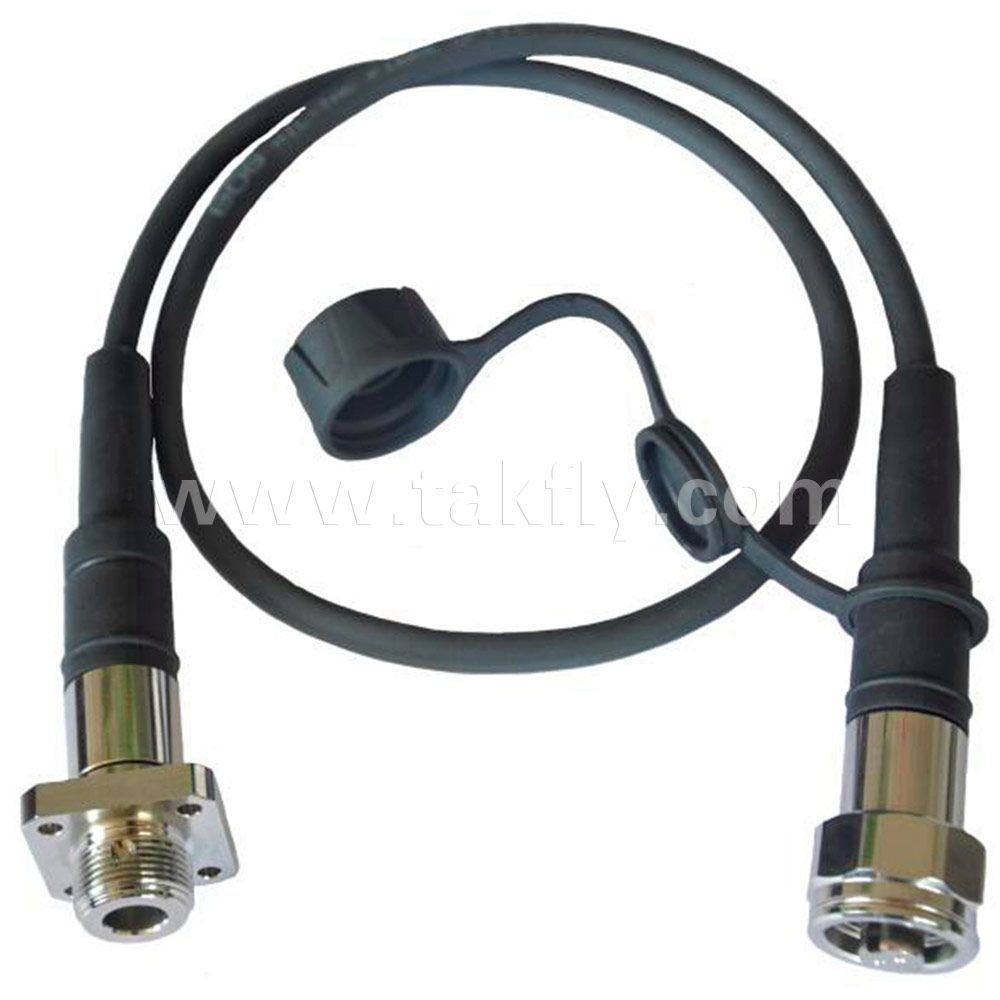

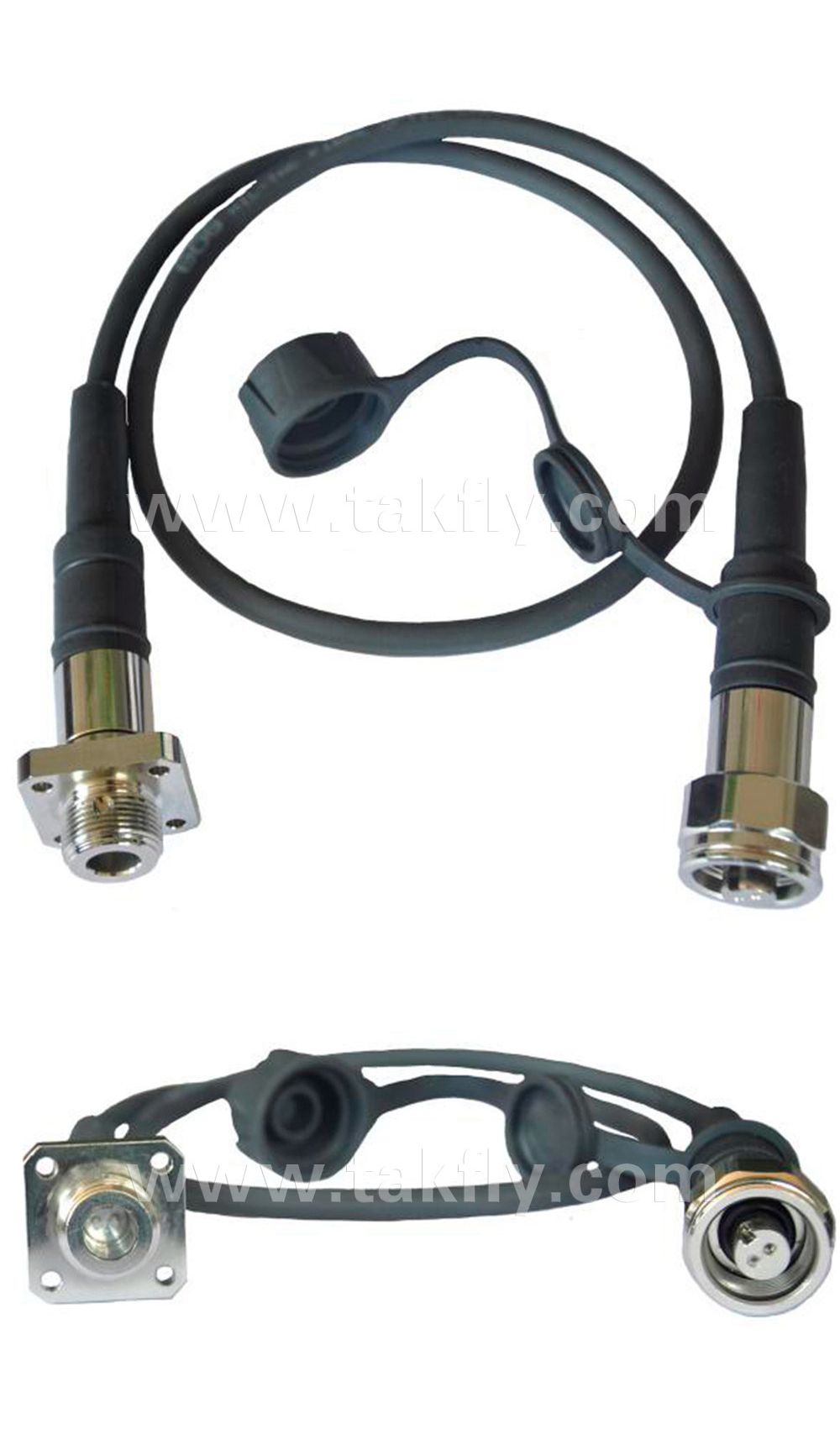

Airtight Construction Waterproof IP68 ODC 2/ODC4 Fiber Optic Patch Cord with Protection Cap Jumper


1. Description
The ODC Fiber Optic Patch Cord, are becoming the standard interface specified in 3G, 4G and Wimax Bae Station remote redios and Fiber-to-the-Antenna applications.
The ODC cable assembly is based on the N Type RF coas connector. However, the product is not limited to the above applications. The ODC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP68.
They are well suited for Industrial and Aerospace and Defense applications.

2. Feature

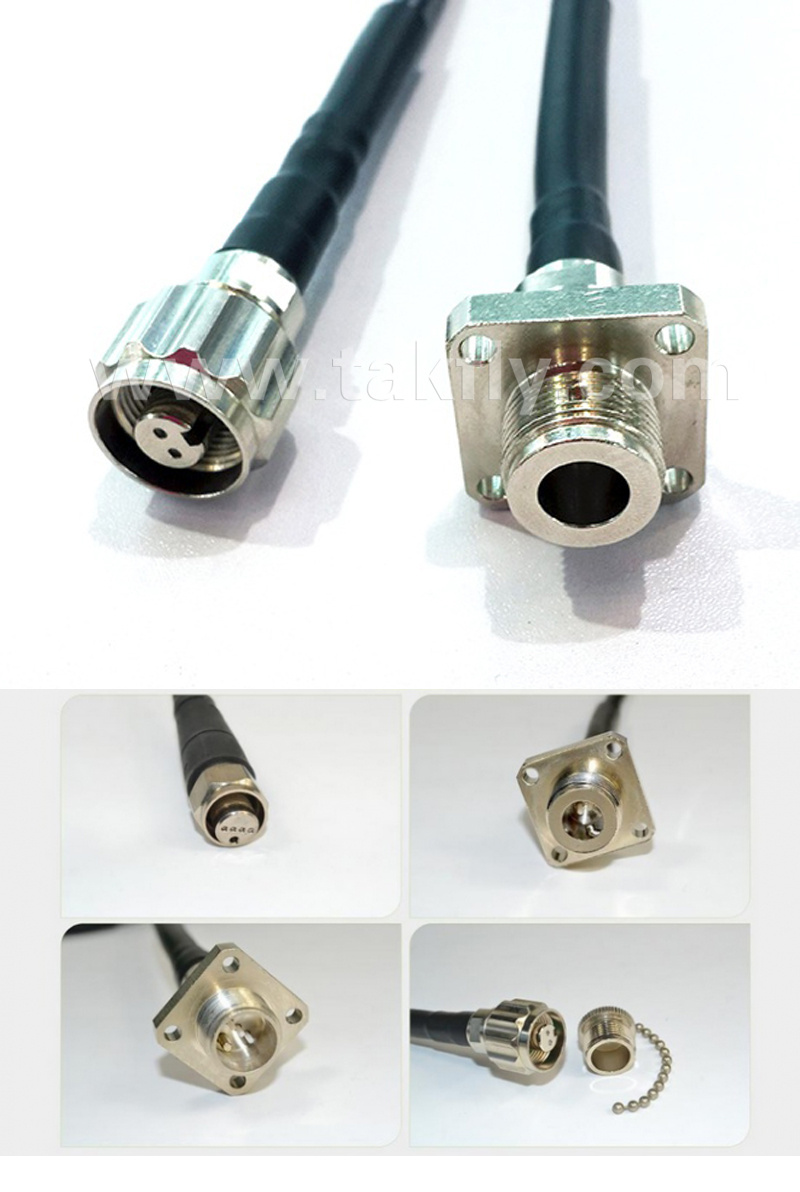

(1) Compact design with 2x1.25mm ferrule
(2) Wide range of cables to be used, 5-7mm OD cable with duplex 2.0mm to 3.0mm jacketed subunits2 cores, Singlemode and Multimode
(3) Fulfills performance Standard IEC61753-1 Cat.E
(4) Simple assembly requiring no special tools
(5) Screwed locking mechanism
(6) Water proof, dust proof and corrostion resistant, protection caps

3. Application
(1) Indoor and Outdoor applications
(2) Outdoor & Military communication equipment connection.
(3) Oil field, mine communication connection.
(4) Far transmission wireless base station.
(5) Video Surveillance system

(6) Optical fiber sensor.
(7) Railway signal control.
(8) Intelligent substation

4. Technical Parameter
TypeTypeParameter
Insertion LossSM≤0.30dB
MM≤0.30dB
Return LossSM≥50dB
MM≥35dB
Repetition  Test Additional Loss≤0.1dB, Reture Loss    Variability<5dB
Temperature Stability(-40ºC~85ºC)Additional Loss≤0.2dB, Reture Loss    Variability<5dB
Free  fall resistance500 falls onto concrete  from 1.2M   height
Bump  resistance4000 bumps @ 40g  acceleration
Tensile  StrengthTensile of 1000N, cable  dependent
Operating  temperature-40 to +70°C
Storage  temperature-40 to +70°C





Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

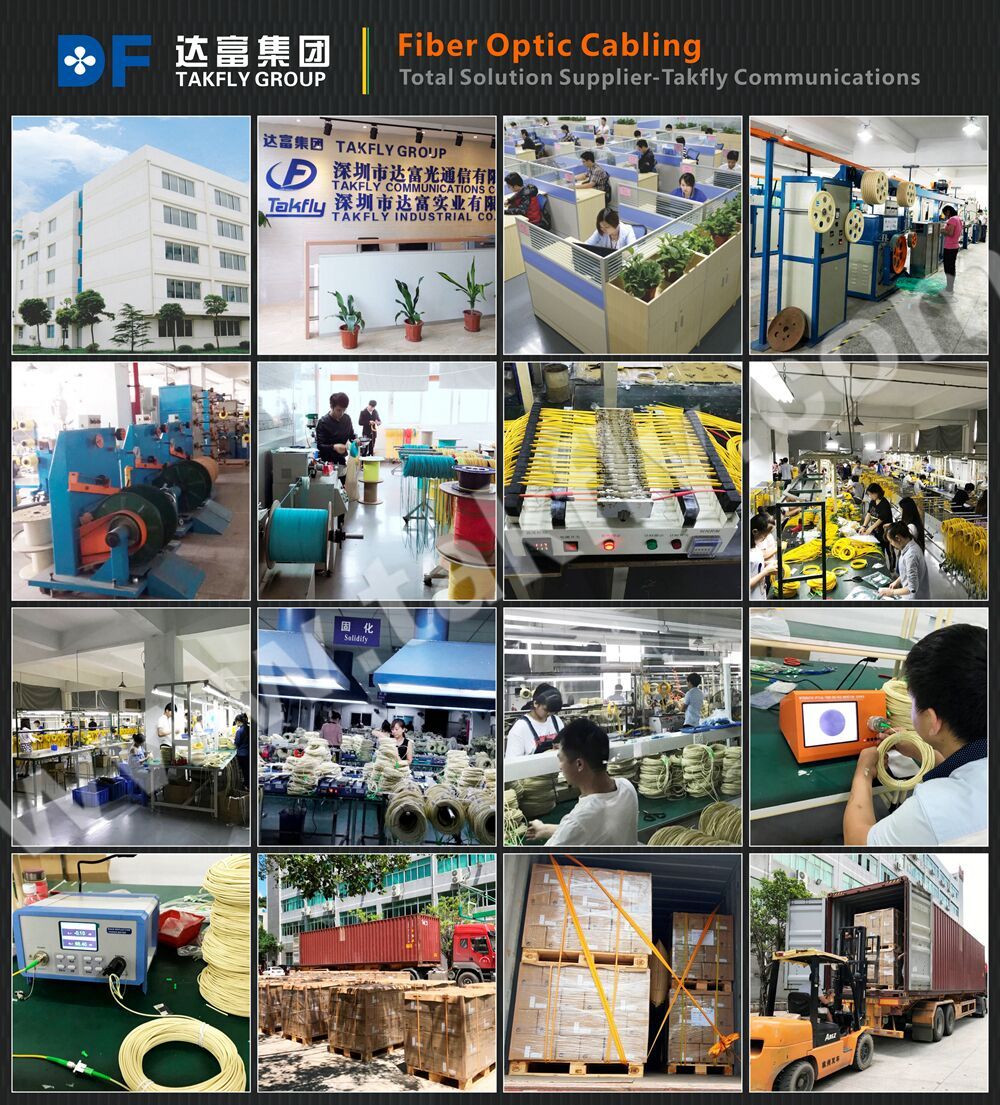

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
