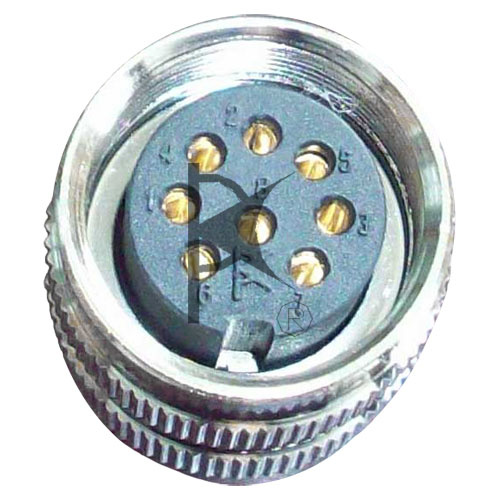

Aisg 8 Pins Water Proof Connectors

Name: Aisg 8 Pins Water Proof Connectors
Brand: all-electronics-online.com
SKU: 646145925
Availability: InStock
Rating: 4.7 (38 reviews)

Price:	US $ 9.9/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AISG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	7A
Voltage:	220V
Coupling:	Thread Coupling
UL File:	E308558

Product Description

Aisg 8 Pins Water Proof Connectors,The connectors of series FS1 are available with 3-8 contacts, screw coupling, can interchange with Amphenol C 091 A /B/D & Binder 423 series. Meet DIN45326 standard. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application. Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.UL certification:E308558.

Product Ordering
FS1- 8 T K - 8
1 2 3 4 5
1. Name: FS1 type connector
2. Number of contacts: 3, 4, 5, 6, 7, 8 PCS
3. Connector type: T: Plug; Z: Receptacle
4. Contacts type: J: Pin; K: Socket
5. Meet cable diameter: 6-9 mm

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
