Aisg Connector Waterproof Series

Name: Aisg Connector Waterproof Series
Brand: all-electronics-online.com
SKU: 835589715
Availability: InStock
Rating: 4.3 (57 reviews)

Price:	US $ 8.8-10.9/Set
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AISG
Protection:	IP67 Connectors
Shell:	Metal Shell
Meet Standard:	IEC130-9
Contacts:	1.5mm Diameter

Product Description

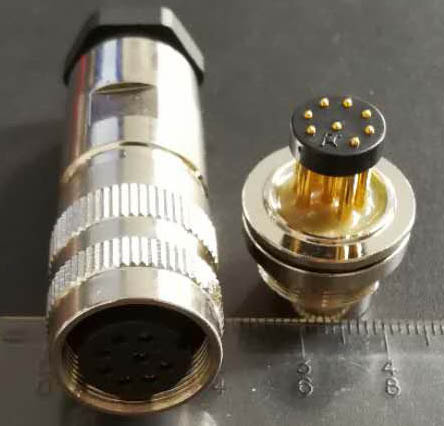

AISG Connector Waterproof Series
FS1 series water tight AISG Connectors,The connectors of series FS1 are available with 3-8 contacts, screw coupling, can interchange with Amphenol C 091 A /B/D & Binder 423 series. Meet DIN45326 standard. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application. Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.UL certification E308558.

Product Ordering
FS1- 6A T J - 8
1 2 3 4 5
1. Name: FS1 type connector
2. Number of contacts: 2,3, 4, 4A,5,5A,5B, 6,6A, 7, 7A,8 PCS
3. Connector type: T: Plug; Z: Receptacle
4. Contacts type: J: Pin; K: Socket
5. Meet cable diameter: 6-9 mm.
Technical characteristics:

Temperature	Relative humidity	Vibration	Shock	Endurance
-55ºC~+85ºC	90-95% at 40 ºC	10~1000Hz 196m/s²	490m/s²	1000 cycles

Contacts data

Contact	Current	Voltage	Contacts resistance
1.5mm	5-7A	60-250VAC	≤3mΩ

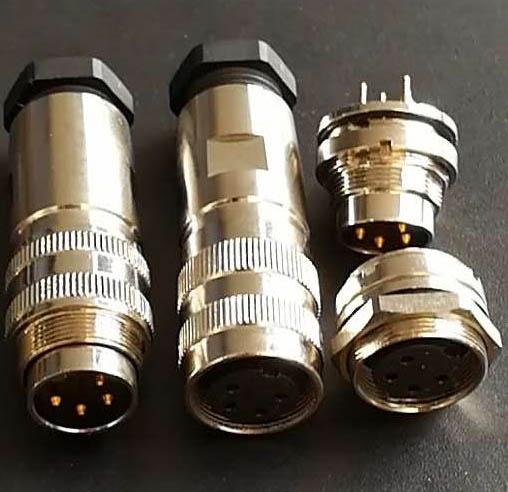

Similar connectors:

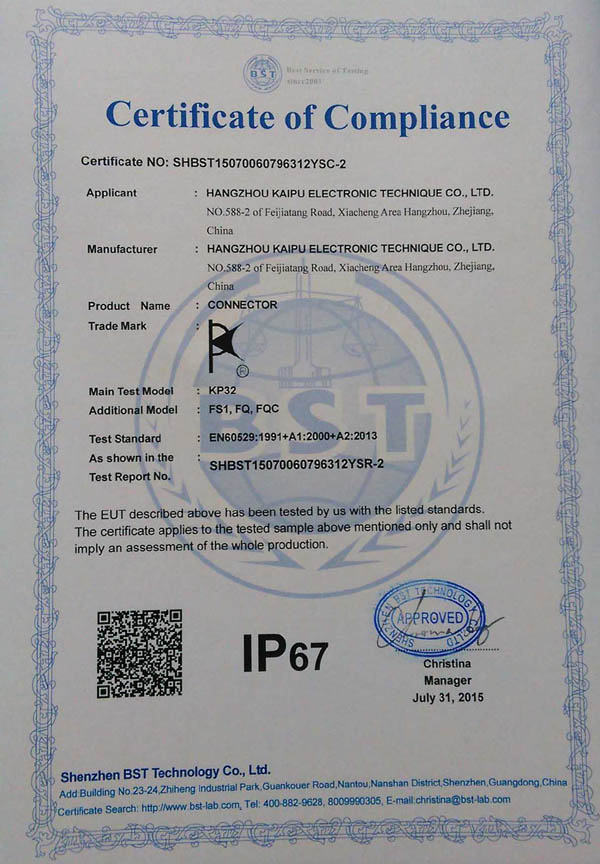

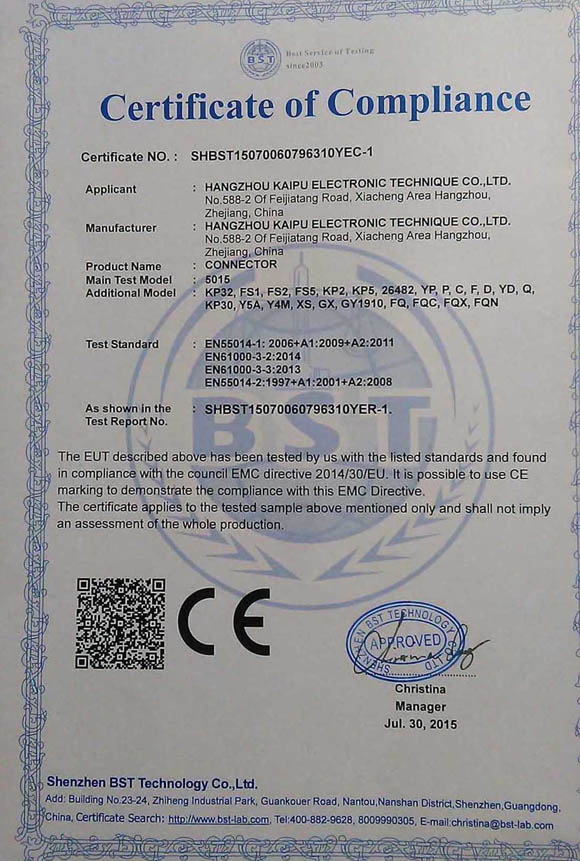

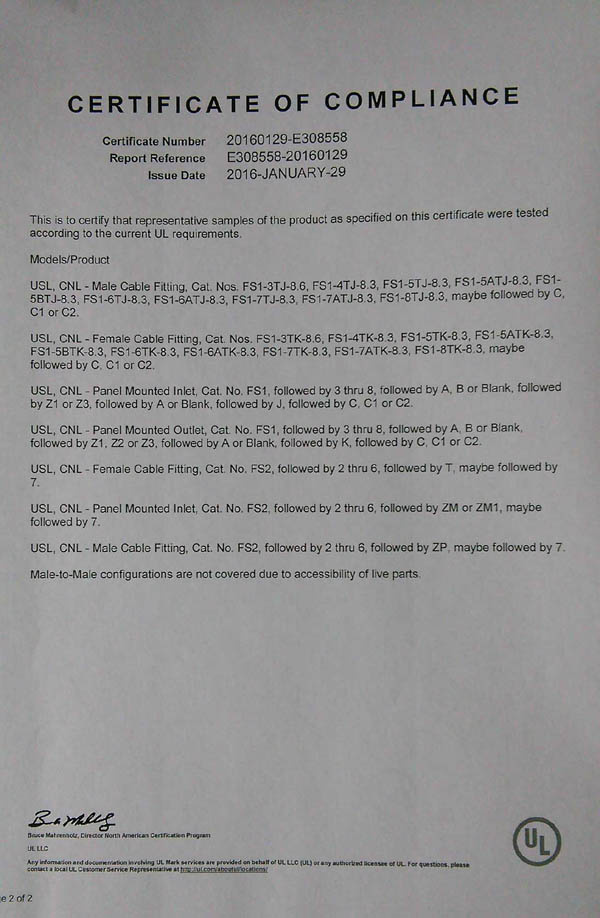

UL certificate and CE certificates:

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
