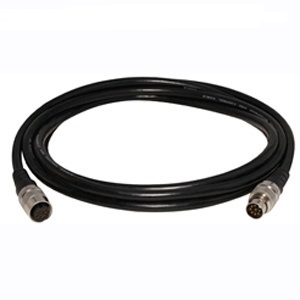

Aisg Test Cable

Aisg Test Cable
Price: US $ 25/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: AISG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RoHS: Mating Cycles
Application: RF Cable
Conductor Material: Copper
Cover Material: PVC
Certification: RoHS
Type: Test Cable
Model: Aisg
Brand: Ezcon

Product Description

AISG connectors provide power and connection control;
multi-core and waterproof design; easy to operate; safe and reliable.

The connector core numbers are from 3core to 8core, which is fully compatible with Amphenol's C091 serious;
Its water-proof grade reaches IP67, meeting DIN45326 standard.
It is widely applied in 3G/4G mobile communication networks nowadays.
Technology index
Core number8
rated voltage100V
Rated impulse voltage1200V
Rated current5A
Insulation resistance>10000MΩ
Contact resistance<5mΩ
Temperature range-40ºC-85ºC
Waterproof gradeIP67
Insertion force60N
Insulation materialPA66
Sealing materialSilicon rubber
 Contact platingGold
Wire gauge20-26AWG
Locking systemMetal screw lock
Working life≥500times
Naming rule

AISG-M-F-7-81
Connector series




Connector type
Connector type
Core number
Cable outer diameter
Length: m



EZCON Telecom Technology (Changzhou) Co., Ltd. Was formally founded on January 19, 2013, in Changzhou City, Jiangsu Province, Peoples Republic of China. EZCON is a product and solution provider, the company provide high quality, high performance and low cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors and high end test/calibration products. The company has the capacity of product design, engineering service, low cost production/sourcing, assembly, and testing. EZCON combines the advantages of low cost production in China with a high level of engineering expertise, service, and quality. EZCON Telecom Technology Co. Is a US-China joint venture. EZCON CEO, Dr. Zemin Liu is a recognized RF connector industry expert. Dr. Liu developed and designed the industry's most advanced EZCON series connector. He has over 20 years work experience working in the United States, Sweden, and China for world-renowned companies (Commscope, Tyco, Atlas Copco, Amphenol etc). The company management team consists of top technical experts and business development professionals in the telecom industries. EZCON Telecom Technology Co. LTDA.

Leading supplier for high quality test products (frequency range DC-100 GHz) and RF cable assemblies including test cables, adaptors, and calibration kits etc for R&D and production test applications as well as RF connectors and cable assemblies for wireless base stations. Our customers includes world-class telecom equipment suppliers as well as operators such as Commscope, Amphenol, AT&T, Huawei, Synergy Telecom (India) etc.
