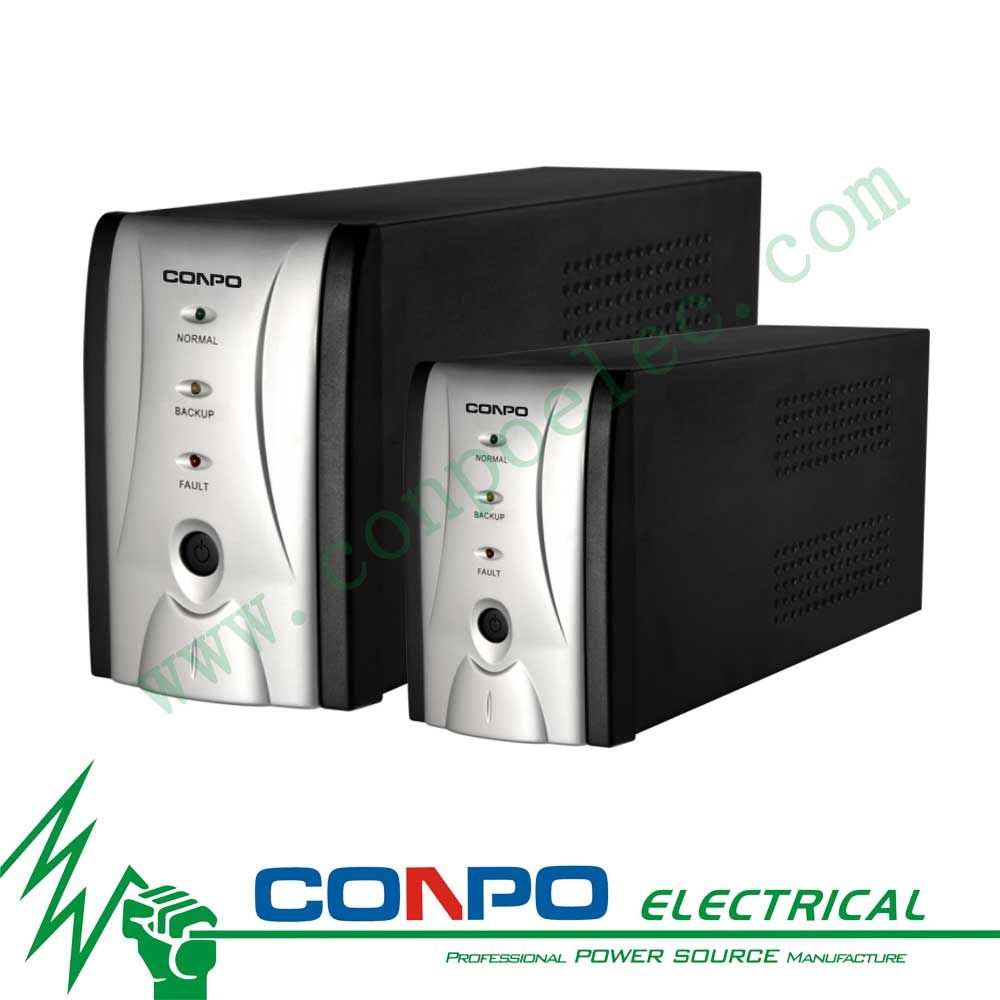

Ak Series Offline (Backup) UPS 400~1200va
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
AK400/600/800/1000VA/1200VA |
| Phase: |
Single Phase |
| Type: |
Offline/Back-up UPS |
| Protection: |
Full Protections |
| Application: |
Home PC, Soho, Workstations etc. |
| Classification: |
Offline/Backup UPS |
| Brand: |
Conpo |
Product Description
Elementary for data protection:
The off line UPS is in standby with batteries being charged in normal AC time. When the power supply unexpectedly shuts down, the built-in inverter will in no time convert the battery output into AC to keep stable power supply. The UPS is generally considered high rate, low noise while running and cost-effective, mostly used in comparably stable environment with a small fluctuation of utility power and lower requirement of power supply quality.
Functions & features:
1). Micro controller(CPU)
2).Waveform: square wave(battery mode)
3).Wide AVR range
4).Overload and short circuit protection
5).Low battery alarm
6).UPS Auto on when AC recovery
7).Off mode charging
8).Humidity: less than 90%
Specifications:
| Model | AK-400 | AK-600 | AK-800 | AK-1000 | AK-1200 |
| Rated capacity | 400VA | 600VA | 800VA | 1000VA | 1200VA |
| Power factor | 0.6 |
| Load type | Personal computer and other PC peripheral devices |
| AC voltage range | (140~290):±5Vac |
| AC frequency | Sync with AC |
| Output range(line) | 220Vac/230Vac ± 10%(Sine wave) |
| Output frequency(line) | Sync with AC |
| Output voltage(battery) | 220Vac/230Vac ± 5%(Sine wave) |
| Output frequency(battery) | (50/60) ± 1Hz (Frequency self-adapt system) |
| Transfer time | ≤10ms |
| Battery backup | > 6min (Half load) |
| Batter type | Sealed, maintenance-free lead acid |
| Battery capacity | 12V/4.5Ah
x 1pc | 12V/7Ah
x 1pc | 12V/9Ah
x 1pc | 12V/7Ah
x 2pcs | 12V/9Ah
x 2pcs |
| Battery protection | Auto protection. The UPS auto shutdown when battery voltage is low or high. |
| Battery charging | 8 hrs to fully charged |
| Short circuit | Auto protection. Output shuts off and the buzzer beeps continuously. |
| Overload | 110% < load percentage ≤ 120%, buzzer beeps; load percentage > 120%,
output shuts off, Buzzer beeps continuously. |
| Operating temperature | 0ºC~40ºC |
| Storage temperature | -15ºC~45ºC |
| Relative humidity | 0%~90% (No condensation water) |
| Noise | ≤ 35Db (1m from front panel) |
| Communication Interface | Intelligent RS-232/USB (Optional), when ordering, please specify it! |
| Network protection | RJ45/11 surge protector(Optional), when ordering, please specify it! |
| Physical | Weight(kg) | 3.8 | 4.6 | 5.4 | 8.5 | 10 |
| Size (L x W x H) mm | 245x90x145 | 291x90x145 | 325x90x145 | 341x122x195 |
