Alarming Using Fire Resistant Wire in Africa

Name: Alarming Using Fire Resistant Wire in Africa
Brand: all-electronics-online.com
SKU: 803557255
Availability: InStock
Rating: 4.8 (104 reviews)

Price:	US $ 0.1-0.5/Roll
Min Order:	100/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GEMTFC110406
Factory:	Shenzhen,Huizhou,Dongguan
Type:	Insulated
Conductor Type:	Solid
Conductor Material:	Copper
Certification:	RoHS
Application:	Fireproof Purpose
Range Of Application:	Fireproof Purpose
Brand:	Gemt

Product Description

Specifications
1.Conductor:0.5mm,0.7mm,0.8mm,1.0mm,1.13mm,1.38mm
2.PVC insulation and LSZH jacket
3.OEM is weclome
4.High quality

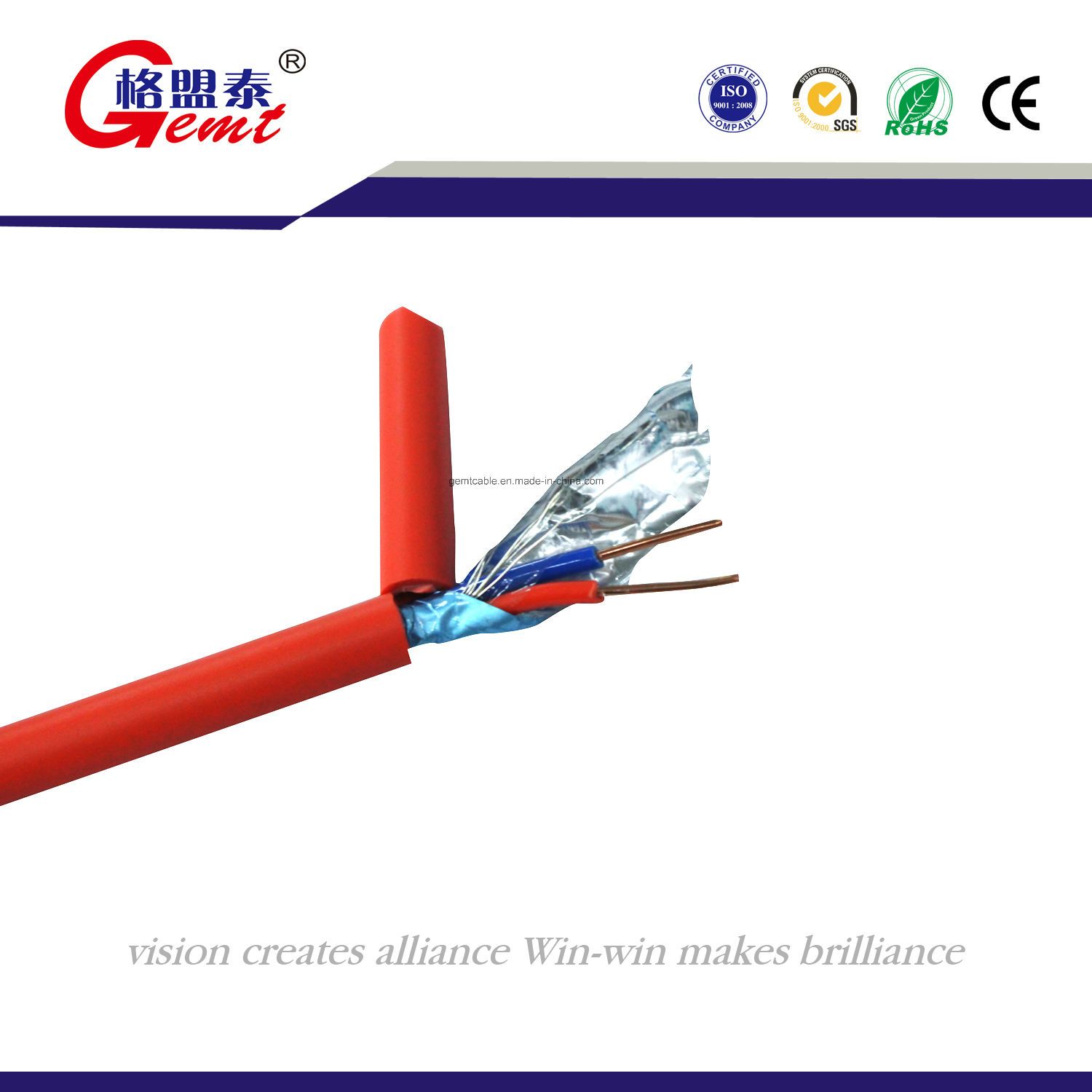

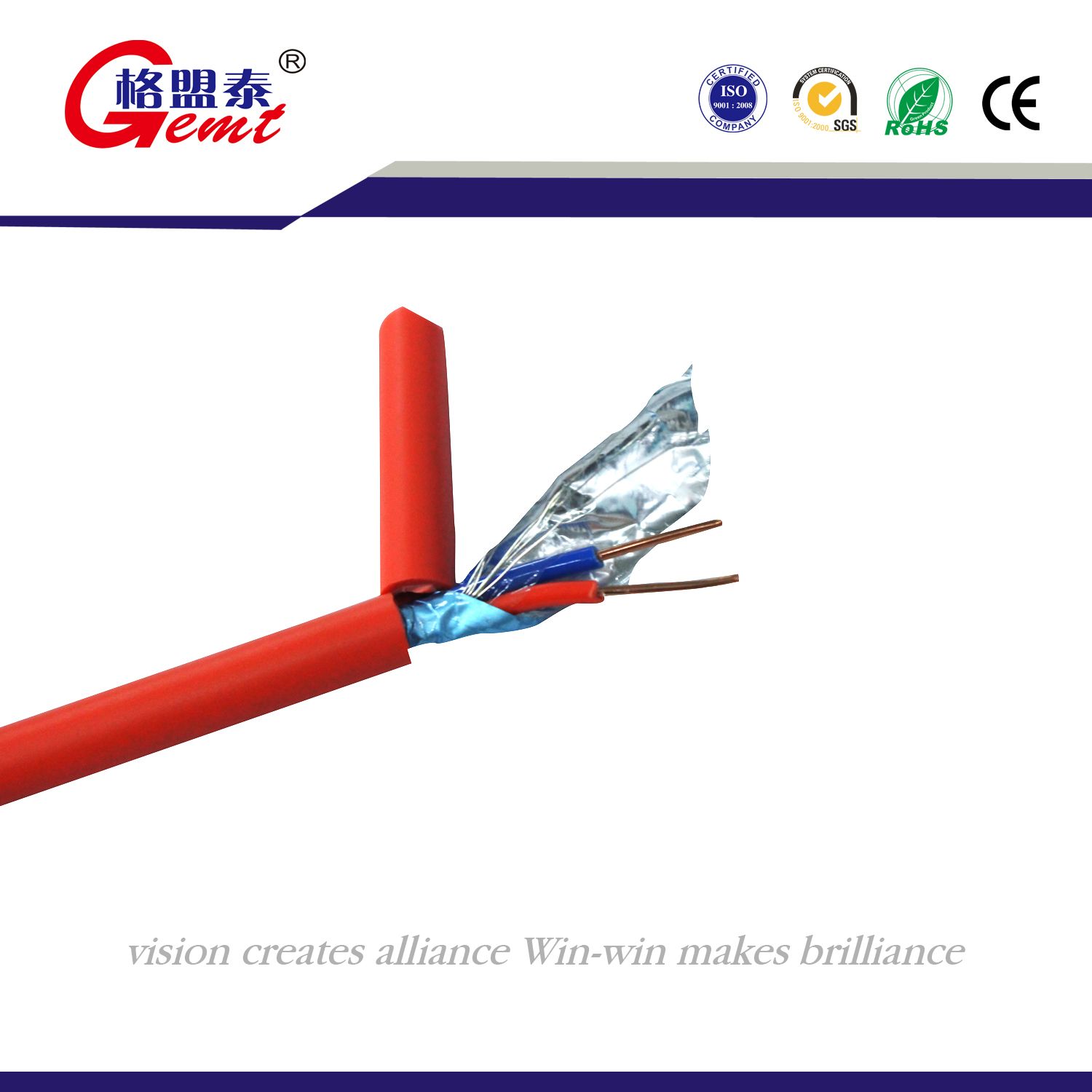

Fire wire cable
This wire is for indoor use in fire/life safety systems, fire and alarm notification, smoke/heat detection, building control circuits and initiating circuit systems. It is "Data Rated" for telephone and datacommunications applications. Exceeds UL1666 flame test for cables installed vertically in shafts (risers). Rated 300 volts and -20 degrees Celsius to 75 degrees Celsius in dry locations.

Ratings:
UL 1424 - type FPLR
UL 13 - Type CL3R

NEC Articles:
760 - Fire Alarm Systems
725 - Remote - Control, Signaling

Construction:
18 AWG solid bare copper, PVC insulation, color coded, cabled, aluminum / polyester foil tape plus tinned stranded copper drain(22 AWG), yellow PVC jacket, surface printed.
This 2 conductor #18 stranded wire has an insulation thickness of 9 (PVC) mils with the jacket thickness of 15 mils (PVC). The outside diameter is .162 inches and the net weight of 1000 feet of cable is 22 lbs. The capacitance is 53 picofarads per inch. The colors of the insulation on the 2 solid copper conductors are black and red.

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
