Product Description

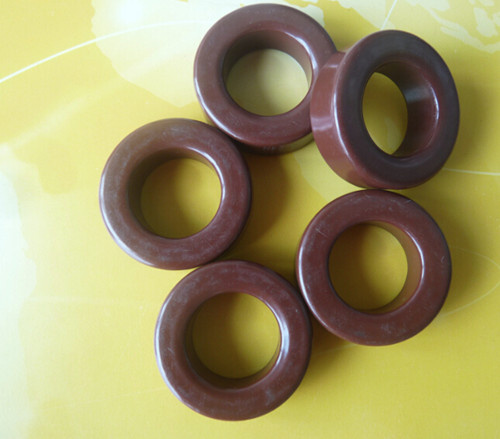

Nanocrystalline Toroidal core
Specifications
Nanocrystalline current transformer core, with moderate saturation magnetic induction, high permeability and low core loss.
Application Fields:
Applicable to current transformer of measuring services used on electrical power system and current transformer used on precision measuring instruments(e.g. electric meter).
Used in measuring power transmission distribution circuit and monitoring current and energy power
accracy requirement of mutual inductor glass 0.5, 0.5s, 0.2, 0.2s, 0.1
Performance
Made of Fe-based Nanocrystalline ribbons, with moderate saturation magnetic induction, high permeability, low core loss, and can effectively reduce the ratio error and phase displacement of current transformer.
1.We can respond the inquires with two hours
2.The delivery time about 5days
3.Our products have more competitive price
4.Our products which from the top supplier have the best raw material and
best quality

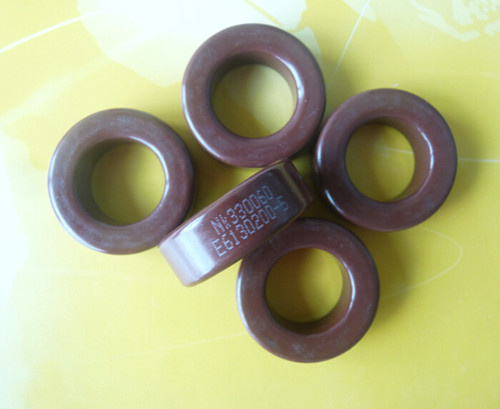

| Item Name | ALCI plug use High sensitive Nanocrystalline core for current transformer |
| Description | High permeability amorphous and nanocrystalline cores for current transformer. Cased type and Epoxy coating type are available.
Nanocrystalline cores for current transformers have similar initial permeability and temperature stability compared with permalloy, with small size, light weight and less expensive. Widely used in current measurement, digital watt-hour meter and Leakage protection.
Fe-based nanocrystalline core features very high permeability, high saturation flux density, low loss makes common mode choke has large inductance with only a few turns, low copper loss and small size.
We are professional producer of amorphous core and nanocrystalline core. |
| Detail | Nanocrystalline cores have very high permeability over low frequency to high frequency up to 30Mhz. They are very suitable for common mode choke to used as EMC filter to compress conducted common mode noise. Compared to traditional ferrite core, nanocrystalline core has a lot of advantages as high inductance, good filter effective, small size and volume, lower turns of copper wire, lower power consumption and high efficiency. |
| Advantage | Nanocrystalline cores have high curie temperature about 560ºC, much higher than traditional ferrite core about 200ºC. High curie temperature make nanocrystalline core excellent thermal stability, and can continuous working at up to 120ºC environment.
Nanocrystalline cores is the best choice for application of common mode choke. |
| Application | >> EMI filter common mode choke
>> Frequency converter
>> Inverter welding machines
>> Electrolytic plating power supplies
>> High Power Laser power supplies
>> Communication, high-speed railway power supplies
>> High frequency heating systems
>> High frequency and high power switched mode power supply |
| Characteristics | Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Curie temperature(ºC): 560
High Permeability: >20000
Stacking factor: >0.75
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 90
Ribbon thickness: 25μm
Core dimension: Custom made, subject to customer's drawing or specification |
| Specification Sheet | a-core build; b-window width; c-window height;d-strip width;
e-core width;f-core length;Lm-length of magnetic path;
Ac-section area;Mass-weight; |
Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:
1. Common Mode Filter Chokes
2. Current Transformer
3. Differential Mode Chokes
4. Automotive Chokes (for car audio)
5. Magnetic Amplifier
6. PFC Chokes
7. ISDN Splitter
8. GFCI (Ground-Fault Circuit Interrupters)
9. ELCB (Earth Leakage Circuit Breaker)
10. ALCI(Appliance Leakage-Current Interrupters)
11. Core and Current Transformer for energy meters (Watt hour -meters )
We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.
Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
