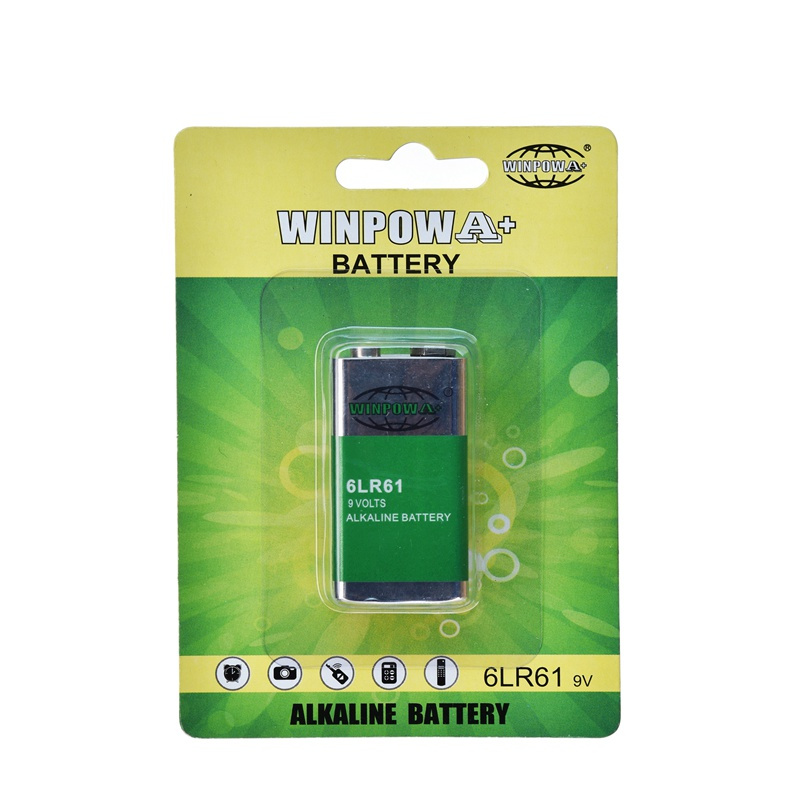

Alkaline Square 480mAh 9V Battery (6LR61)

Name: Alkaline Square 480mAh 9V Battery (6LR61)
Brand: all-electronics-online.com
SKU: 716108192
Availability: InStock
Rating: 5 (62 reviews)

Price:	US $ 0.1-0.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	6LR61 9v
Color:	Green
Mercury:	0%
Replace:	6f22
Charging Type:	Non-rechargeable
Nominal Voltage:	9V
Battery Type:	Zn/MnO2 Battery
Recycling:	Non-Recyclable
Certification:	SASO
Package:	Simple
Size:	Rectangular

Product Description

Alkaline square 480mAh 9V battery(6LR61)

	Min(mm)	MAX(mm)
H1	46.5	48.5
H2	45.0
L	24.5	26.5
W	15.5	17.5
D	12.45	12.95

Product overview:
Chemical System:Alkaline Zinc-Manganese Dioxide
Typical Voltage: 9V
Weight: 45g
Typical capacity: 480mAh (Conditions: 180discharge24hours per day at 20±2 ºC , end point voltage 5.4v)

Electrical Characteristics:

	Off-load Voltage (v)	On-load Voltage (v)	Short circuit current	Acceptance Standard
Initialwithin30 day	9.6	8.5	3	GB2828 commonly sampling AQL=0.4
After 12months	9.4	8.4	2.7	GB2828 commonly sampling AQL=0.4

Service Time:(condition: test temp. 20±2 ºC,tested within 30 days after delivery )

Discharge Condition			Average Minimum Discharge Time
Discharge load	Daily discharge time	End Point Voltage (v)	Initial within30day	After 12 mth at 20±2 ºC
620Ω	2h	5.4V	33H	29.7H
270Ω	1h	5.4V	12H	10.8H
270Ω	24h	5.4V	20H	18H
180Ω	24h	5.4V	15H	13H

Company quick view:
Huizhou Winpow Electronic Co.,Ltd is a China leading battery R&D and producing manufacturer. Products including alkaline & lithium manganese , carbon zinc and rechargeable type of batteries. Wide application area: household, office and industrial.

Customers service office:

FAQ:

Q:Can you help us for freight?

A:Yes,we also have trustable forwarders for you option, if you need.

Q:Can we have our own packaging design?

A:Of cause, customized packaging is available, but it has MOQ required.

Q:How long is your warranty?

A:We offer 1 years warranty after order delivery.

WINPOW specializes in battery R&D and production. We provide a wide variety of battery products, including alkaline button cells, 23A/27A batteries, lithium manganese button cells (CR2032), LR6/LR03 alkaline cylinder batteries, R6/R03/6F22 Carbon zinc batteries, lithium primary cylinder batteries (CR123A, ER14250), zinc air batteries and rechargeable batteries (Ni-MH, lithium ion and lead acid).

Huizhou WINPOW Electronic Co., Ltd, the first plant of WINPOW, was established in April 2007. Through over a decade of efforts, we have built three plants, one in Huizhou for producing alkaline button cells and 23A/27 batteries, one in Shenzhen for providing battery diaphragm, and one in Shaoyang for supplying lithium batteries.

As a battery specialist, WINPOW has independent IP rights and R&D capabilities in batteries and are already at the forefront of the industry for many years. We are home to a host of industry professionals who have their papers published in authoritative magazines of China's battery industry, such as Battery and Battery Industry. Our products are widely embraced for extraordinary cost performance and superb leakage resistance. WINPOW's 23A, 27A, and lithium manganese button cells are best-selling products in Chinese battery market, which makes WINPOW an authorized manufacturer of many reputable brands.

Driven by the goal of going global, we established WINPOW (HK) Co., Ltd and WINPOW Industry Co., Ltd. As yet, WINPOW has extended its footprint throughout more than 40 countries and regions including Europe, North America, South America, and Middle East, and its exports are still increasing at an annual rate of 20%. Today, WINPOW's diversified products and premium services are accessible to customers from all around the world.

WINPOW will always keep to its business philosophy of being "customer-centric, honest in cooperation, innovative, and in pursuit of excellence. We will stay focused on battery R&D and production and push WINPOW forward to be a world-leading battery manufacturer.
