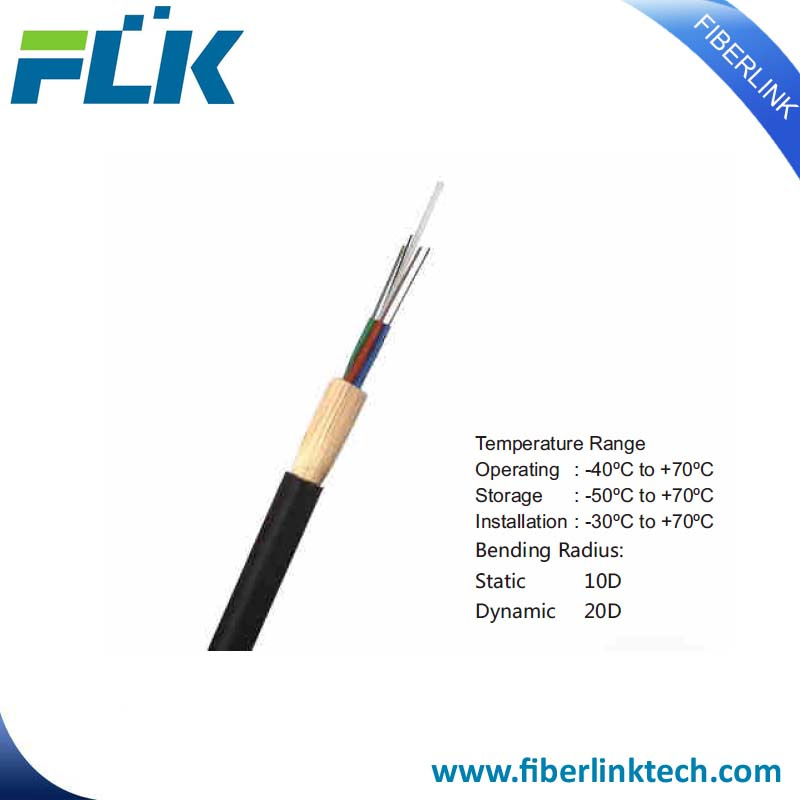

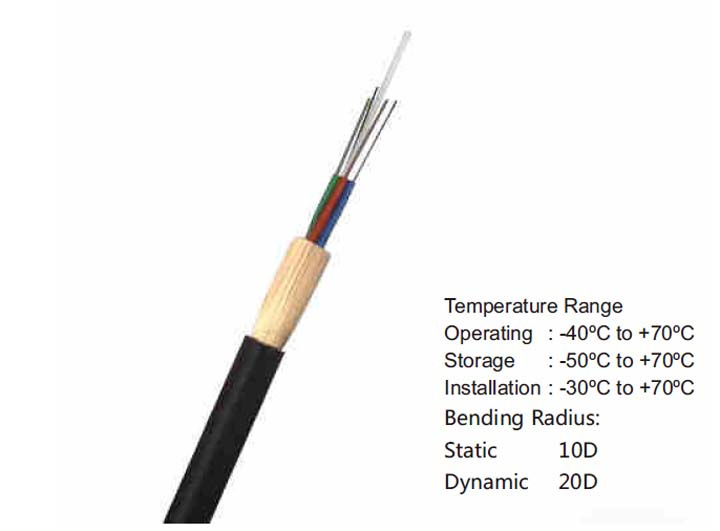

All Dielectric Self-Supporting ADSS Optical Fiber Aerial Cable
| Price: |
US $ 1-10/Meter |
| Min Order: |
50/Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
Mini-Span ADSS cable |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
ADSS Cable |
| Sheath Material: |
LSZH |
Product Description
DescriptionMini-Span All-Dielectric Self-Supporting (ADSS) cable's designed for outside plant aerial and duct applications in local and campus network loop architectures.From pole-to-build to town-town installations, the Mini-Span cabling system, which includes cables, suspension, dead end and termination enclosures, offers a comprehensive transmission circuit infrastructure with proven, high-reliability performance.See EFON's Fiber Optic Cable Hardware catalog for more information.Mini-Span includes fiber counts up to 144 optical fibers and any type or combination
of single-mode and multi-mode fibers with the cable. Pole-to-Pole span lengths range from 50 feet to over 650 feet(30-200meters).FeaturesCan be installed without shutting off the power.
Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance of tensile strength and temperature.
The design life span is over 30 years.ApplicationsThe actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
For overhead power lines under 110kV, PE outer sheath is applied.
For power lines equal to or over 110kV,AT outer sheath is applied.
The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.Optical Characteristics| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm |
Attenuation
(+20ºC) | 850 nm | | | ≤3.0 dB/km | ≤3.3 dB/km |
| 1300 nm | | | ≤1.0 dB/km | ≤1.0 dB/km |
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | | |
| Bandwidth | 850 nm | | | ≥500 MHz·km | ≥200 Mhz·km |
| 1300 nm | | | ≥500 MHz·km | ≥500 Mhz·km |
| Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
| Cable Cut-off Wavelength λcc | ≤1260 nm | ≤1450 nm | | |

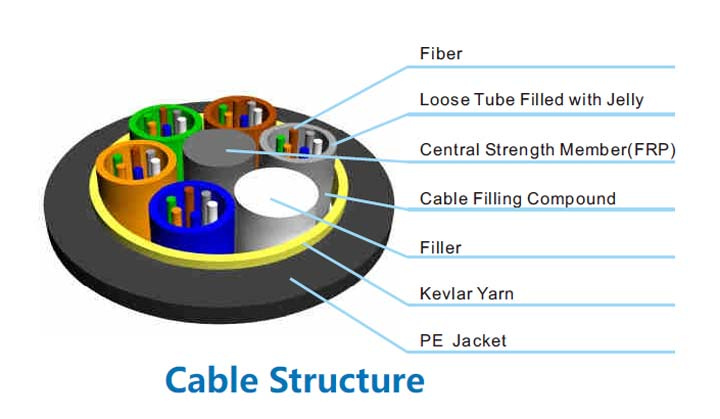

Structure and Technical SpecificationsRef. Outer
Diameter
(mm) | Ref. Weight
(kg/km) | Rec. Daily Max.
Working Tension
(kN) | Max Allowable
Working Tension
(kN) | Break
Strength
(kN) | Strength
Member
CSA
(mm²) | Modulus of
Elasticity
CSA
(kN/mm²) | Heat
Expansion
Coefficient
(×10 - 6 /K) | Suitable Span
(NESC Standard,m) |
| PE Jacket | AT Jacket | A | B | C | D |
| 11 | 110 | 120 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 11.5 | 115 | 125 | 22.5 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 12 | 120 | 130 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
