Takfly Communications Co., Ltd. >> All Type 1-30dB Fixed Sc St FC LC Optical Attenuator

All Type 1-30dB Fixed Sc St FC LC Optical Attenuator

All Type 1-30dB Fixed Sc St FC LC Optical Attenuator
Price: US $ 2.5/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: optical Attenuator
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types: Optical Attenuator
Attenuation Value(dB): 1-10dB 15, 20, 30dbdb
Housing Material: Plastic or Metal
Attenuation Precision(dB): Less Than 0.1dB
Ferrule Material: Ceramic Metal
Operation Temperature(ºC): -25-+70
Storage Temperature(ºC): -40-+80
Transmission Medium: Single-Mode
Structure: LC
Number Of Cores: Single-Core
Ferrule Endface: PC(',UPC)

Product Description

All Type 1-30dB Fixed Sc/St/FC/LC optical Attenuator

Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
It is often used to limit the optical power received by the photodetector to within the limits of the optical receiver.

Features:
Low back reflection and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
FC, SC, ST, LC optional
Plastic or metal housing material

Application:
Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment


TypesFC,SC,LC,ST,FC/SC,SC/ST
Attenuation value(dB)1-10db 15,20,30dbdB
Attenuation precision(dB)                ≤0.1dB
Housing material               Plastic or metal
Ferrule material              Ceramic metal
Operation temperature(ºC)               -25-+70
Storage temperature(ºC)                -40-+80

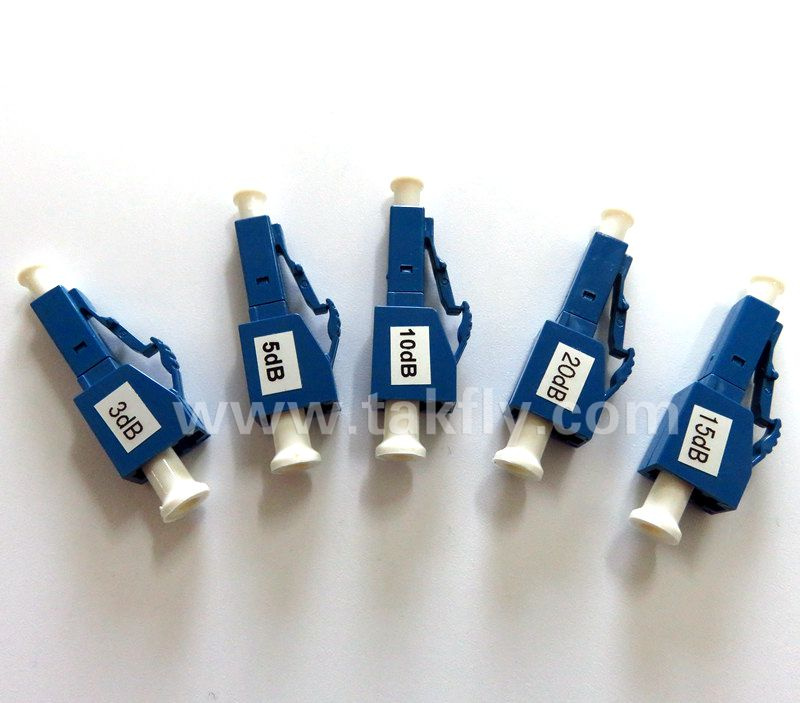

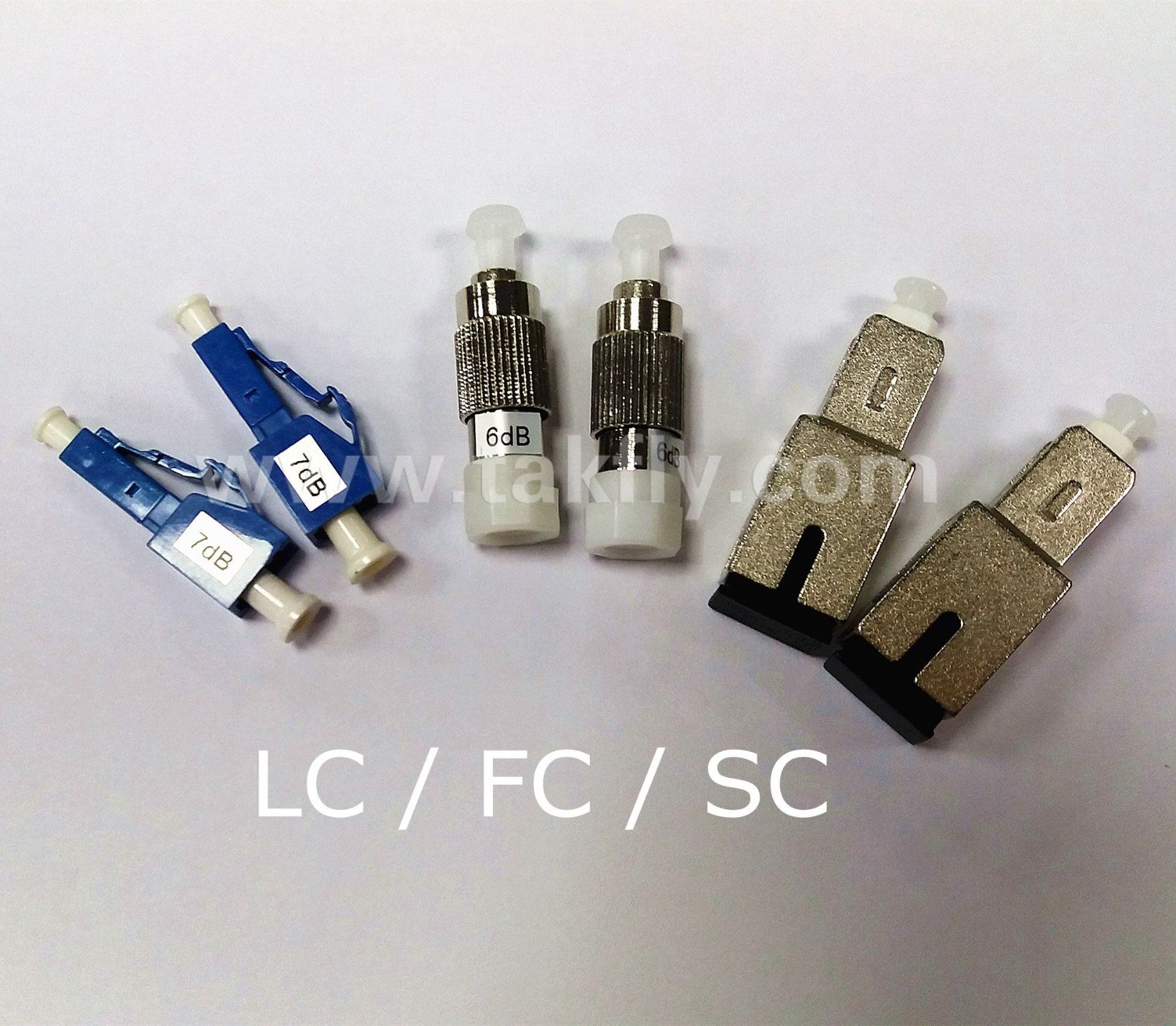

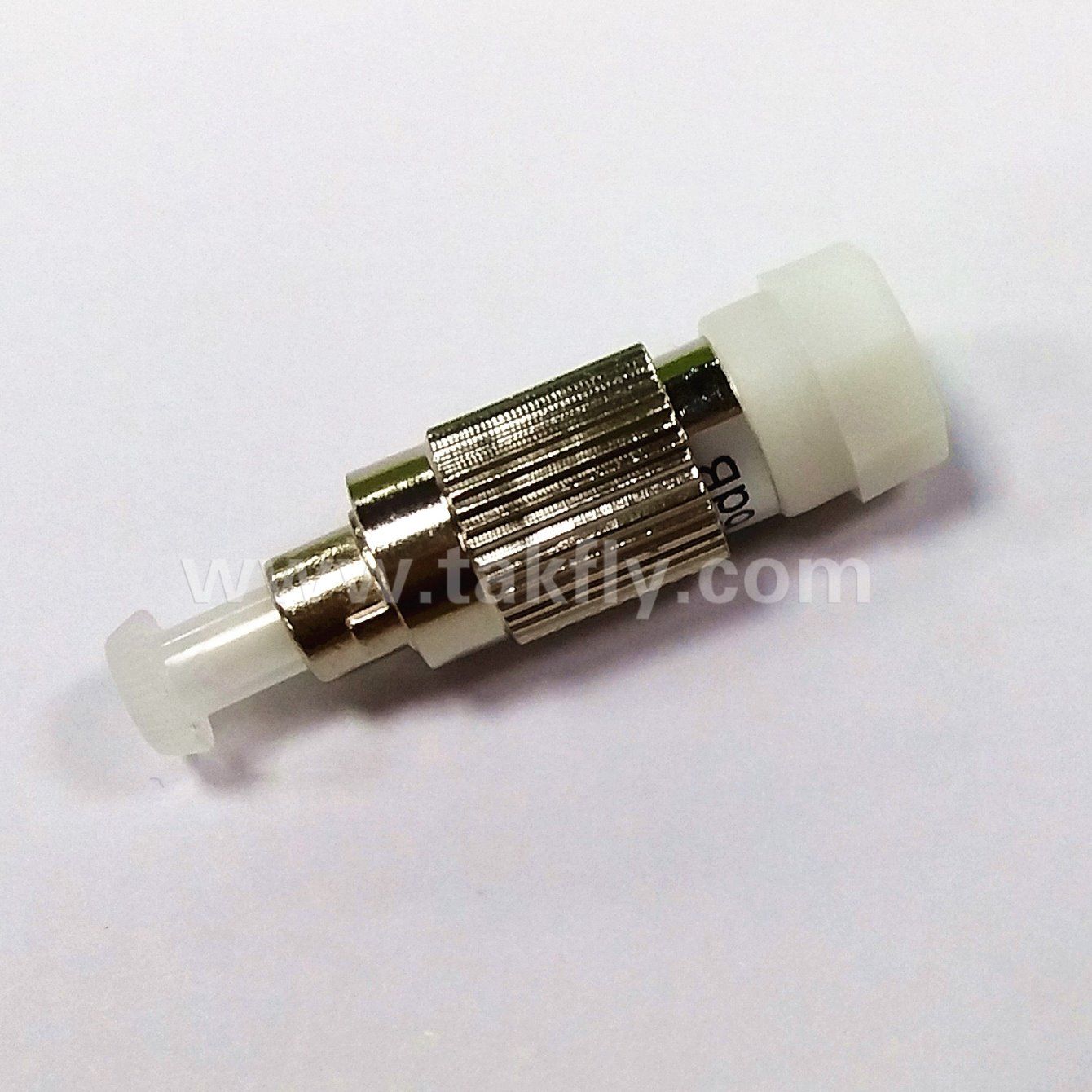

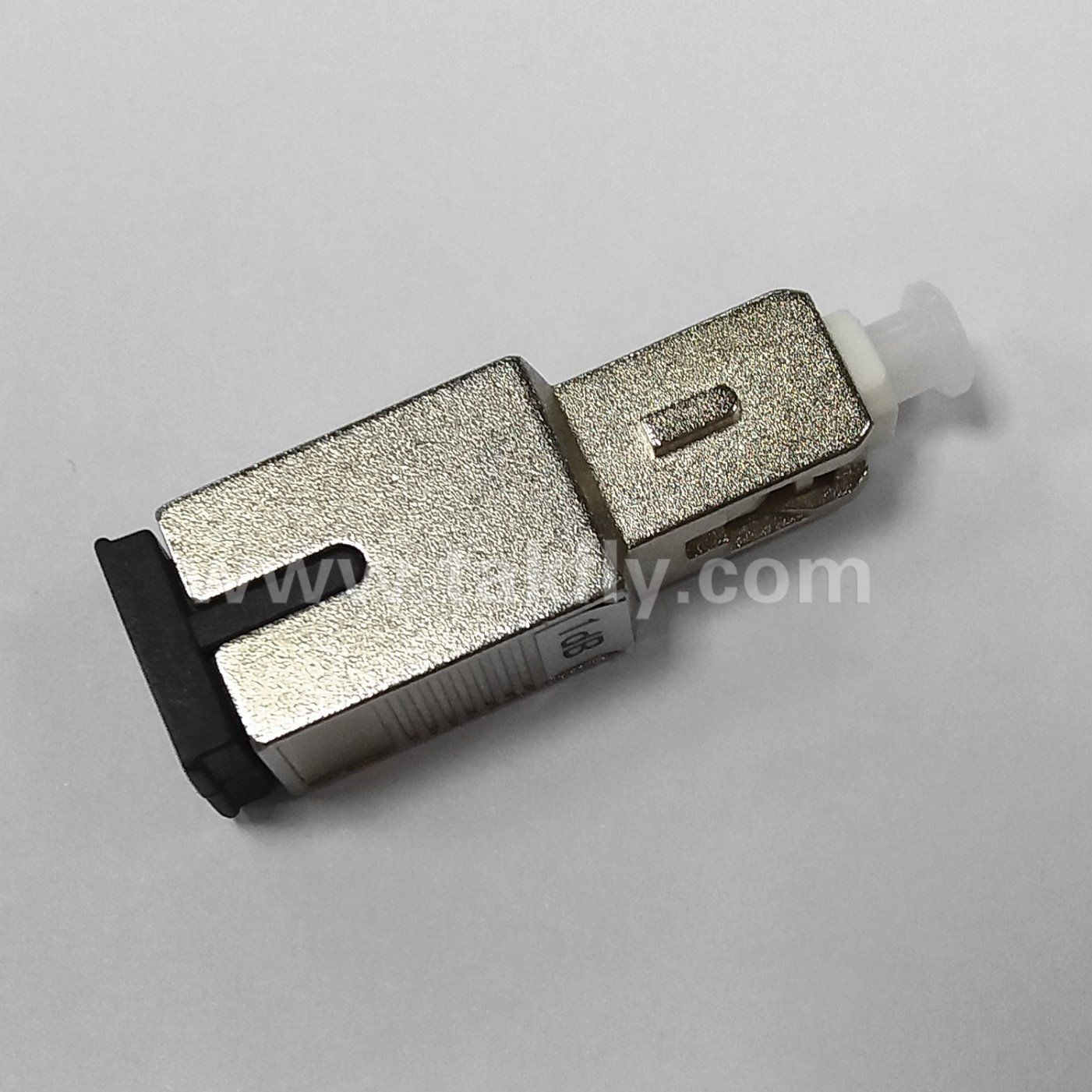

All type attenuator






Our Certification

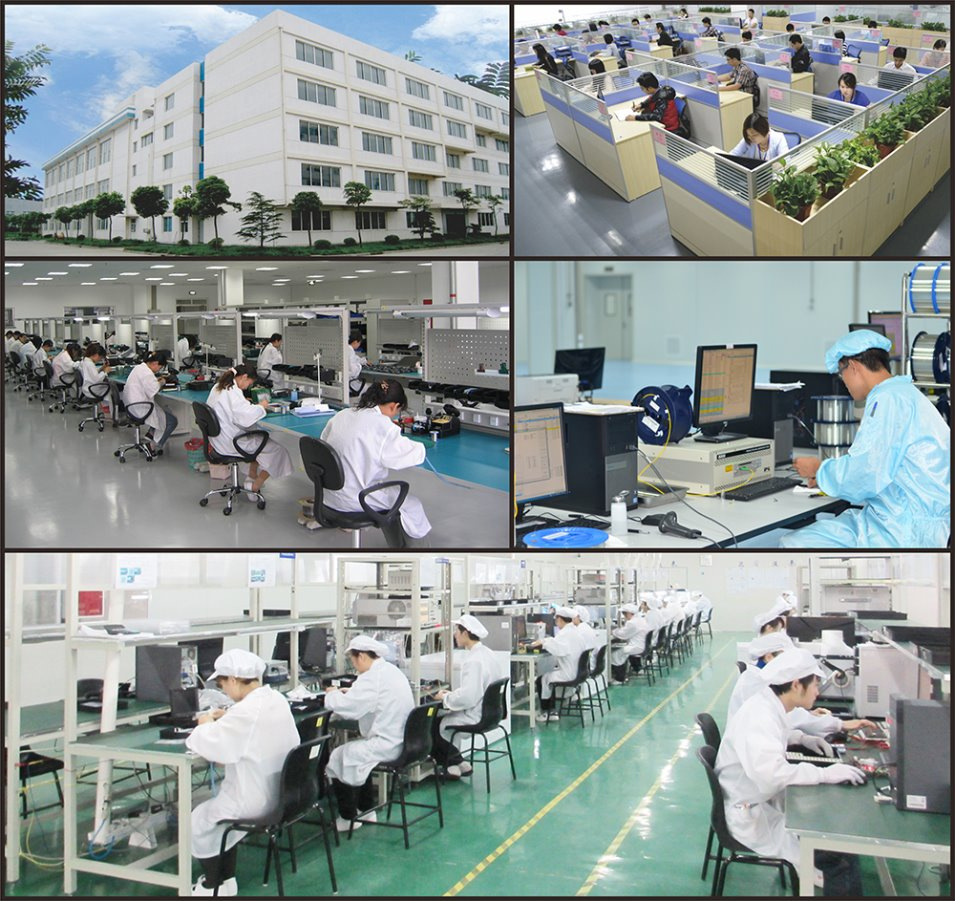

Our factory


For further information,please don't hesitate to contact me!







Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
