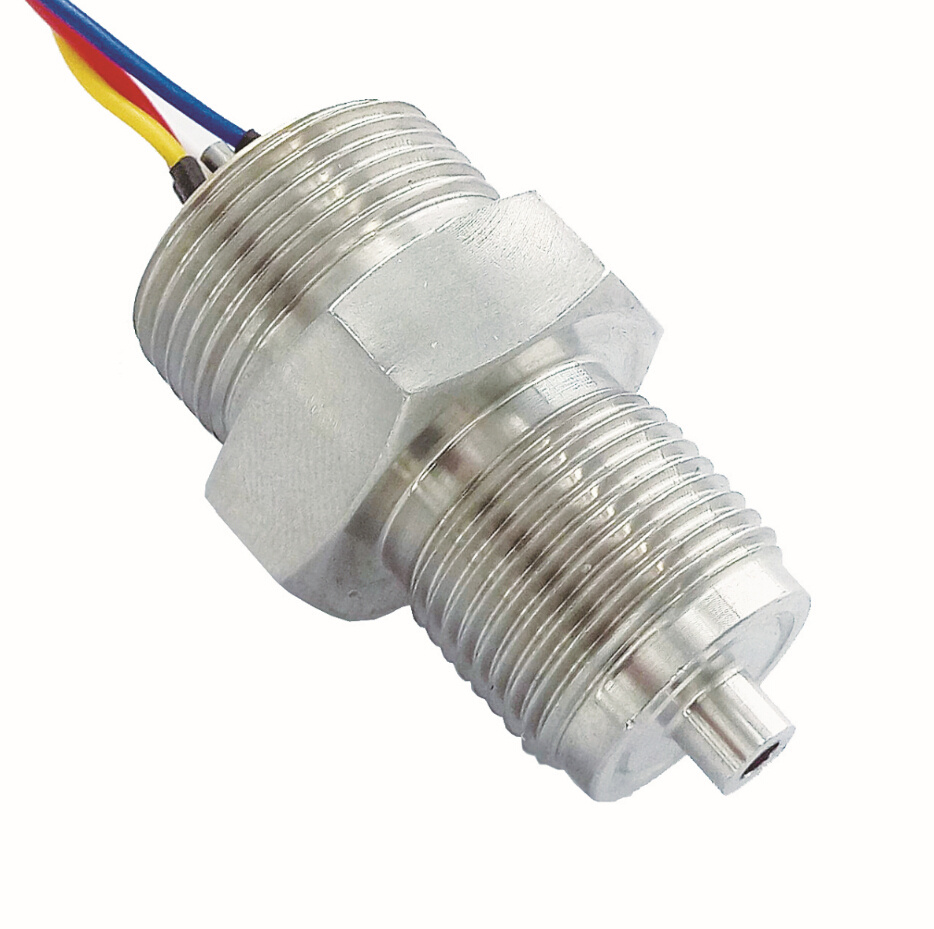

All Welded with Thread Piezoresistive Silicon Pressure Sensor (PC11B)

Name: All Welded with Thread Piezoresistive Silicon Pressure Sensor (PC11B)
Brand: all-electronics-online.com
SKU: 732226592
Availability: InStock
Rating: 4.7 (21 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC11B
Pressure Range:	-100kpa…0~10kpa…100MPa
Pressure Reference:	Gauge, Absolute, Sealed Gauge
Zero Output:	±2mv
Excitation:	1.5mA, 10VDC
Operating Temp.:	-40ºC-125ºC
Input Impedance:	2KΩ-5KΩ
Oil Filling:	Silicon Oil
Housing Material:	304
Diaphragm Material:	316L

Product Description

Full welded seal, can be used in harsh environment
High performance, all solid, corrosion resistant
High accuracy and stability
Strong anti-interference, good long-term stability
Constant current excitation option
Customization available

PC11B All Welded Pressure Sensor is to package PC10 pressure sensor into the workpiece with standard pressure connection. It uses fully welded seal, avoiding hidden dangers caused by O-ring seal in harsh environment.

PC11B is applicable to the standard housing support for instrumentation manufacturers and industries of columnar transmitters, 2088, E+H, etc. It is widely used in the process control and measurement in the industries including petroleum, chemical, metallurgy, aviation, aerospace, shipbuilding, medical equipment, vehicles, refrigerators, compressors, etc.

Pressure range
Pressure range	-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Overpressure	200%F.S.(<10MPa) \| 150%F.S.(≥25MPa)
Output signal
Zero output	±2mV
Span output	1.5mA Excitation: ≥40mV (≤35kPa); ≥60mV (Other ranges) \| 10V Excitation: ≥60mV (≤35kPa); 80~120mV (Other ranges)
Specification
Excitation	1.5mA \| 10VDC
Compensated temp.	0ºC-60ºC (≤35kPa) \| -10ºC-70ºC (Other ranges)
Operating temp.	-40ºC-125ºC
Storage temp.	-40ºC-125ºC
Zero temp. coefficient	0.02%F.S. /ºC(≥100kPa) \| 0.04%F.S. /ºC(<100kPa)
Span temp. coefficient	0.02%F.S. /ºC(≥100kPa) \| 0.04%F.S. /ºC(<100kPa)
Insulation resistance	200Mohm/250VDC
Input impedance	2kΩ-5kΩ
Long term stability	≤0.2%F.S.S/year
Vibration	20g (20-5000Hz)
Shock	100g (11ms)
Response time	≤1ms(up to 90%F.S.)
Oil filling	Silicon oil
Material	Housing: Stainless steel 304 \| Diaphragm: Stainless steel 316L
Medium compatibility	All the liquids and gases compatible with the diaphragm

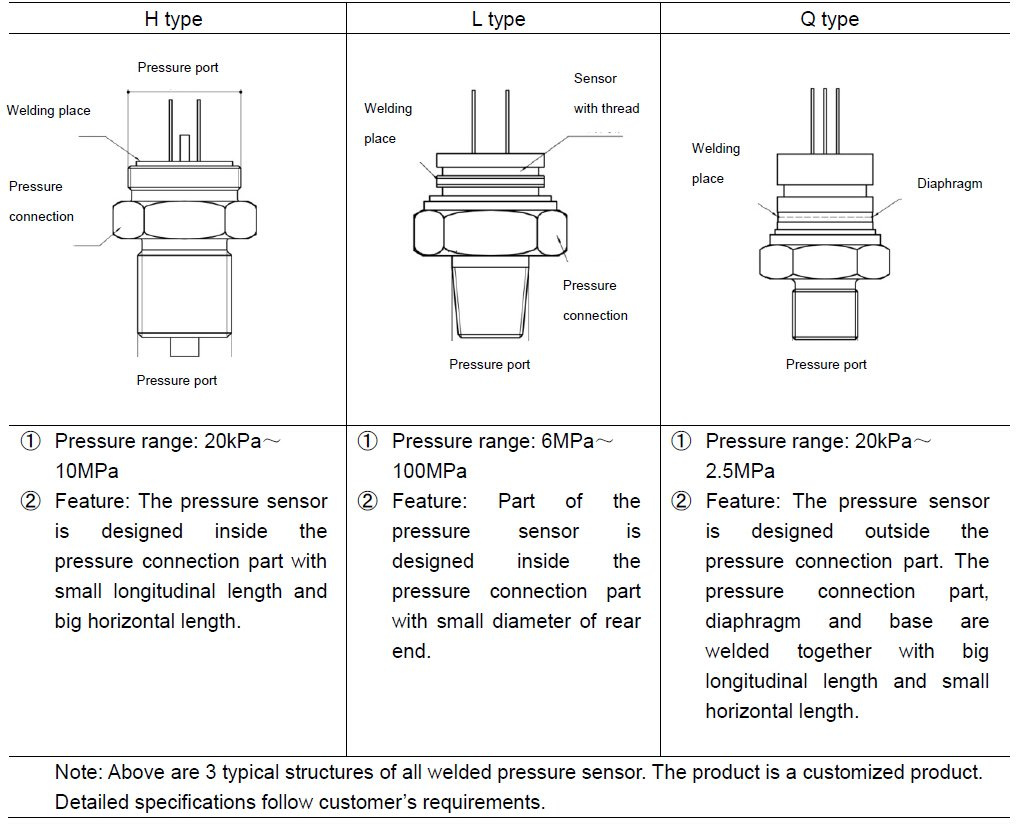

Structure
