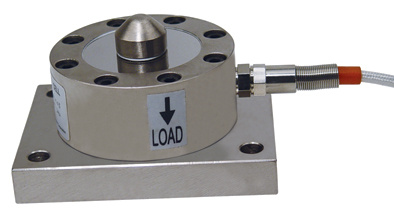

Alloy Steel Button Type Load Cells/Pancake Load Cell

Alloy Steel Button Type Load Cells/Pancake Load Cell
Price: US $ 78/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: HMD2004
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Load Cell
Customized: Accept
Capacity: 1~30t
Output Sentivity: 2.0
Compressive Error: 0.03%F.S
Cetificate: CE/ISO9001:2008/Rhos
Output: Analog or Digital
Measure Method: Automatic
Structure: Electronic Platform Scale
Display Type: LCD
Material: Alloy Steel(40crnimo)

Product Description

Load Cell, Weight Sensor

Capacity: 1-30t

Accuracy: C3

With OIML approval certificate

Suitable for Bench Scales, Platform Scales, etc.

Dimension:
Rated Load 1~30t
Rated Output 2.0000±0.001MV/V
Total Error ±0.02%F.S
Recommended Excitation Voltage 5V~18V(AC or DC)
Maximum Excitation Voltage 24V(AC or DC)
Zero Balance ±1%F.S
Input Resistance 780±30Ω
Output Resistance 700±3Ω
Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30~+70)°C
Compensated Temperature Range (-20~+60)°C
Temperature Effect On Load ±0.02%F.S/10°C
Temperature Effect On Zero ±0.02%F.S/10°C
Construction Alloy Steel
Protection Class IP68&IP67
Citation GB/T7551-2008/OIML R60
Mode of Connection Input+:Red
Input-:Black
Output+:Green
Output-:White
Yuyao Tongyong Meter Co., Ltd is a factory that was eatablished in 1993s, so far for more than 20 years experience.

Our company covers more than 18000 square meters. We own high character scientific researchers troop. We also have various of advances specialized workshop equioments and famous enterprise which specialized in load cells, weighing indicator and electronic balance and so on.

Our products are popular in the whole country and also be exported to European, American and African countries. And have been granted ISO9001 Quality System Certification.

Located in China's eastern coastal historical and cultural city - Yuyao City, Zhejiang Province. Hangzhou-Ningbo railway, Hangzhou-Ningbo Expressway across the whole territory of Yuyao, from Ningbo Port and Ningbo International Airport more than 50 kilometers, Hangzhou Bay Bridge through Shanghai, land, sea and air transportation convenient.

The company is specialized in producing resistance strain gauge load cell, weighing instrument and electronic weighing electronic scale series of products business; Products sell well throughout the provinces, municipalities and autonomous regions, and exported to Europe, Southeast Asia and other countries. The first batch of high-temperature load cell to achieve the localization of production, the first domestic release of the "high temperature load cell measurement verification procedures" (JJG (Zhejiang) 68-2003), by the Zhejiang Weighing Management and the Company jointly drafted the formulation. The company is high-tech enterprises in Zhejiang Province, Ningbo City, high-tech enterprises, with ISO series of certificates, the national explosion-proof product certification, won several government science and technology awards, the national intellectual property special certificate, GM has been to build China's brand in the struggle.

The main products are: TY series weighing equipment (weighing sensor, electronic scales, electronic weighing, control system), TY- (G) series of high temperature load cell, SCS series of electronic truck scale (ground level, SCS series of electronic truck scale, YD series of various hopper weighing system, HSB series of high temperature ladle (large bags, tundish, etc. ) electronic scales, HCC series of various electronic car scale transformation, XK series weighing control (SCS) -LCS series of electronic weighing device cylinder, OCS series of electronic crane scale and other non-standard electronic scales, such as product design and manufacturing; GCS series track weighing system, TCS series size electronic scales,

Companies attach importance to infrastructure construction and basic management and construction, and strictly implement the scientific management system. The implementation of "customer-centric, quality of survival, " the quality policy, adhere to the quality and efficiency of the road of development, with sophisticated production equipment (100t lever computer load system, large CNC machining centers, large folding, bending machines, Clean patch operation workshop, CAD auxiliary software, and other leading domestic), strict management, high-quality products and good service to win customers and the market.
