Alloy Steel Compressive Load Cell with Capacity 1 Mn up to 5 Mn

Name: Alloy Steel Compressive Load Cell with Capacity 1 Mn up to 5 Mn
Brand: all-electronics-online.com
SKU: 795313125
Availability: InStock
Rating: 4.9 (66 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-62D
Type:	Pancake Load Cell
Capacity:	From 1000kn to 5000kn
Safe Overload:	Fs% 120
Ultimate Overload:	Fs% 150
Pattern:	Pancake Load Cell

Product Description

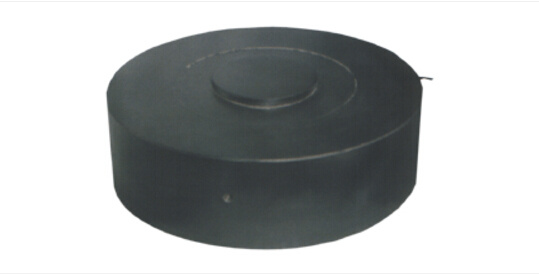

Alloy Steel Compressive Load Cell with Capacity 1 MN up to 5 MN

Product Specifications:

QH-62D load cells are available in the manifold accurate
measurement in the capacities 1MN to 5MN.
Alloy steel,surface bluing treatment,spray painted,
oil-proof,waterproof and anti-corrosion,suitable for
groundsill measuring and other engineeringmeasuring fields.
Spoke type,easy installation,suitable for special force
measuring equipment.
Safety and anti-explosion product,can be used in atrocious
environments and hazardous areas.

Features:

Capacities:1MN~5MN.
Alloy steel construction.
High reliability and long life span.

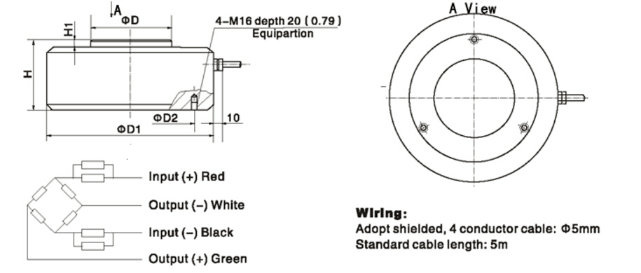

Electrical connection and Dimensions:

Capacity(t)	100	200	300	400	500
D	59(2.32)	78(3.07)	91(3.58)	110 (4.33)	133 (5.24)
D1	260 (10.24)	290 (11.42)	330 (12.99)	400 (15.75)	400 (15.75)
D2	200(7.87)	225 (8.86)	251(9.88)	296(11.65)	307 (12.09)
H	80(3.15)	104(4.09)	123(4.84)	132(5.20)	132(5.20)
H1	10(0.39)	10(0.39)	10(0.39)	10(0.39)	10(0.39)

Technical Specifications:

Capacity	MN	1/2/3/4/5
Accuracy		G1	G2	G3
Combined error	(%FS)	0.1%	0.2%	0.3%
Creep	(%FS/30min)	0.05%	0.05%	0.05%
Temperature effect on sensitivity	(%FS/10ºC)	0.05%	0.1%	0.2%
Temperature effect on zero	(%FS/10ºC)	0.05%	0.1%	0.2%
Output sensitivity	(mv/v)	≥ 2.0
Input resistance	(Ω)	1072±5
Output resistance	(Ω)	1050±5
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.0
Temperature,compensated	(ºC)	-10~+40
Temperature,operating	(ºC)	-35~+65
Excitation,Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300

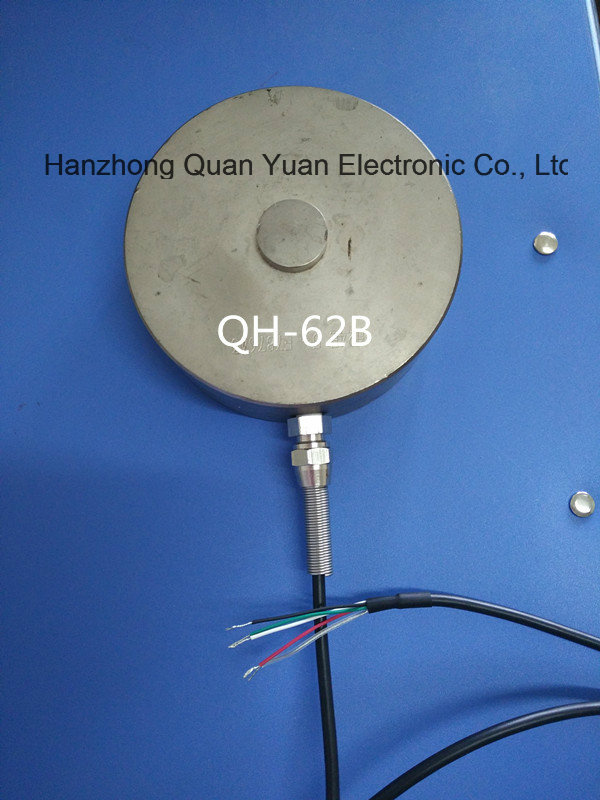

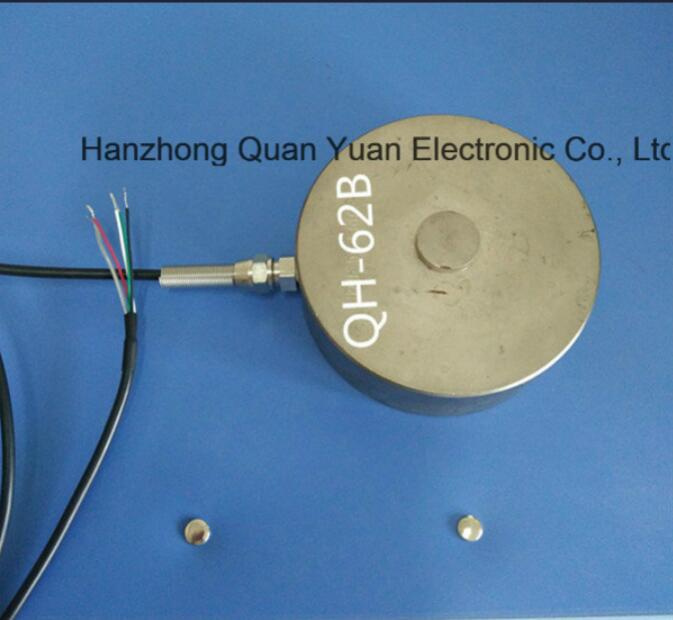

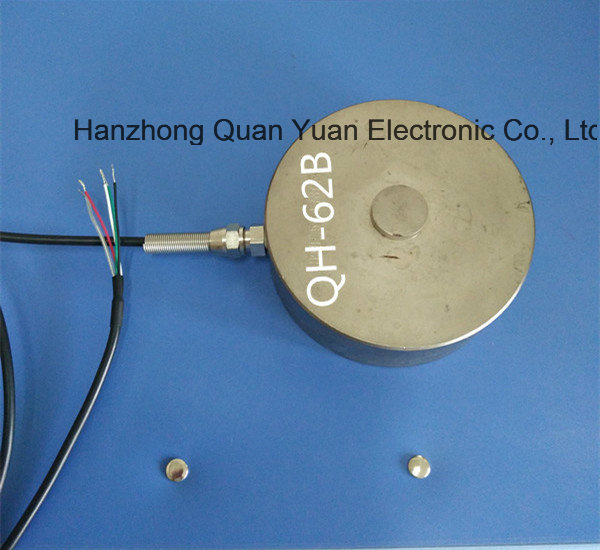

The Following is the same type for your reference.

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
